Maintenance 7

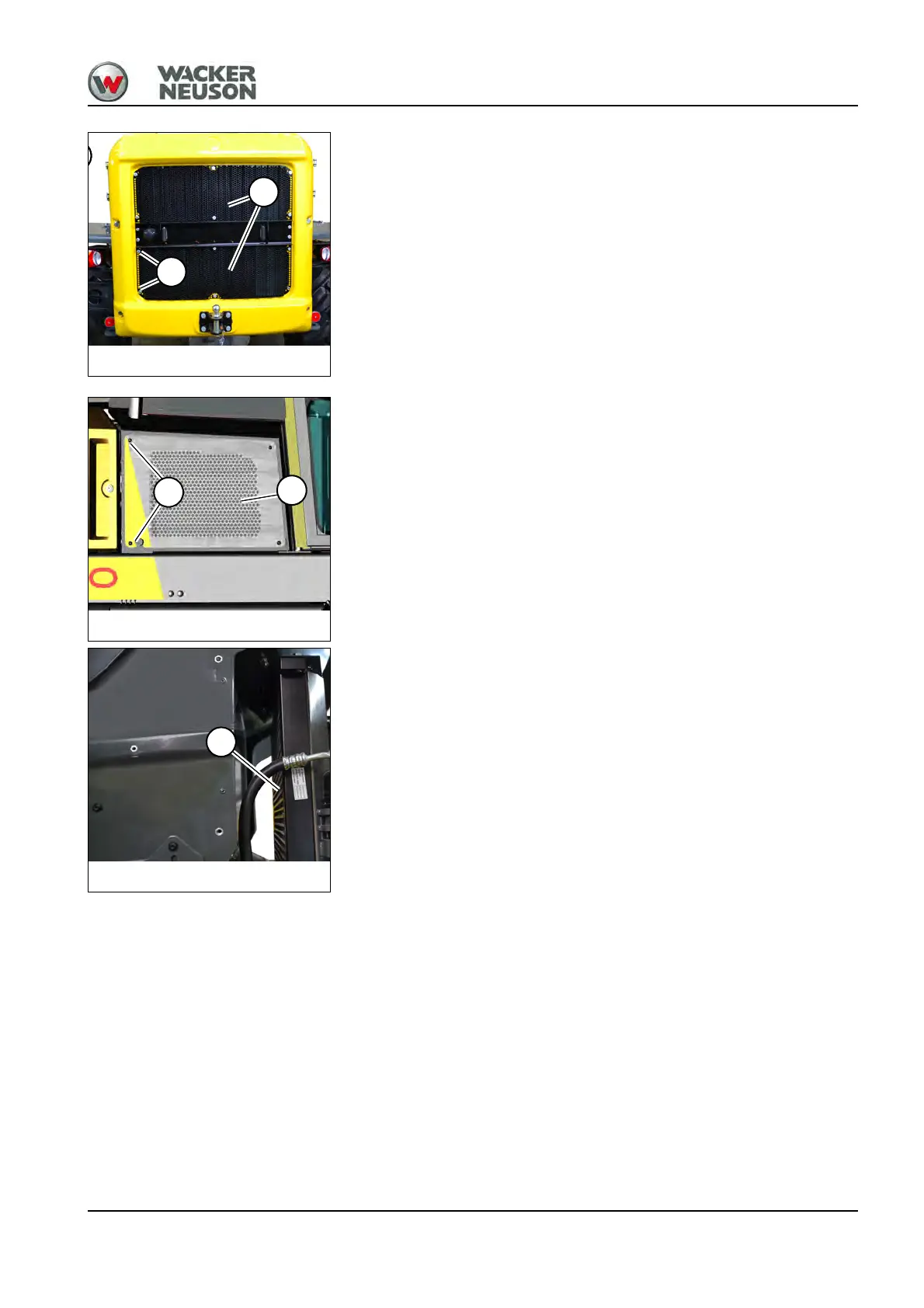

Water/hydraulic oil radiator, fuel cooler, charge-air cooler
The water/hydraulic oil radiator, the fuel cooler and the charge-air cooler
(option) are located behind fan grid A.
1. Stop and park the machine. Stop the engine – see “Preparing
lubrication” on page 7-8.
2. Remove dust and other foreign bodies from the fan grid with
compressed air.
3. In case of heavier dirt, remove the 12 screws B and fan grids A.
4. Carefully clean the radiator with unlubricated compressed air with a
max. 2 bar (29 psi).
Install fan grids A again and fasten them with 12 screws B.
Condenser (option)
The condenser is located behind cover C on the right.
1. Remove 4 screws D and cover C.
2. Open the maintenance flap on the right.
3. Blow compressed air from the inside to the outside to remove dust and
other foreign bodies from the fins of condenser E.
4. Close and lock the maintenance flap on the right.
5. Install cover C.
