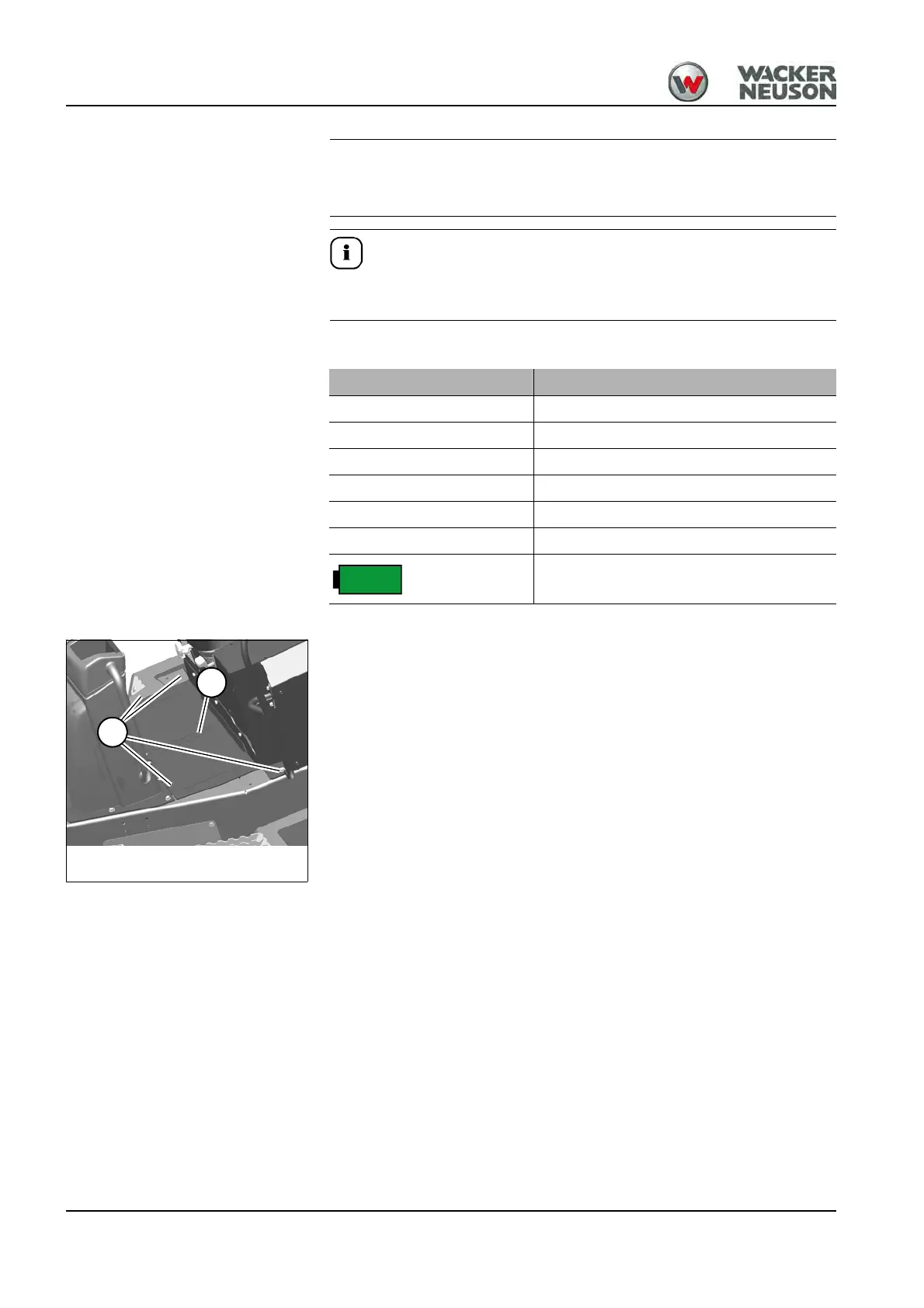

4-38 BA D18 us* 1.1 * D18i400.fm
4 Putting into operation
NOTICE
Damage to battery jumper cables when placing them near rotating parts.
Information
Use only authorized battery jumper cables which conform to national and
regional safety requirements.
Connections
1. Move vehicle Y close to machine X so that the length of the battery
jumper cables is sufficient.
2. Let the engine of vehicle Y run.
3. Remove rubber mat A.
4. Remove screws B.
5. Remove the base cover.
Designations/symbols Meaning
X Machine with empty battery
Y Vehicle with full battery
C Positive/machine X
D Positive/vehicle Y
E Negative/vehicle Y
F Negative/machine X
Full battery
Fig. 97
Fig. 97
A
B
