Operation 5
Hydraulic swivel unit brake:
Normal braking: release the control lever.
Maximum braking: press the control lever in the opposite direction until the
upper carriage is at a standstill.
ISO/SAE controls (option)
The standard equipment of the machine includes ISO controls. SAE
controls are available as an option. This results in a different control lever
operation
Accident hazard due to modified control mode!
Modified controls can cause incorrect operation, and serious injury or
death.
► Before starting work, check the selected control type.
► Always secure the wing nut on the reversing valve.
► Do not operate the machine with a defective wing nut. Contact a
Wacker Neuson service center.
The reversing valve is located at the left under the operator’s seat.

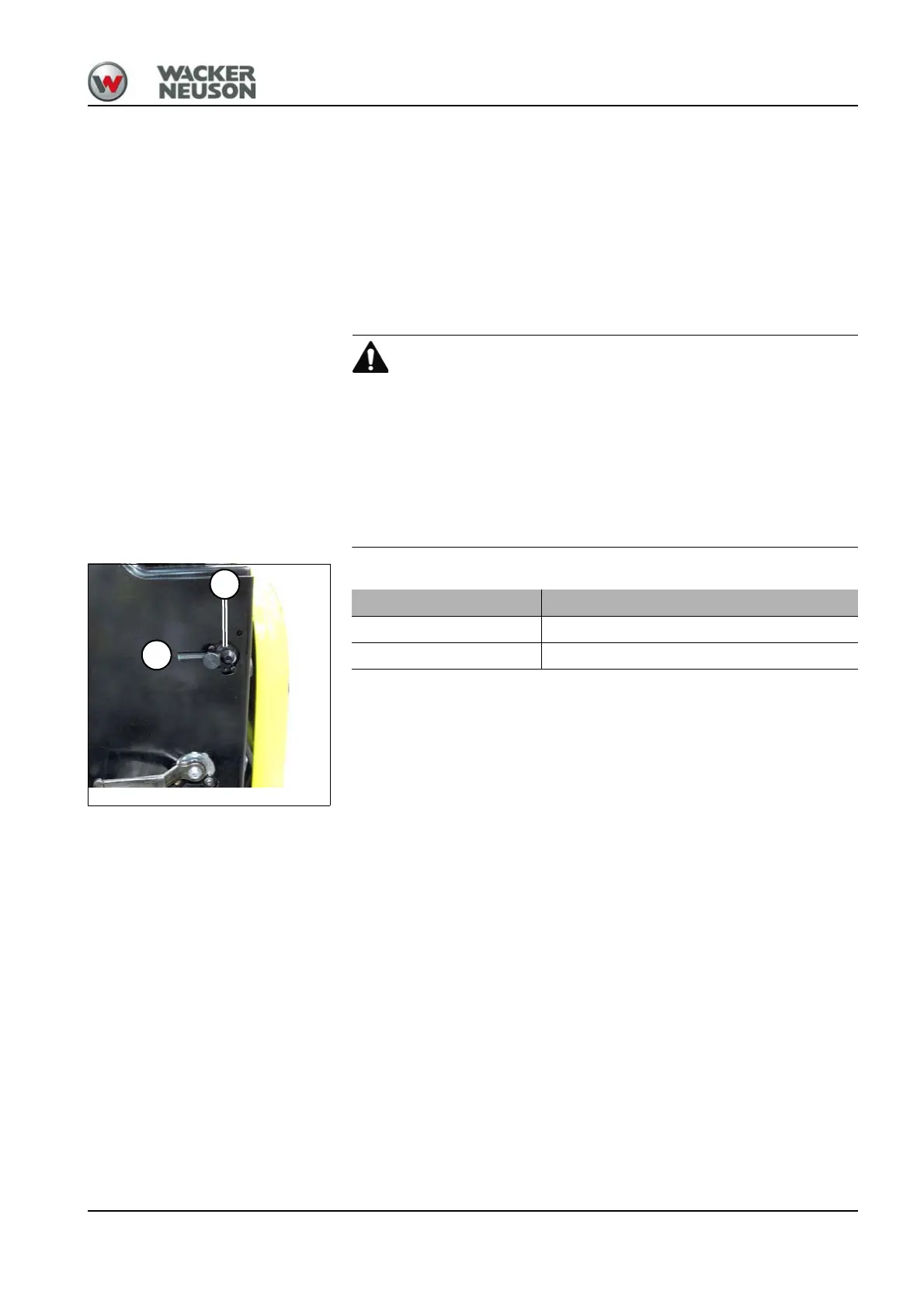

Wiring diagram Controls
A ISO controls
B SAE controls
