Foreword 1
Right/left/front/rear
These terms are used from the view of an operator in the cabin if the front
of the cabin faces toward the stabilizer blade A.
• 1: left
• 2: right
• 3: front
• 4: rear
Additional control circuits
Additional control circuits required for certain attachments.
• AUX I: auxiliary hydraulics (for example for hydraulic hammer or offset
bucket)
• AUX II: 3rd control circuit (for example for universal grab)
• AUX III: for example Powertilt
• AUX IV: hydraulic quickhitch (for example Easy Lock)
• AUX V: oscillating grab

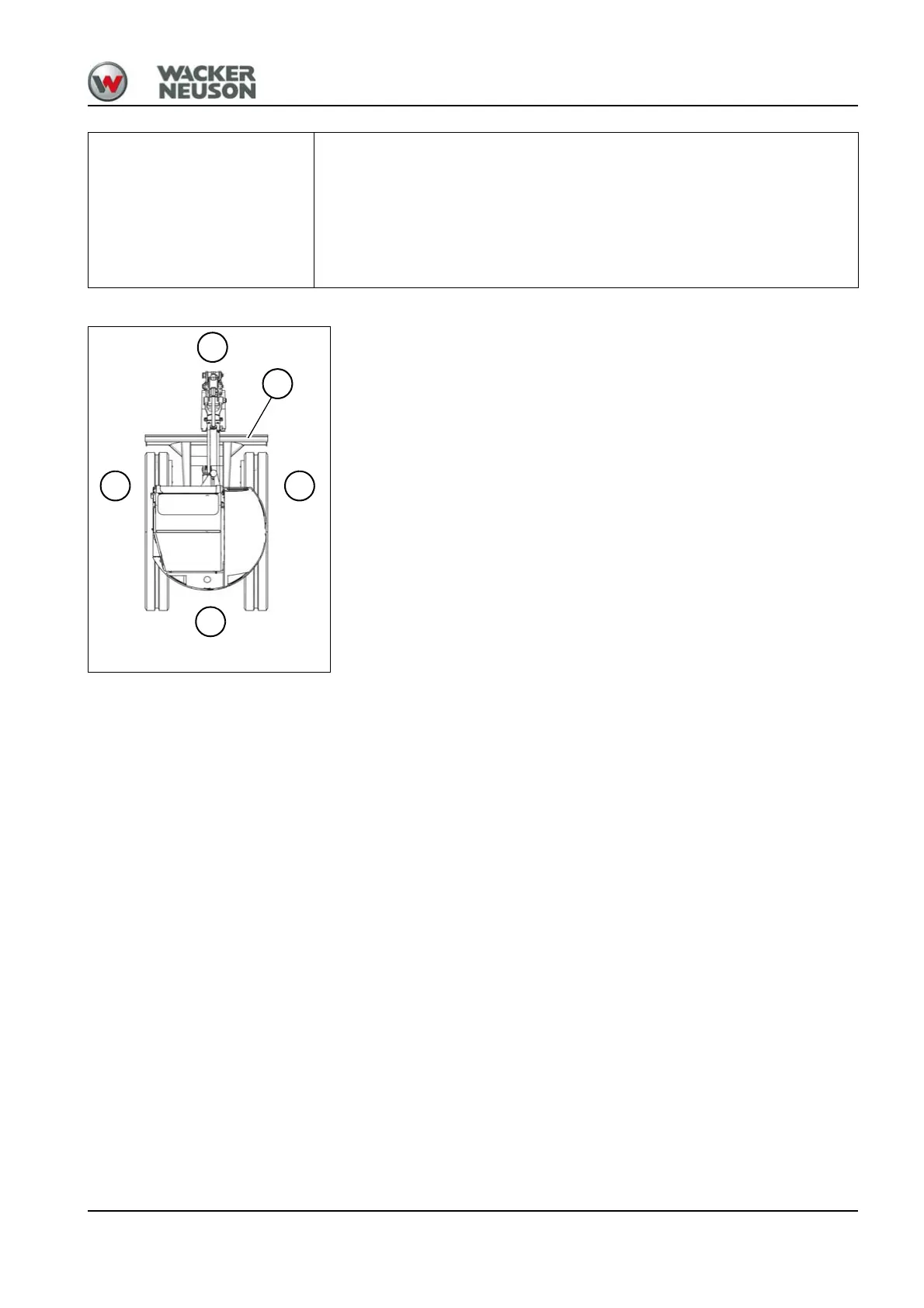

Fig. 1
4
21
3
A
