Wacker Neuson E13-01 User Manual

BA EZ17 en* 1.1 * ez17b510.fm 5-39
Operation 5
WARNING
Danger of crushing due to incorrect operation of the
hydraulic quickhitch system!
For system-specific reasons, the quickhitch can also be
operated with other hydraulic functions. This can cause serious
injury or death.
► Operate the hydraulic quickhitch only with the function Raise
stabilizer blade.

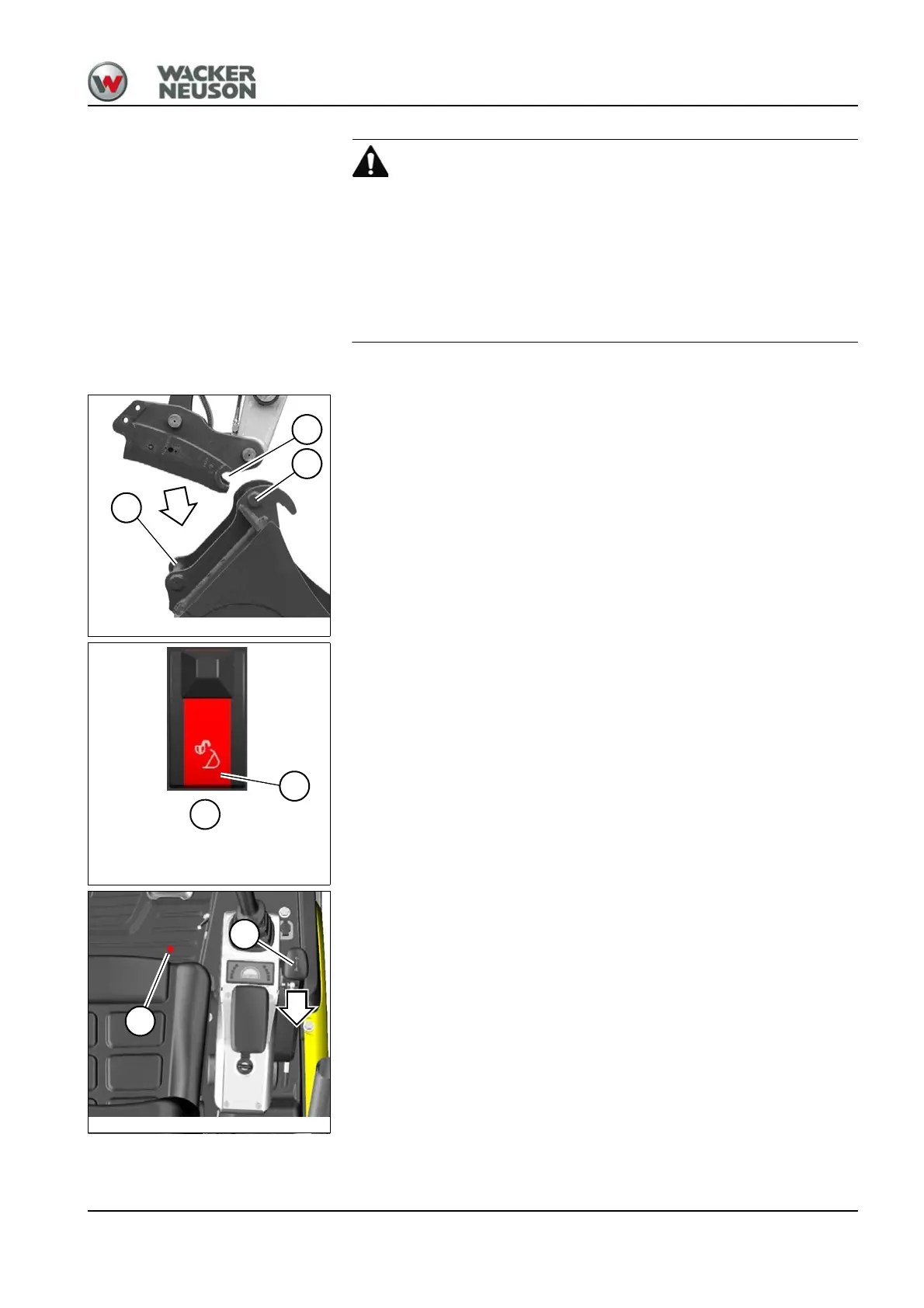

Picking up an attachment
1. Hook up the quick coupler system A in the bolts B of the attachment
receptacle.
2. Extend the bucket cylinder so that pin C of the attachment touches the
quickhitch.
3. Check whether the attachment touches the quick coupler system with
the bolt C.
4. Move the attachment inward completely.
5. Unlock switch D and press it to position 1.
➥ The quickhitch is enabled and the buzzer sounds.
6. Press and hold the foot-operated touch button E and at the same time
pull back the J dozer blade lever.
➥ The quickhitch opens.
Fig. 131
C
A
B
Fig. 132
1
D
Fig. 133
E
J
