BA EZ17 en* 1.1 * ez17t900.fm 9-5
Technical data 9

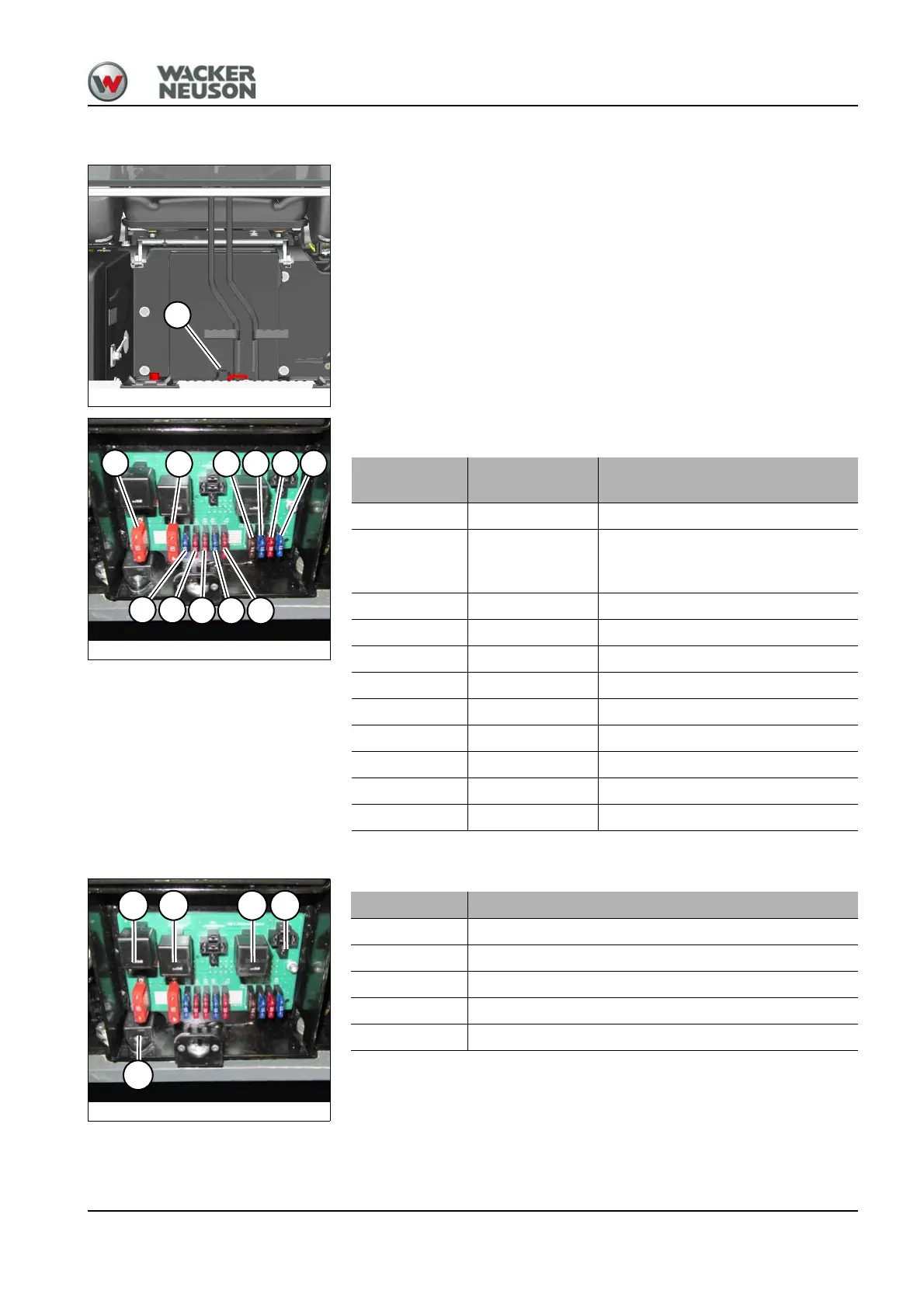

Fuses
The fuses and relay are located behind the battery cover, under the
operator's seat.
Remove the screw A and remove the battery cover.
Relays
Fig. 238
A
Fig. 239
F2
F1
F4F3 F7 F8
F5
F10
F9F6
F11
Fuses
Rated current
(A)
EZ17
F1 50 A Main fuse
F2 50 A
Main fuse, air-pressure sensor/per-
formance adaptation (Yanmar
3TNV80F-SSNS1)
F3 7.5 A Display, cutoff solenoid
F4 15 A Valves, horn
F5 10 A Proportional controls
F6 10 A Travel signal, overload
F7 10 A Boom, cab working lights
F8 15 A Cabin working lights
F9 15 A No function
F10 15 A Power outlet
F11 10 A No function
Fig. 240
K7
K8
K9 K58 K17
Relays EZ17
K7 Starting relay
K8 Cutoff solenoid time lag relay
K9 Cutoff solenoid (pull relay)
K17 Hydraulic quickhitch
K58 Speed range 2
