4 Putting into operation
Protective FOPS structure/small screen – category I (option)
Crushing hazard due to falling objects!
Falling objects cause serious injuries or death.
► Install a protective FOPS structure for machine operation in areas with
danger of falling objects.
The protective FOPS structure corresponds to category I according to ISO
3449:1992
► The machine owner must ensure that the hazard situation is evaluated
and that the national regulations are observed.
► The machine owner must ensure that only work is performed that does
not require any higher protection.
► Accidents cannot be fully avoided despite equipping a machine with
protective structures.

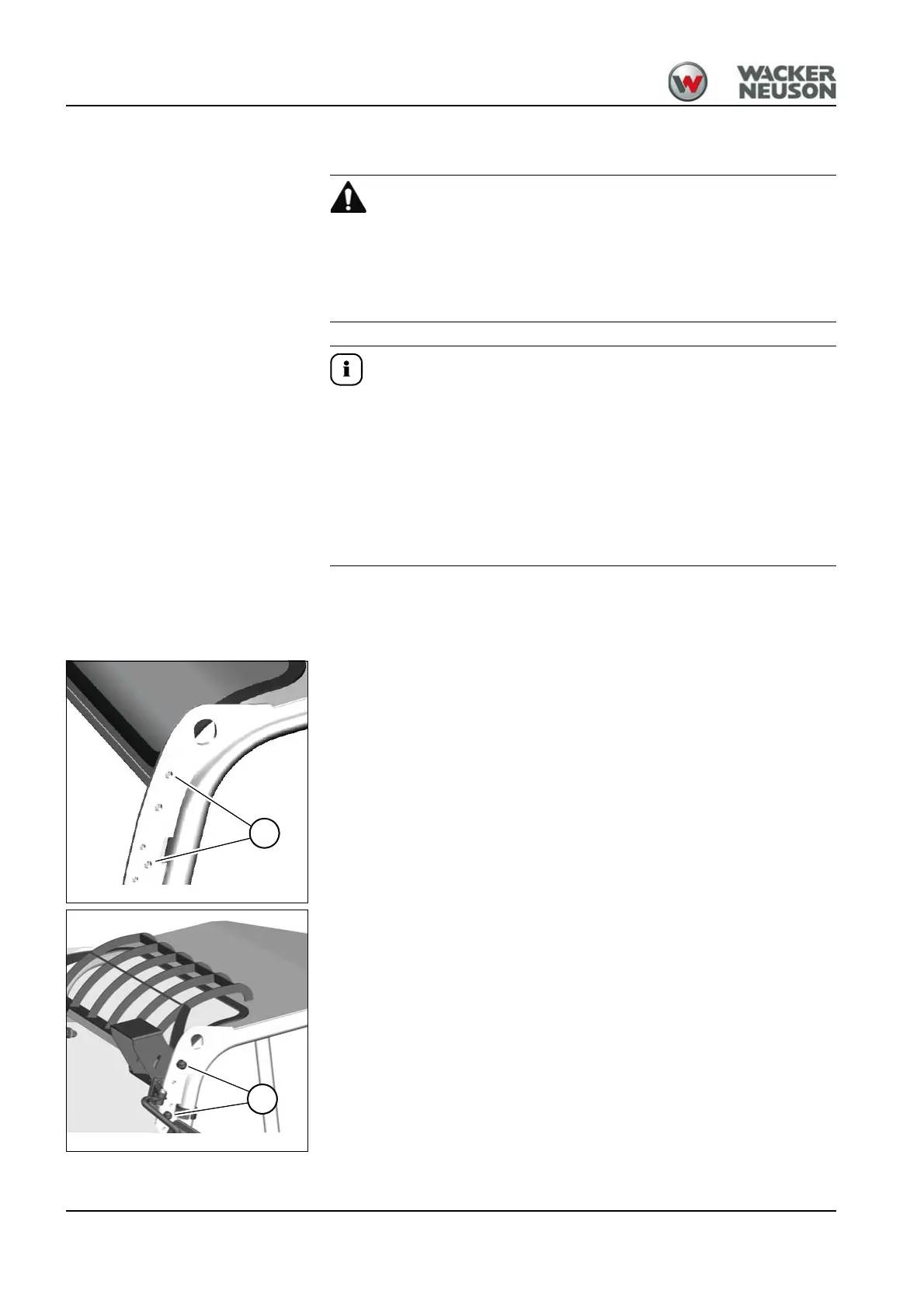

Assembly
1. Stop and park the machine. Stop the engine. See “Preparing
lubrication”.
2. Remove the headlights and mirror
3. A minimum 2 persons are required for installing/removing.
4. Mounting point for protective structure: A
5. Install lock nuts and screws on the left and right in positions B and
tighten them to 110 Nm (81 ft.lbs.) .
