4 Putting into operation
1. Move vehicle Y close to machine X so that the length of the battery
jumper cables is sufficient.
2. Stop the engine of vehicle Y.
3. Engine covers of both vehicles are open.
4. Remove the red cover E.
5. Connect the battery jumper cables in the following order: A – B – C –
D.
6. Start the engine of vehicle Y.
7. Wait five minutes for the empty battery to be charged a little.
8. Start the engine of machine X.
9. Switch on the boom light of vehicle X in order to avoid voltage peaks
and to protect the electronic system.
10.Disconnect the battery jumper cables in the following sequence: D – C
– B – A.

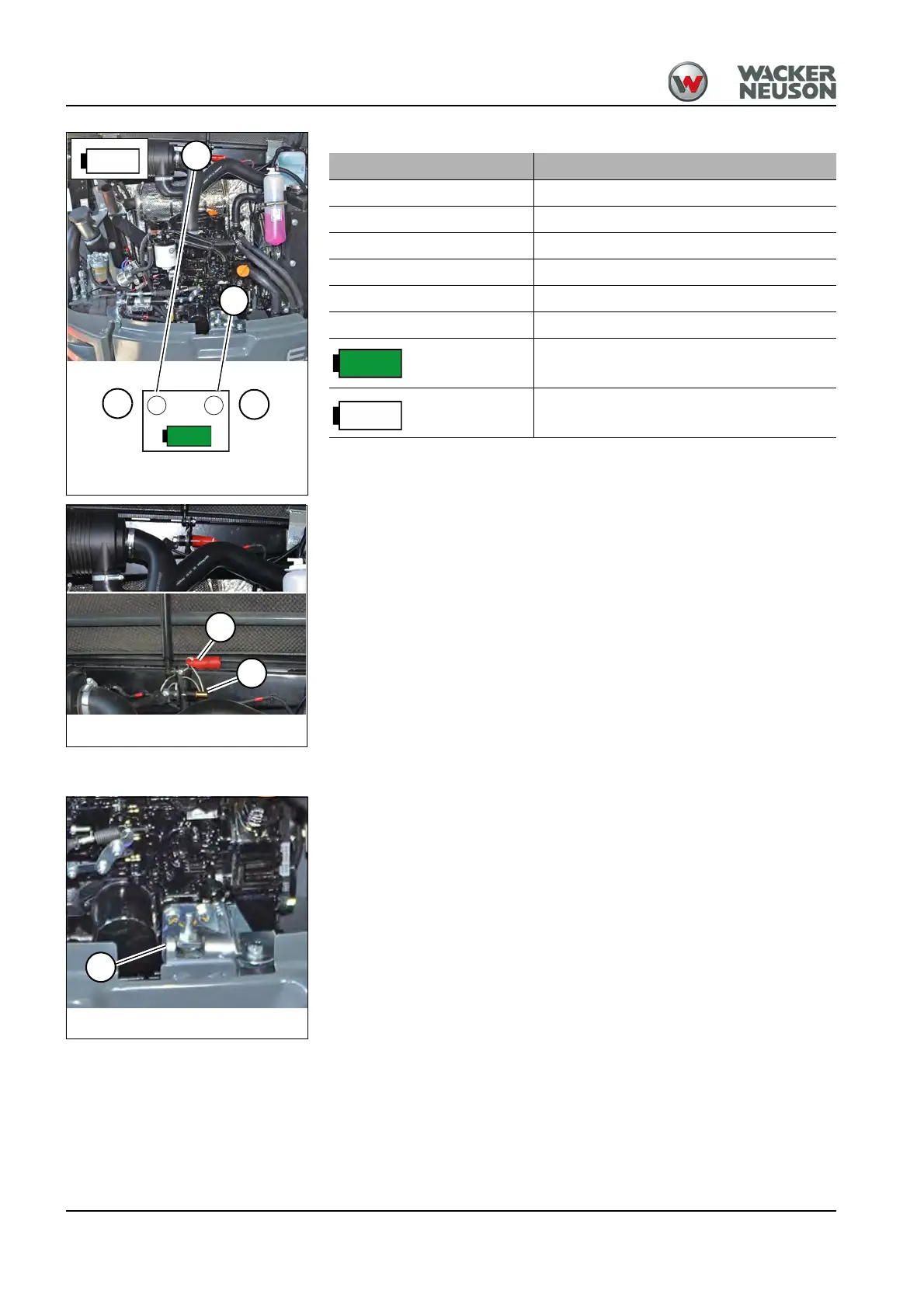

Fig. 117
B
C
_
+
A
D
Designations/symbols Meaning
X Machine with empty battery
Y Vehicle with full battery
A Positive/vehicle X
B Positive/vehicle Y
C Negative/vehicle Y
D Negative/vehicle X
Full battery
Dead battery
Fig. 118
A
E
Fig. 119
D
