Operation 5
ISO/SAE controls (option)
The standard equipment of the vehicle includes ISO controls. SAE
controls are available as an option. This results in a different control lever
operation.
Accident hazard due to modified control mode!
Modified controls can cause incorrect operation, and serious injury or
death.
► Before starting work, check the selected control type.
► Secure the wing nut on the changeover lever of the directional valve.
► Do not operate the machine with a defective wing nut. Contact a
Wacker Neuson service center.
The changeover valve is located at the left under the operator’s seat.

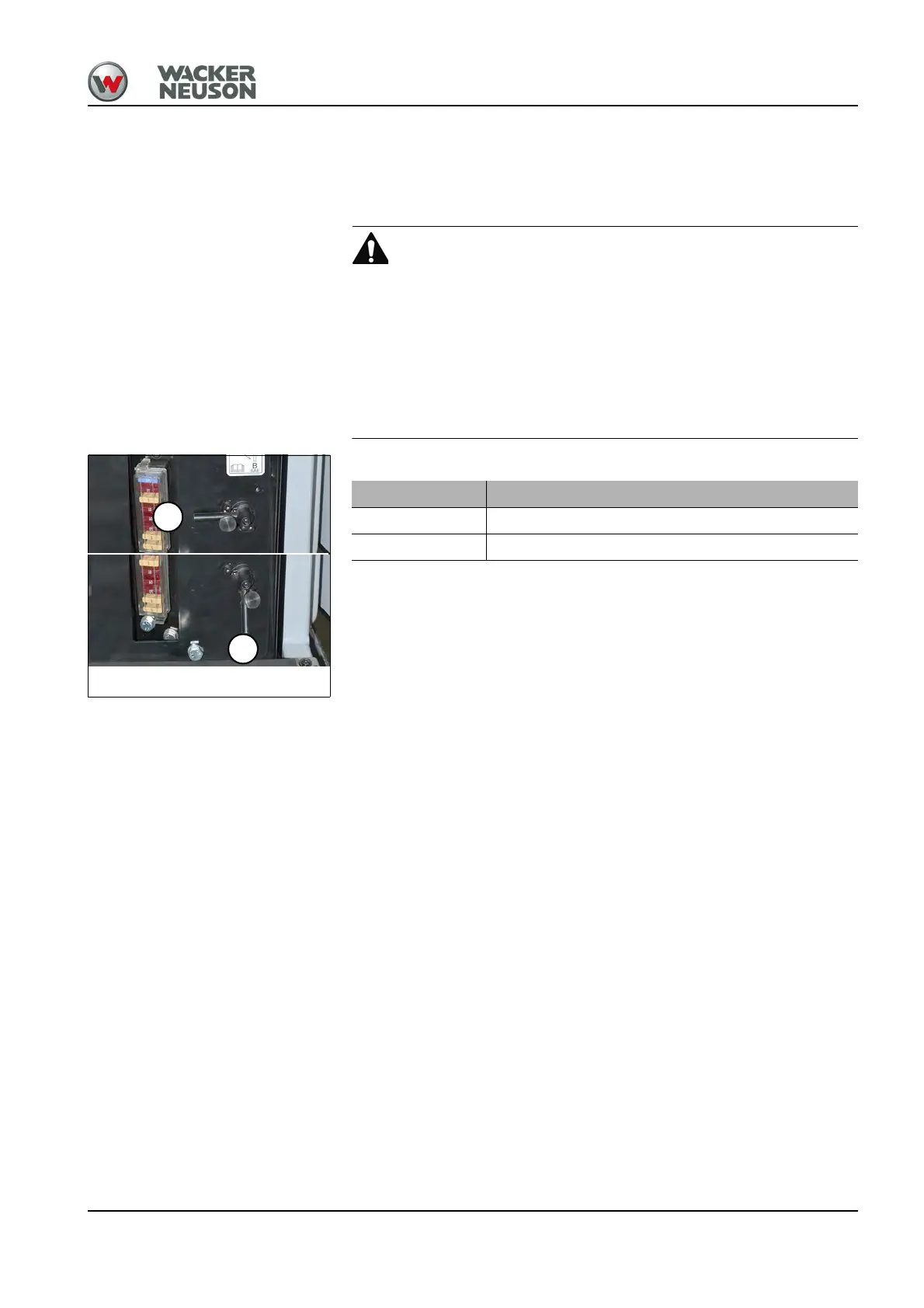

Wiring diagram Controls
A ISO controls
B SAE controls
