5 Operation
Rotating the upper carriage
Crushing hazard due to rotating range of vehicle!
Persons in the rotation range of the vehicle can be seriously injured or
killed.
► Do not allow anyone to stay in the danger zone.
Possible damage to vehicle when working in the immediate vicinity of
walls, parts of buildings or other obstacles.
► Ensure that there are no obstacles is in the danger zone.
As long as the hydraulic oil has not reached its operating temperature, the
upper carriage can continue moving after releasing the control lever.
Operate the control lever carefully in a cold operating state.

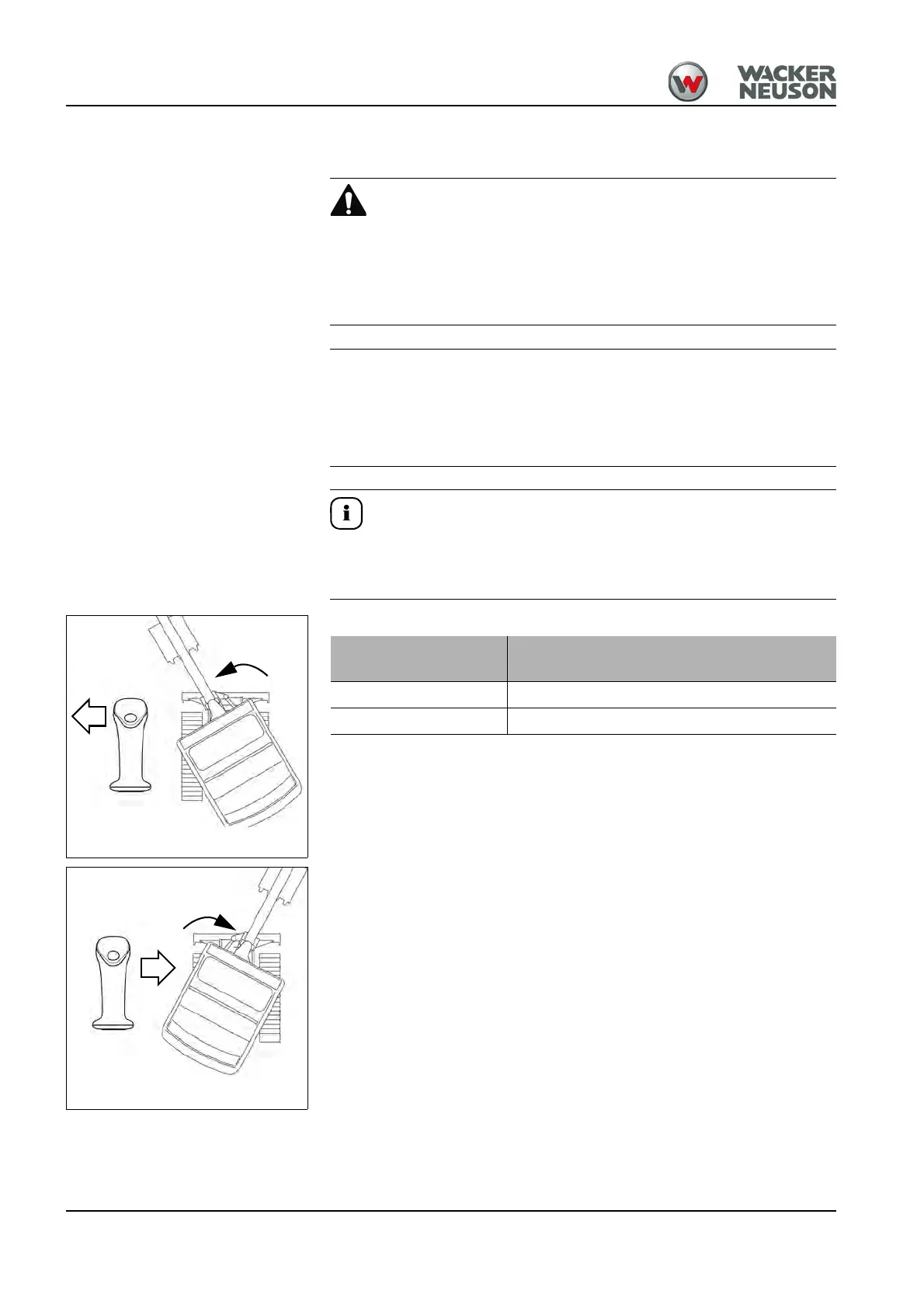

Fig. 150 (symbolic representation)
Rotating the upper
carriage
Position
To the left Push the control lever on the left to the left
To the right Push the control lever on the left to the right
