5 Operation
Dozer blade (swiveling dozer blade option)
Danger of accident from activated floating position (option)!
The vehicle loses stability during excavation due to the enabled floating
position. This can cause serious injury or death.
► Disable the floating position during excavation work.
Precise grading work can be carried out in the floating position.
Swiveling the boom
Fold the pedal cover forward.
Stabilizer blade Position
Raise Pull lever A backward
Lower Push lever A forward
Swivel left Push lever A tot he left
Swivel right Push lever A to the right
Enable the floating
position
Push lever A all the way forward through the
resistance. The lever must lock into place
Disable the floating
position
Push lever A into the neutral position all the way
forward through the resistance

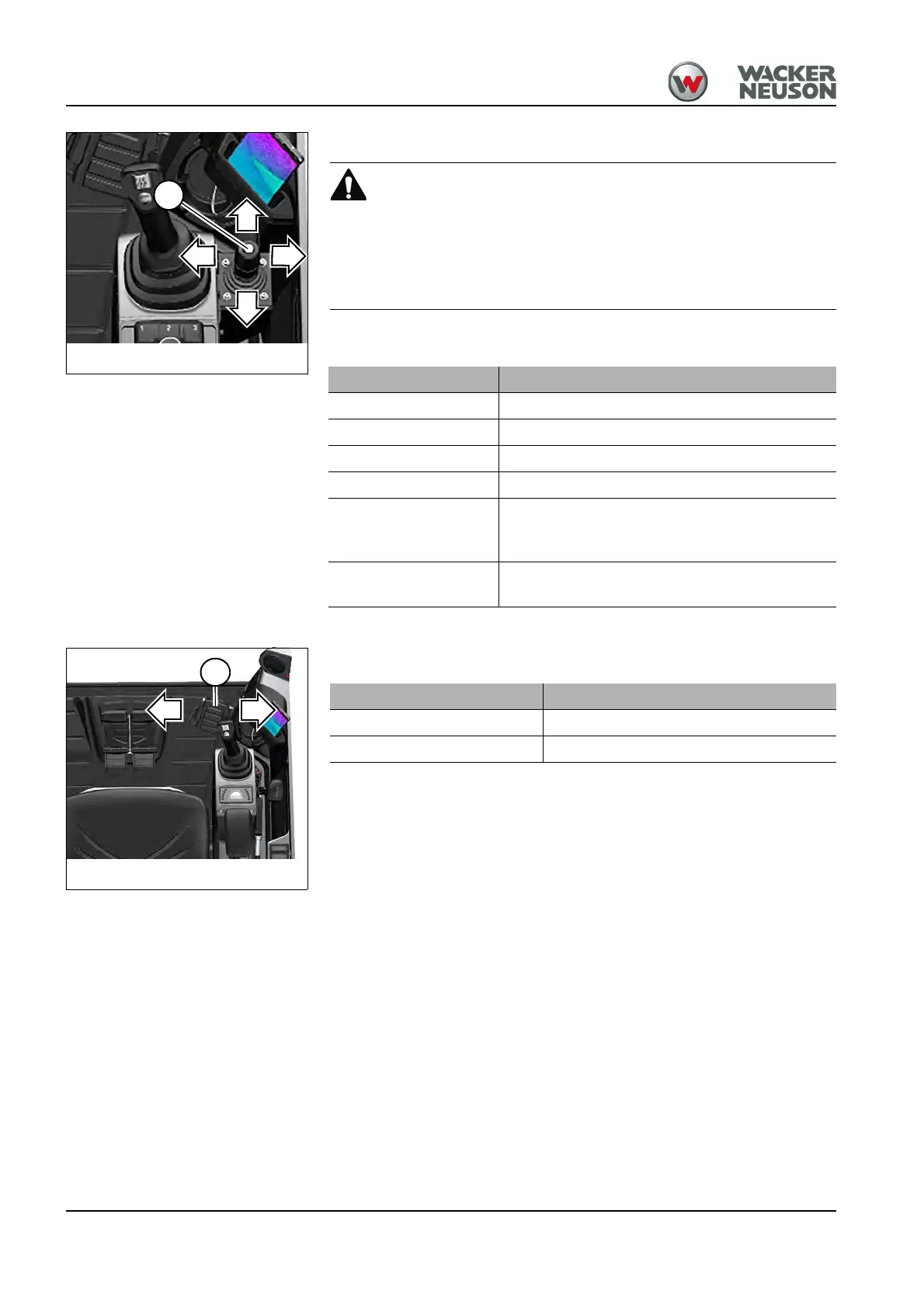

Fig. 159 Swiveling the boom
A
Boom Operation
Swivel to the left Actuate pedal A to the left
Swivel to the right Actuate pedal A to the right
