Operation 5
Proportional control tier III
The proportional controls allow to continuously adjust the oil flow for the
attachment.
Additional control circuits
AUX I
1. Turn the rotary switch on the right control lever base to the required
position.
AUX II and AUX III (option)
1. Turn the rotary switch on the control lever base on the left to the
required position.
The auxiliary hydraulics system is operated with the left joystick.

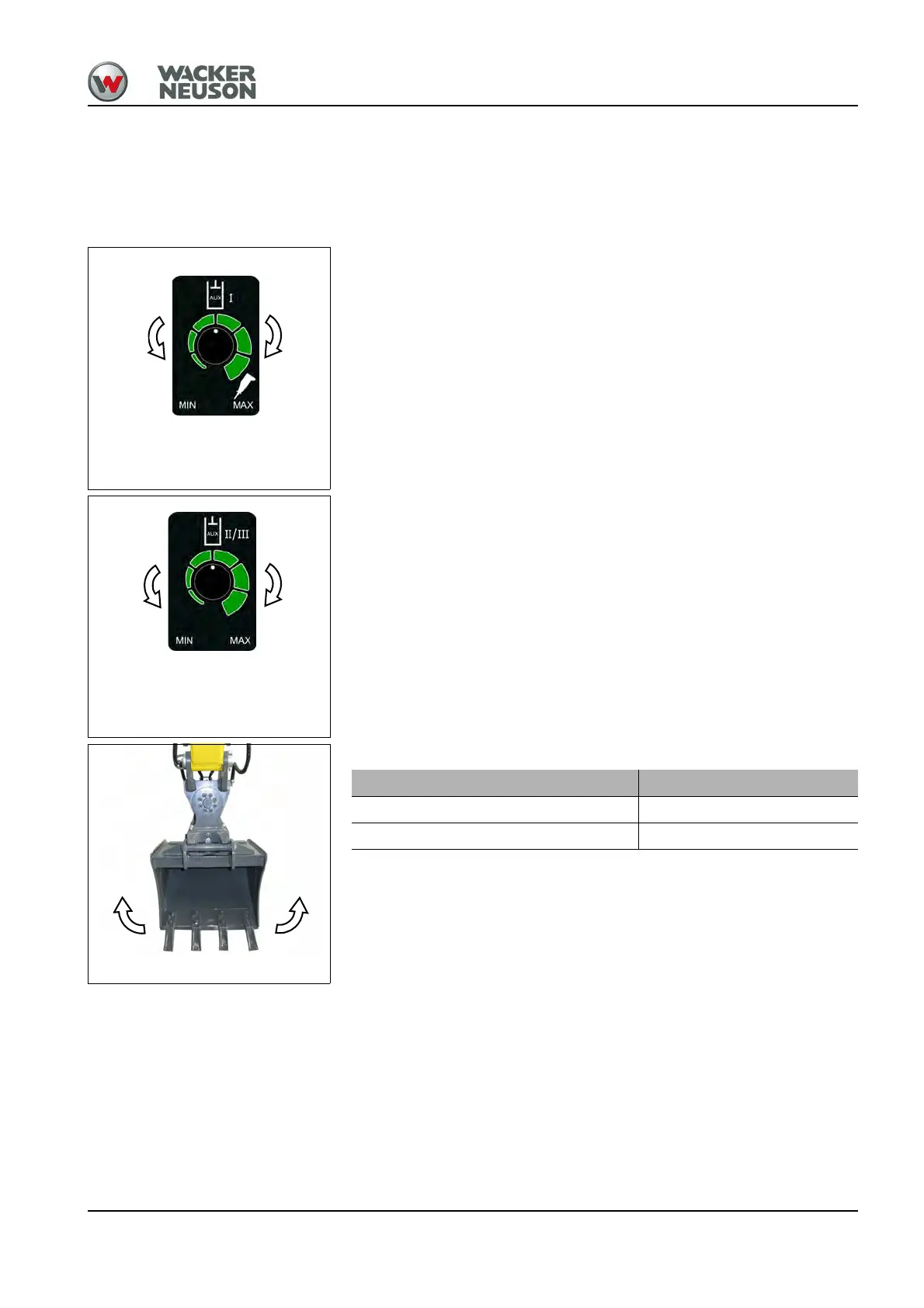

Fig. 167
Fig. 168
Fig. 169 (symbolic representation)
Rotation to
the left
Rotation to
the right
Powertilt Position
Rotation to the left Press switch B to the left
Rotation to the right Press switch B to the right
