BA E16 en* 1.0 * E16_10_510.fm 5-43
Operation 5
Danger of crushing due to incorrect operation of the
hydraulic quickhitch system!
For system-specific reasons, the quickhitch can also be
operated with other hydraulic functions. This can cause serious
injury or death.
► Operate the hydraulic quickhitch only with the function Raise
stabilizer blade.

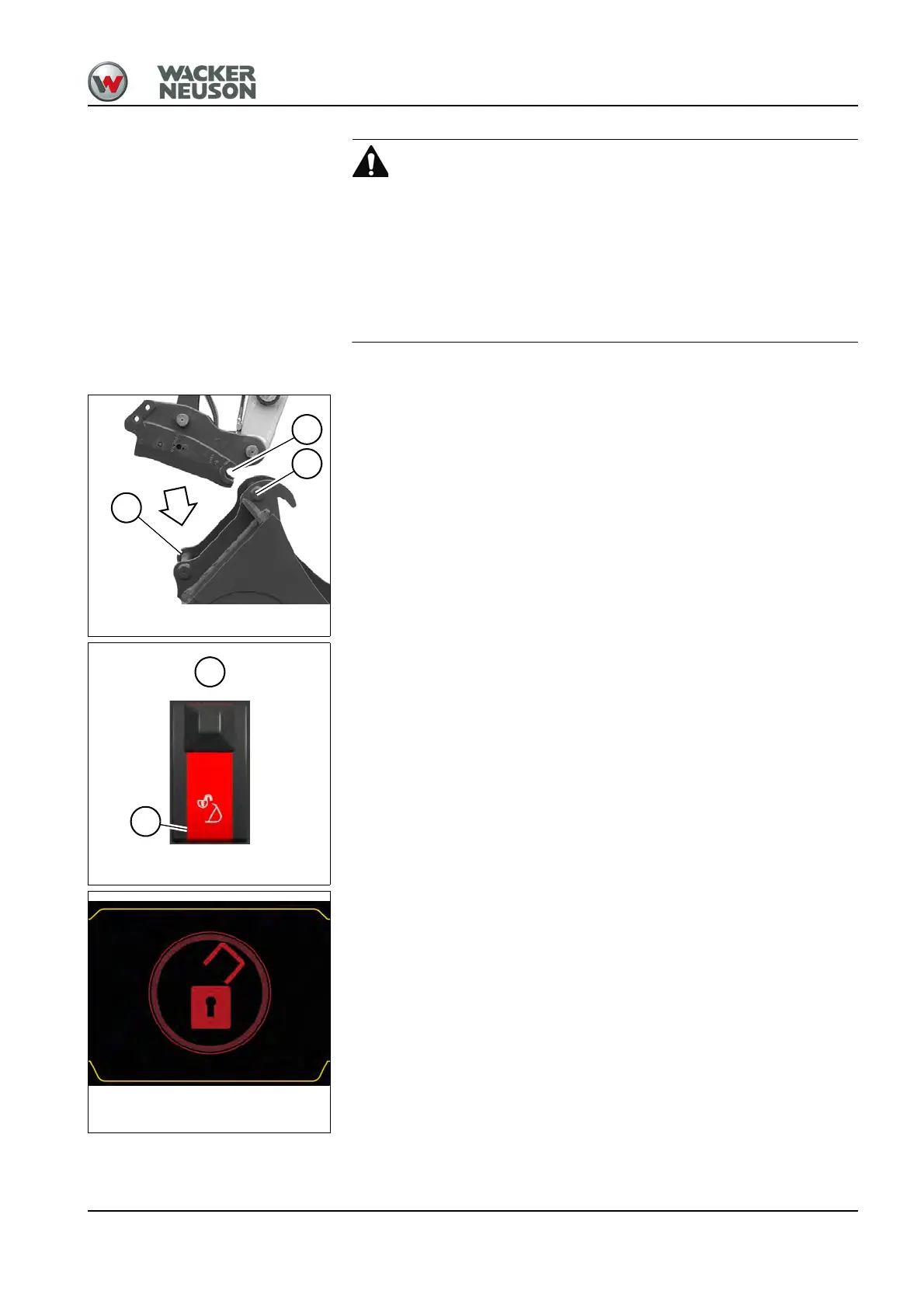

Picking up an attachment
1. Hook up the quick coupler system A in the bolts B of the attachment
receptacle.
2. Extend the bucket cylinder so that pin C of the attachment touches the
quickhitch.
3. Check whether the attachment touches the quick coupler system with
the bolt C.
4. Move the attachment inward completely.
5. Unlock switch D and press it to position 1.
➥ The quickhitch is enabled and the buzzer sounds.
Tier IV: The symbol Hydraulic quickhitch enabled appears and the
buzzer sounds.
