BA E16 en* 1.0 * E16_10_510.fm 5-61
Operation 5
Re-equipping
Removing
1. Lower the bucket to level ground with the flat side facing downward.
2. Stop the vehicle, stop the engine – see chapter “ Preparing lubrication”
on page 7-9.
3. Remove linch pins A.
4. First remove pin B, and then pin C. Carefully expel pins that are stuck
with a hammer and a brass punch.
If pin C is stuck:
1. Start the engine.
2. Slightly raise and lower the boom to take the load off the pin.
3. Stop and park the vehicle. Stop the engine. See “Preparing
lubrication”.
4. Raise the control lever base.
5. Remove the starting key and carry it with you.
Place the bucket only with minimum pressure on the ground as you
remove the pins. The higher the pressure on the ground, the higher the
resistance and the more difficult it is to remove the pins.
Mount
1. Install a bucket only if it is positioned on level ground with the flat side
facing downward.
2. Stop the vehicle, stop the engine – see chapter “ Preparing lubrication”
on page 7-9.
3. Apply grease to the pins and articulations before inserting them.
4. Start the engine.
5. Straighten the shovel arm so that bores D and E are flush.
6. Stop the engine. Raise the control lever base.
7. Insert pin F.
8. Actuate the bucket cylinder until bores H and I are flush.
9. Stop the engine. Raise the control lever base.
10.Insert pin J.
11.Install linch pins K.

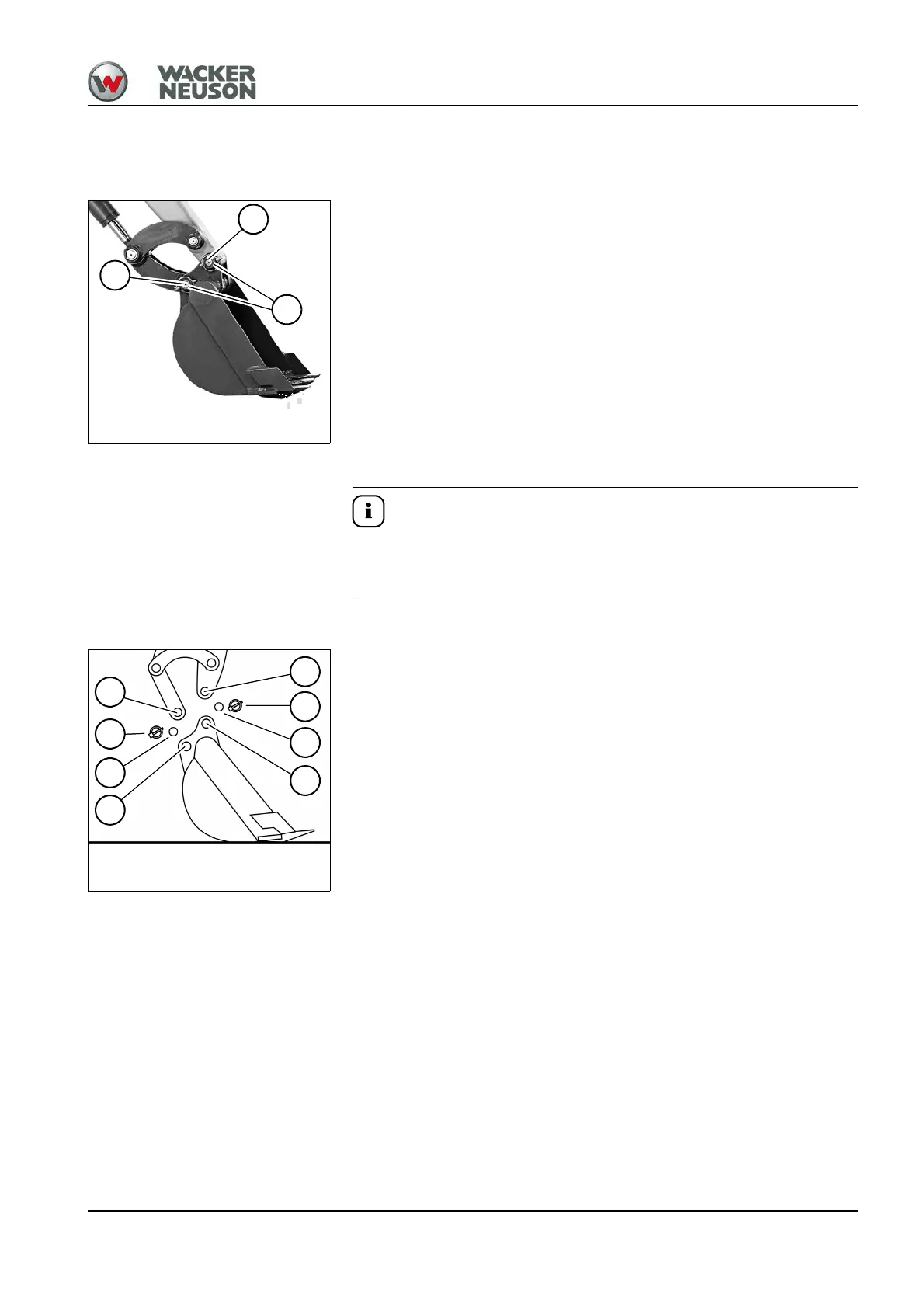

Fig. 225 (symbolic representation)
A
C
B
Fig. 226 (symbolic representation)
D
K
F
E
H
I
Y
K
