BA E16 en* 1.0 * E16_10_700.fm 7-15
Maintenance 7

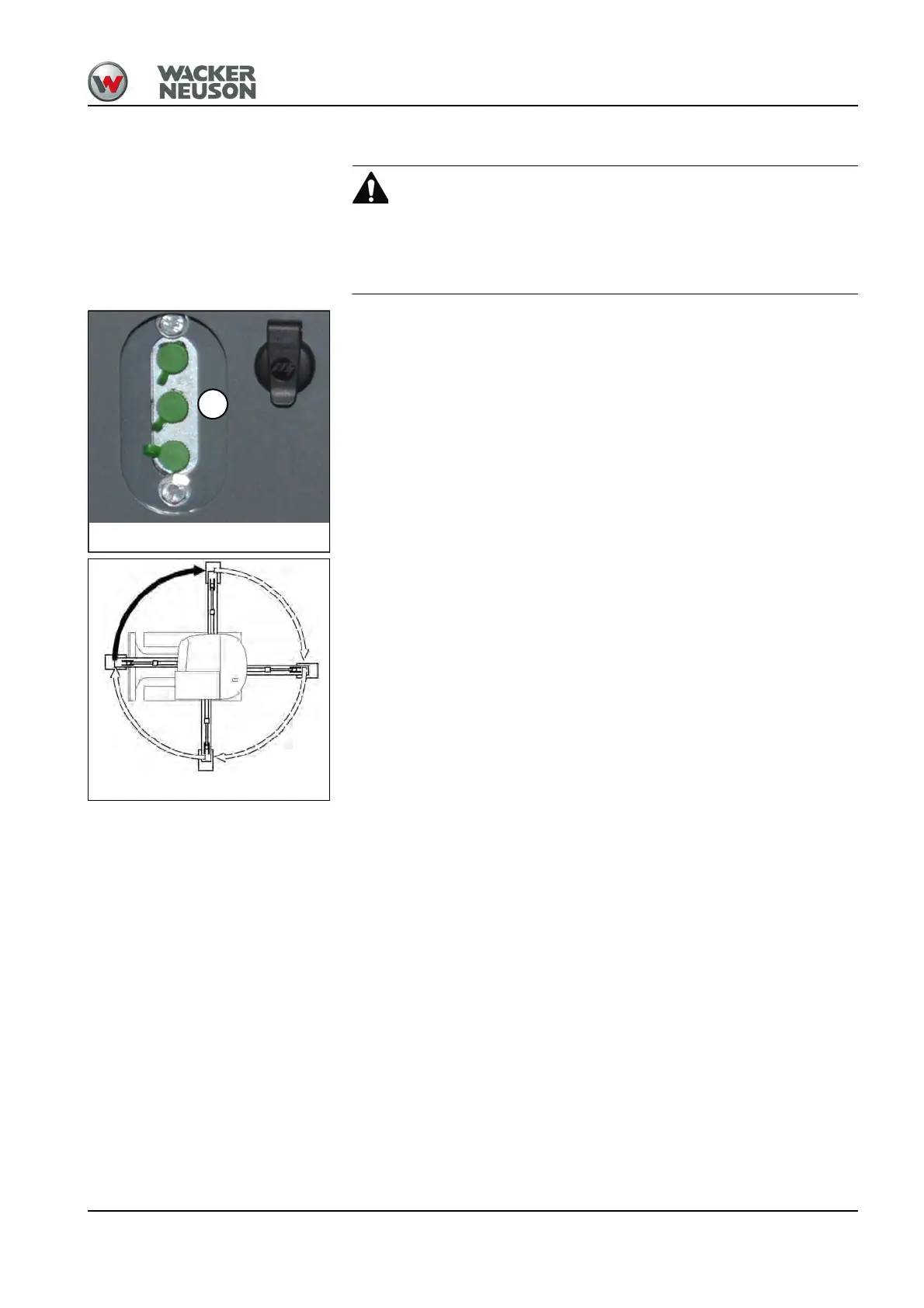

Teeth of live ring
Crushing hazard during lubrication!
Serious crushing hazard causing death or serious injury.
► No one must be in the danger zone during upper carriage rotation.
The lubrication points are located on the left side of the chassis.
1. Lower the stabilizer blade to the ground.
2. Stop the engine, remove the starting key and carry it with you.
3. Apply grease to lubrication point B with five strokes of the grease gun.
4. Start the engine, raise the boom and the stabilizer blade.
5. Rotate the upper carriage by 90°.
6. Repeat steps 1 – 5 three times until the upper carriage is back in its
initial position.
