BA E16 en* 1.0 * E16_10_700.fm 7-21
Maintenance 7

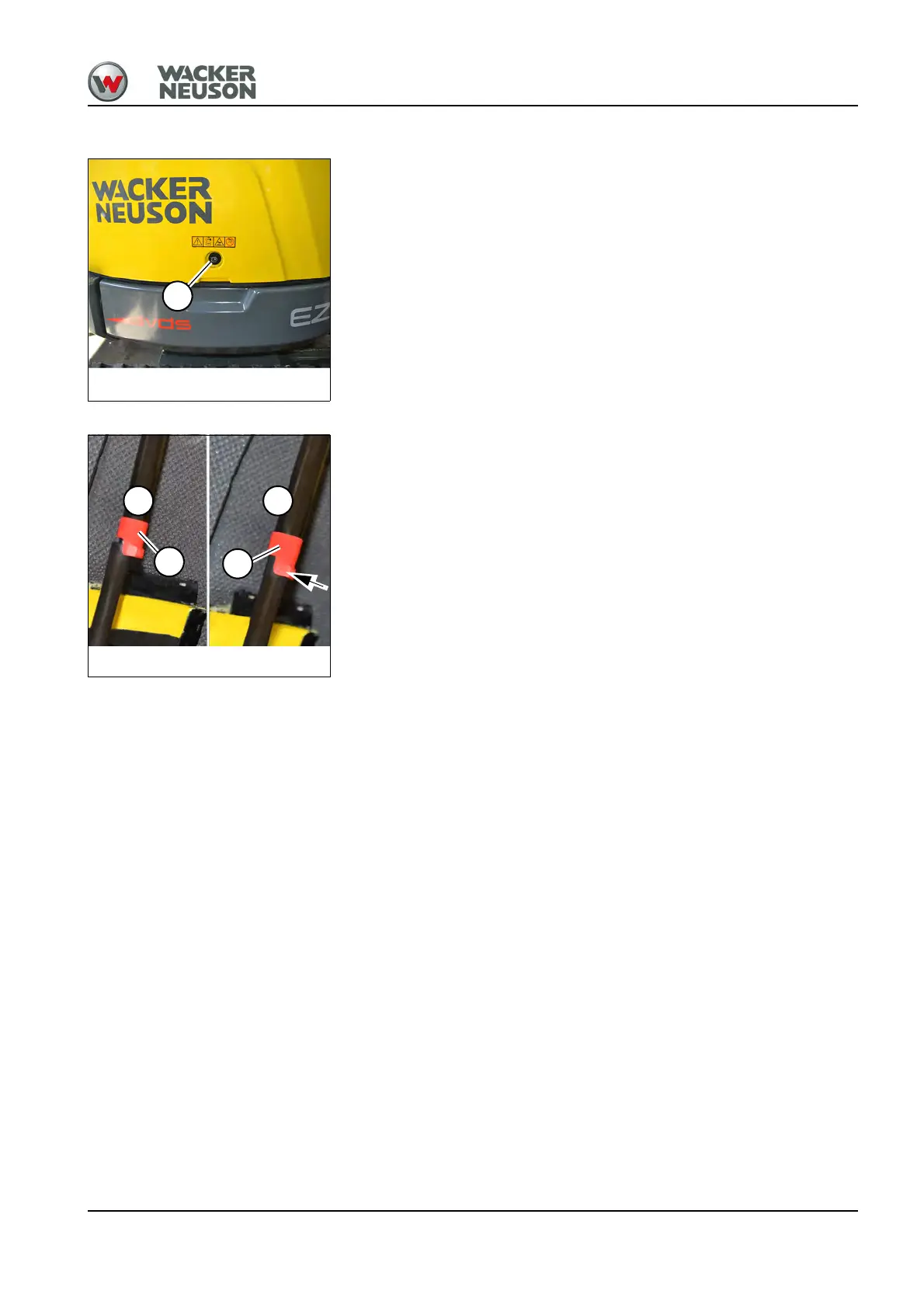

Opening the engine cover
1. Stop the vehicle, stop the engine – see chapter “ Preparing lubrication”
on page 7-9.
2. Turn the starting key in lock A anticlockwise.
3. Press lock A.
The engine cover is supported by a gas strut with lock B (item 1).
Close the engine cover
1. Release lock B by applying slight pressure (position 2).
2. Press down the engine cover.
3. Turn the starting key in lock A clockwise.
Fuse boxes
– see chapter “9.8 Electrical system” on page 9-3
Fig. 273
A
Fig. 274
1 2
B
B
