Wacker Neuson E16-02

BA E16 en* 1.0 * E16_10_300.fm 3-17
Introduction 3

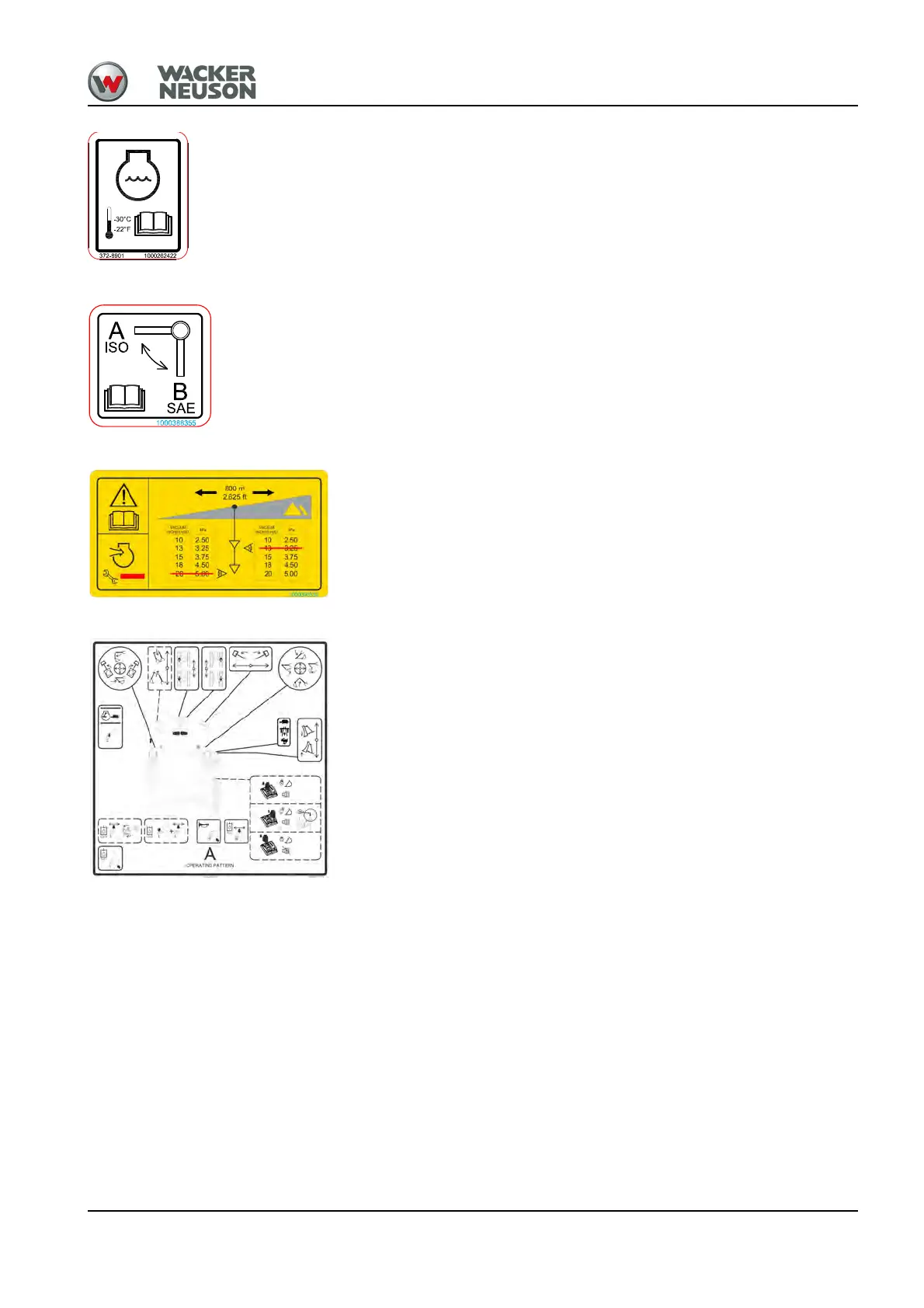

Meaning
Coolant
Position
For the radiator
Meaning
ISO/SAE change-over switch
Position
At the left under the operator seat
Meaning
Air filter dirt indicator (only tier IV)
Position
For the air filter
Meaning
Functional overview (ISO controls)
Check the selected control mode before starting the vehicle.
Position
On the roof window
Fig. 37
Fig. 38
Fig. 39
Fig. 40
