3-16 BA E16 en* 1.0 * E16_10_300.fm
3 Introduction
Meaning

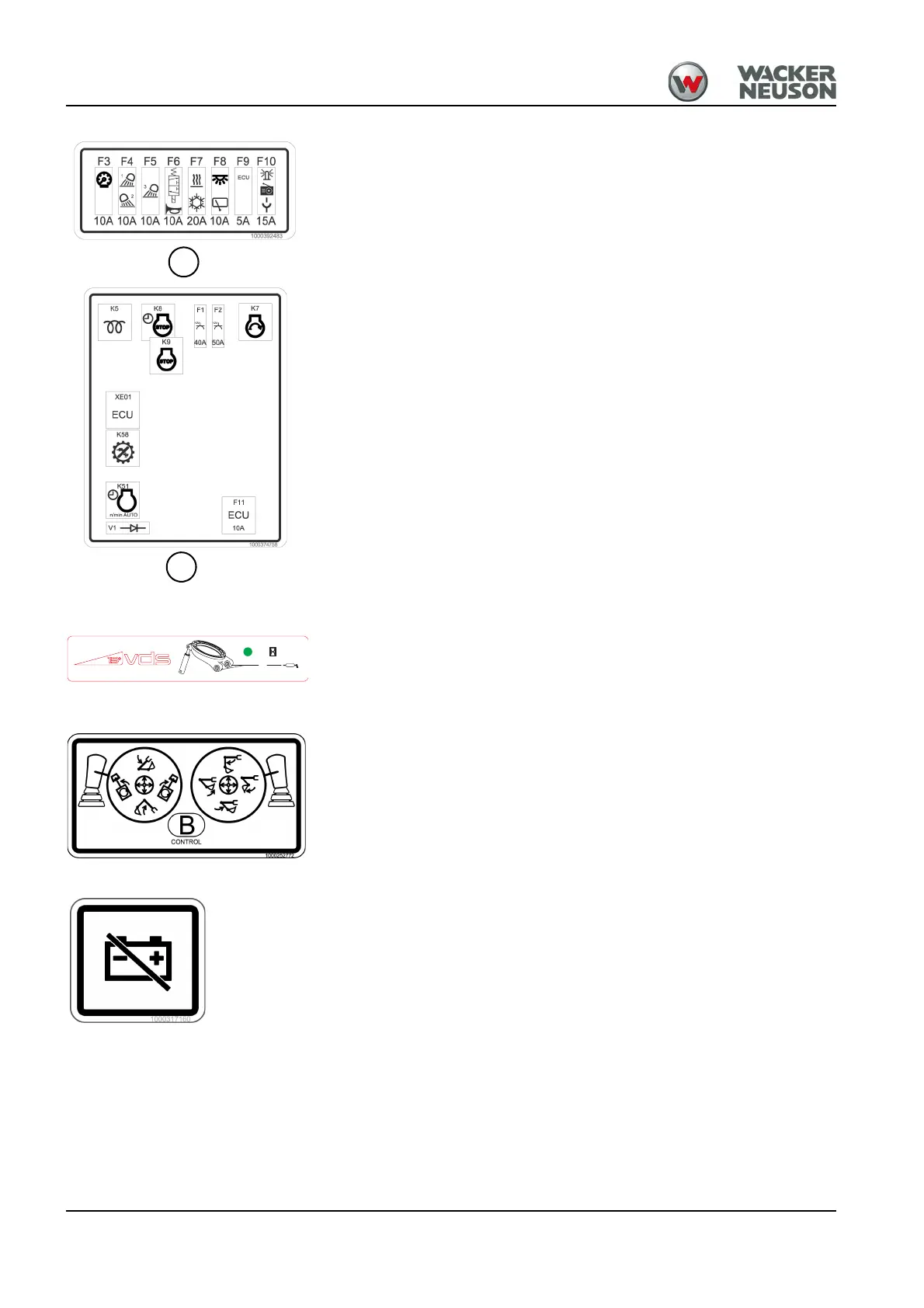

Cabin relays and fuses (A)
Engine compartment relays and fuses (B)
Position
A: on the outside of the fuse box cover
B: At the main fuse box in the engine compartment
Meaning
Maintenance of VDS
Position
On the roof window
Meaning (option)
Operating procedures differing from the ISO controls if the SAE controls
are set.
Position
On the roof window on the right
Meaning
Battery master switch
Position
At battery master switch
Fig. 33 (symbolic representation)
B
A
Fig. 34
Fig. 35
Fig. 36
