4 Putting into operation
Assembly
1. Stop and park the vehicle. Stop the engine – see chapter “ Preparing
lubrication” on page 7-9.
K: mounting points top left and right.
2. Install screws L and lock nuts M and tighten to 110 Nm (81 ft.lbs.).
P: mounting points bottom left and right.
3. Install screws Q and tighten to 110 Nm (81 ft.lbs.).
4. Put caps on all screws and nuts.

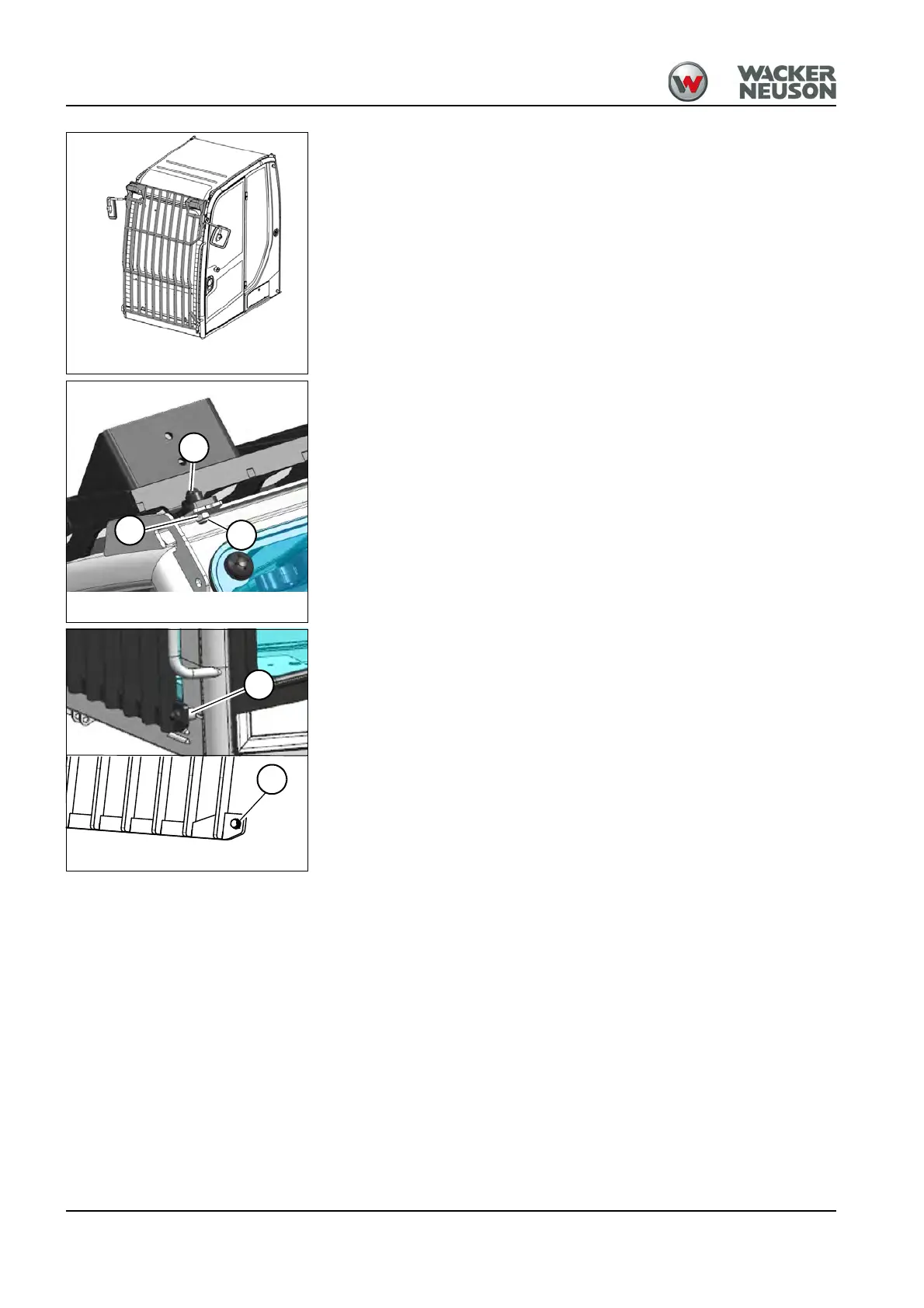

Fig. 95 (symbolic representation)
Fig. 96
K
L
M
Fig. 97
P
Q
