Putting into operation 4
Installing the shatter protection
At least two people are required for the assembly or disassembly.
Preparations – see chapter “ Parking the machine” on page 5-12
1. Install the mounting angle A with screws B on the shatter protection C.
2. Install the shatter protection with screws D to the frame.
Information
Torque for screws and nuts: 25 Nm (18 ft.lbs)
Removing the shatter protection
1. Loosen screws D and remove shatter protection.
2. Install the screws D on the frame to prevent the entry of moisture.
3. Securely store the shatter protection.

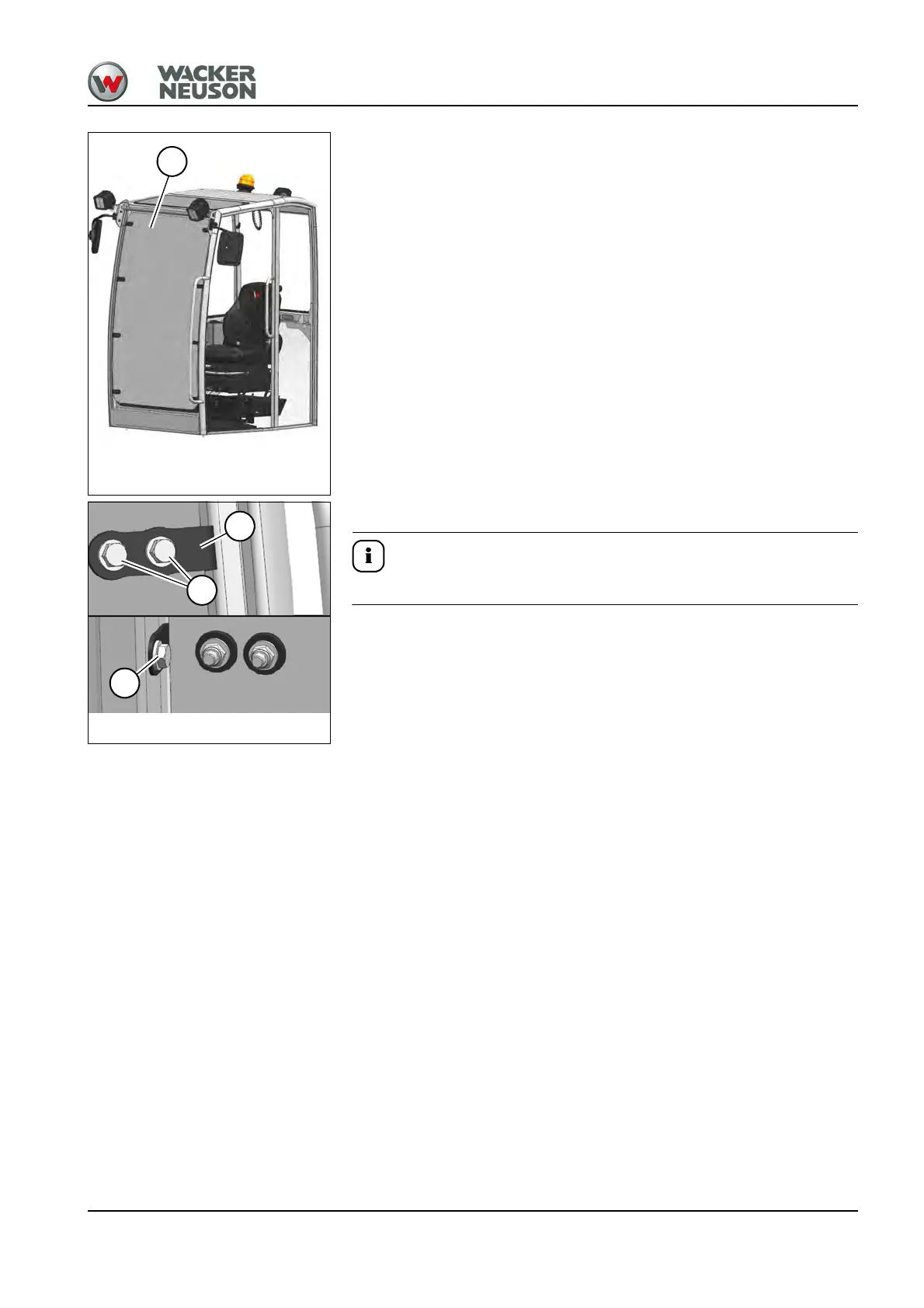

Fig. 100
