13 Diagram

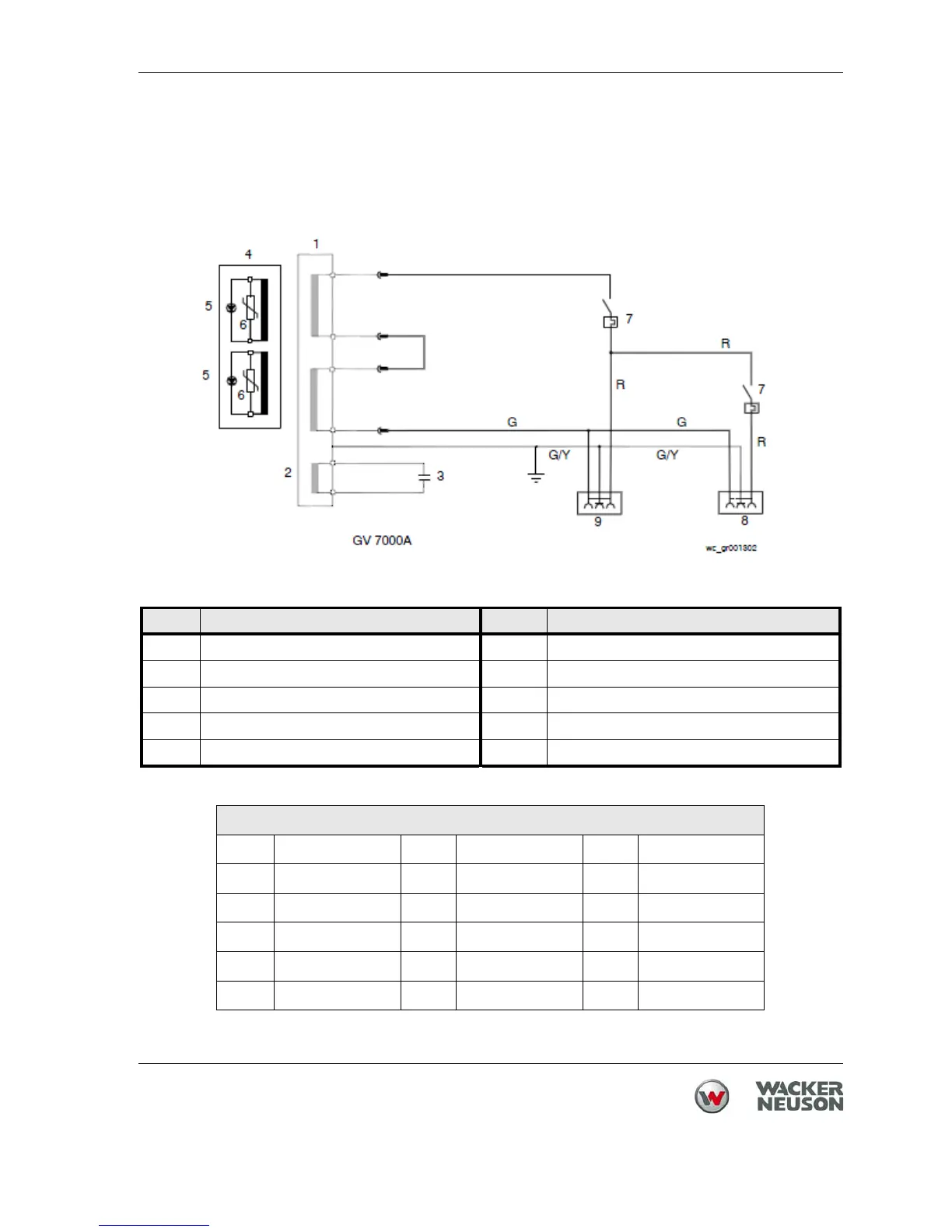

13.1 GV 7000A - Wiring diagram
Ref. Description Ref. Description
1 Main stator windings 6 Surge absorber
2 Auxiliary winding 7 Circuit breaker
3 Capacitor 8 Plug receptacle 230V, 1Ø, 16 A
4 Rotor windings 9 Plug receptacle 230V, 1Ø, 32 A
5 Diode
Color chart
B Black V Purple Or Orange
G Green W White Pr Purple
L Blue Y Yellow Sh Casing
P Pink Br Brown LL Light blue
R Red Cl Clear G/Y Green/Yellow
T Light brown Gr Gray
To Next Page
