13 Diagram
50
100_0402_ew_0004.fm

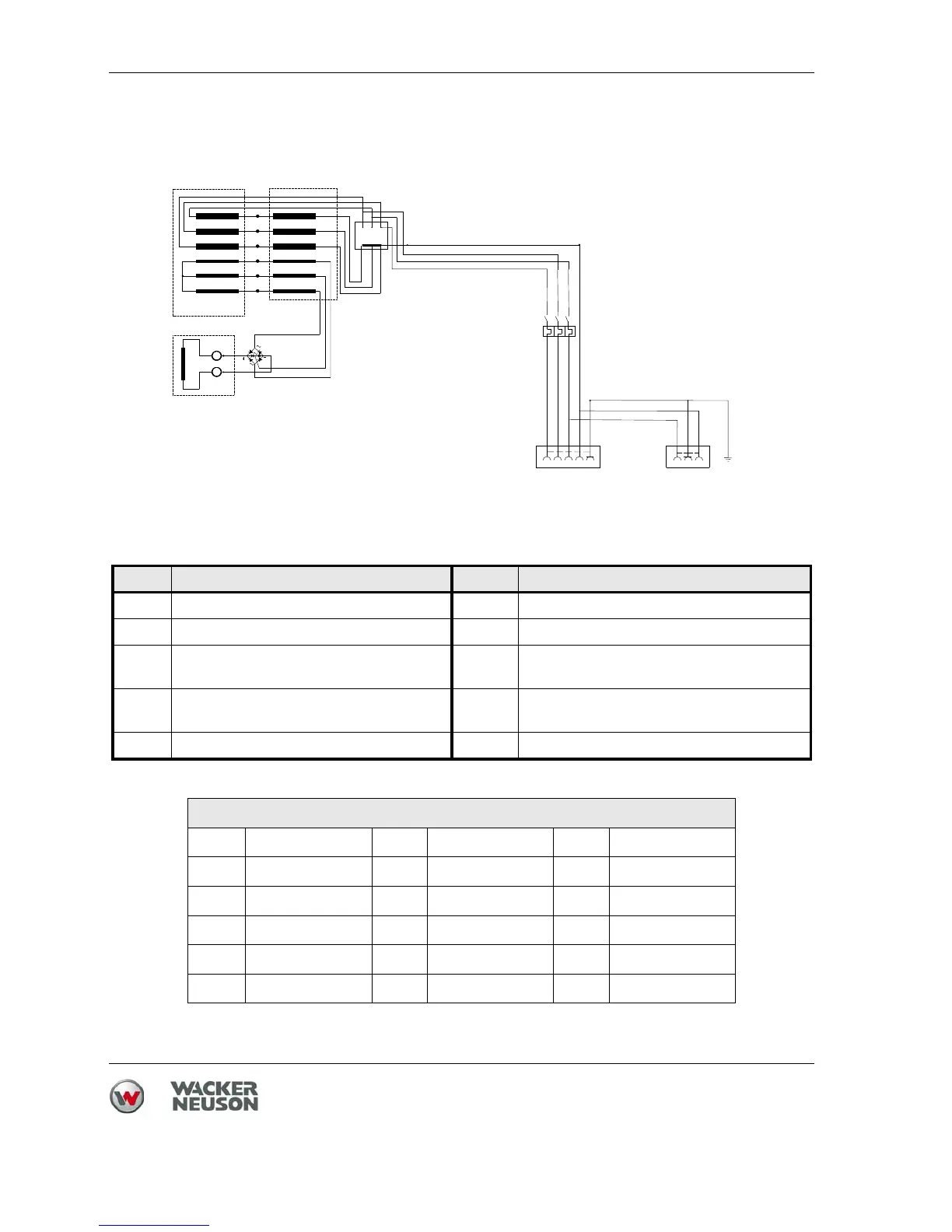

13.2 GV 7003A - Wiring diagram
Ref. Description Ref. Description
1 Main stator windings 6 Terminal board
2 Auxiliary winding 7 Circuit breaker
3 Voltage regulator (current rectifier) 8 Plug receptacle
230 V, 1Ø, 16A
4 Rotor windings 9 Plug receptacle
400 V, 3 Ø, 16 A
5 Compound (transformer) 10 Brushes
Color chart
B Black V Purple Or Orange
G Green W White Pr Purple
L Blue Y Yellow Sh Casing
P Pink Br Brown LL Light blue
R Red Cl Clear G/Y Green/Yellow
T Light brown Gr Gray
