LTV Operation

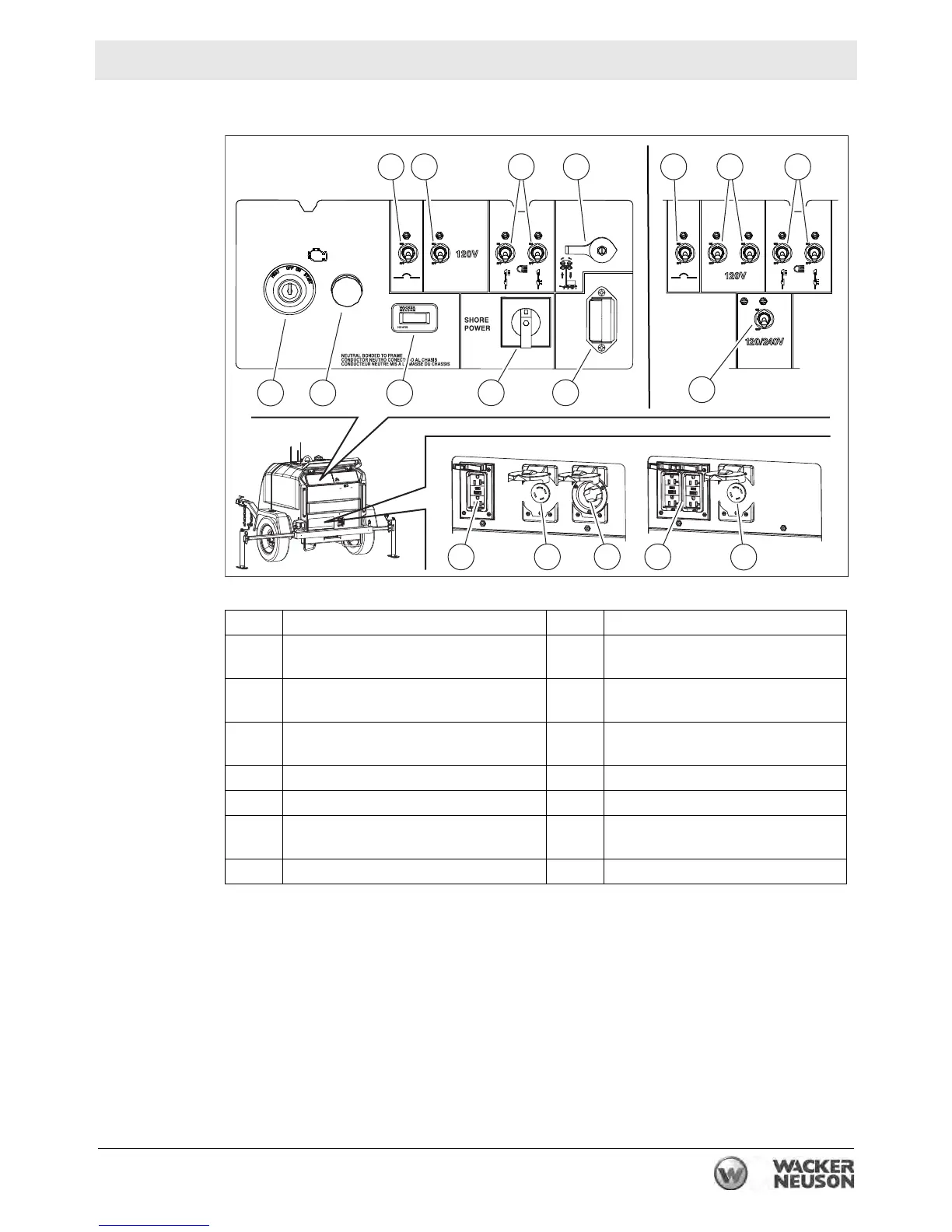

5.2 Control Panels and Receptacles—KUBOTA
Ref. Description Ref. Description
a 33A main circuit breaker (8K)
50A main circuit breaker (6K)
h Shore power switch
(optional for 6K)
b 33A GFI circuit breaker (8K)
25A GFI circuit breaker (6K)
j Control panel light
c 30A lights circuit breaker k 30A receptacle breaker
(standard for 8K)
d Tower winch rotary switch (optional) m 20A GFI receptacle
e Key switch n 30A receptacle
f Glow plug indicator p Shower power inlet
(optional for 6K)
g Hour meter
wc_gr013749
a
b d
c
a
b
c
e
f
6K 8K
6K
g
h
j
k
m m
n
8K
n
p
