WAGNER flexio 690 User Manual

English
6 © Wagner Spray Tech. - All Rights Reserved
Assembly
Before you begin:
NEVER point the spray gun at
any part of the body.
Note: Your unit includes two nozzle assemblies. See below
to determine the correct nozzle for your spraying project.
 • DetailFinishNozzle-usedfor
small projects and ne nishing.
Designed for spraying thinner
materials, such as water- and oil-
based stains and thinned paints.
The Detail Finish Nozzle leaves a
smooth nish.
 • iSprayNozzle-usedforbroad
surface coating. Designed for
spraying thicker materials, such as
latex paints and stains. Spraying
with this nozzle will leave a slightly
coarser nish that is between a
roller and ne-nish sprayer.
Note: These two spray nozzles have dierent spray pattern
/ width controls. Make sure to familiarize yourself with the
controls on each spray nozzle. See the “Controls” section,
page 8-9.

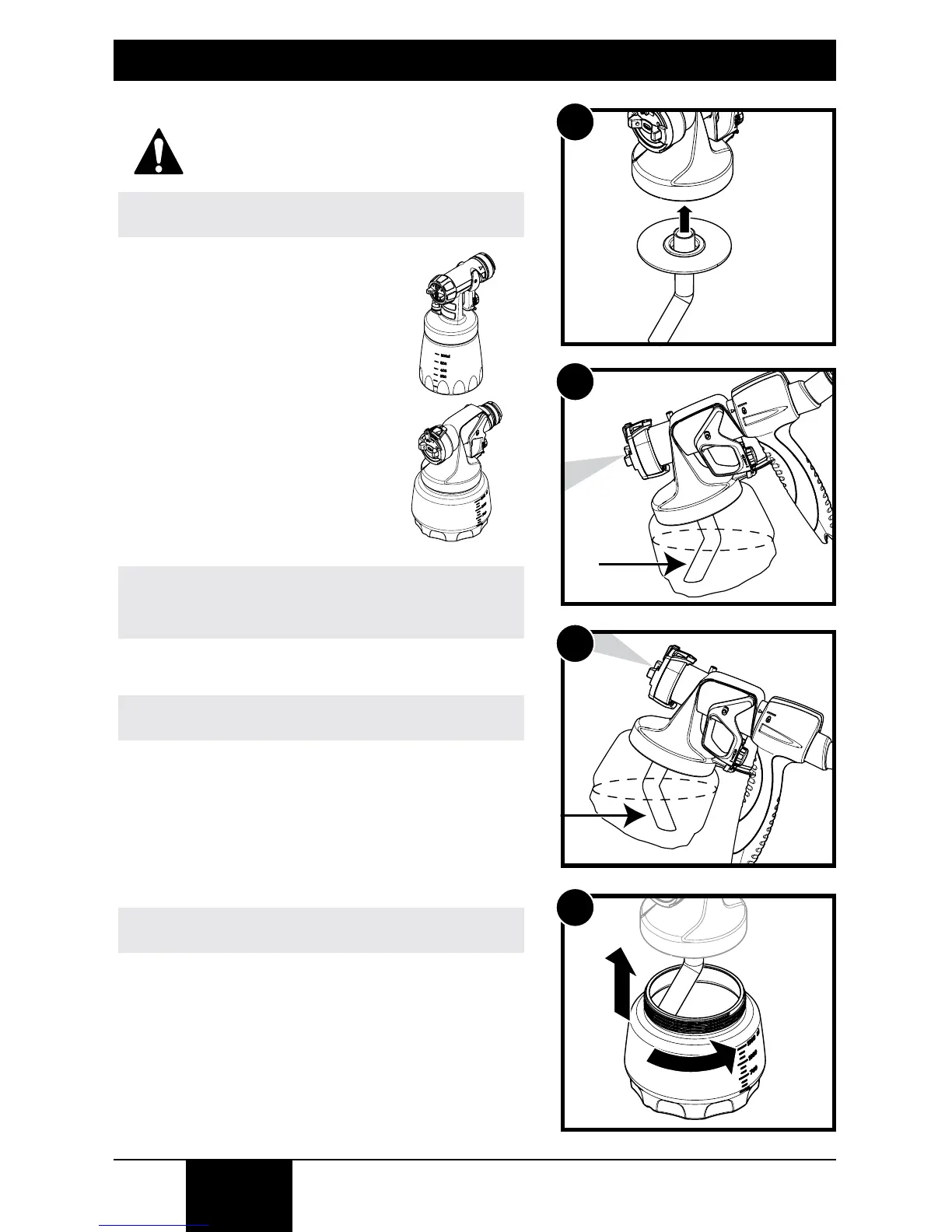

To Assemble:
IMPORTANT: Make sure the power cord is unplugged.
1. Insert the suction tube into the intake opening.
2. Align the suction tube -
a. If you are going to be spraying in a downward
direction, the angled end of the suction tube should
be pointing toward the front of the gun.
b. If you are going to be spraying in an upward direction,
the angled end of the suction tube should be pointing
toward the rear of the gun.
Note: Make sure the suction tube is inserted as far as it will
go to ensure a tight t.
3. Carefully screw the cup back onto the spray gun
assembly. Tighten rmly.
1
2a
2b
3

WAGNER flexio 690 Specifications

General

Adjustable Settings	Yes
Weight	4.5 kg
Material Compatibility	paints, stains, varnishes
Material Throughput	0.8 l/min
Power Source	Electric
