WAGNER GA 4000ACIC-S User Manual

45
VERSION 05/2018
ORDER NUMBER DOC 2312956
GA 4000ACIC

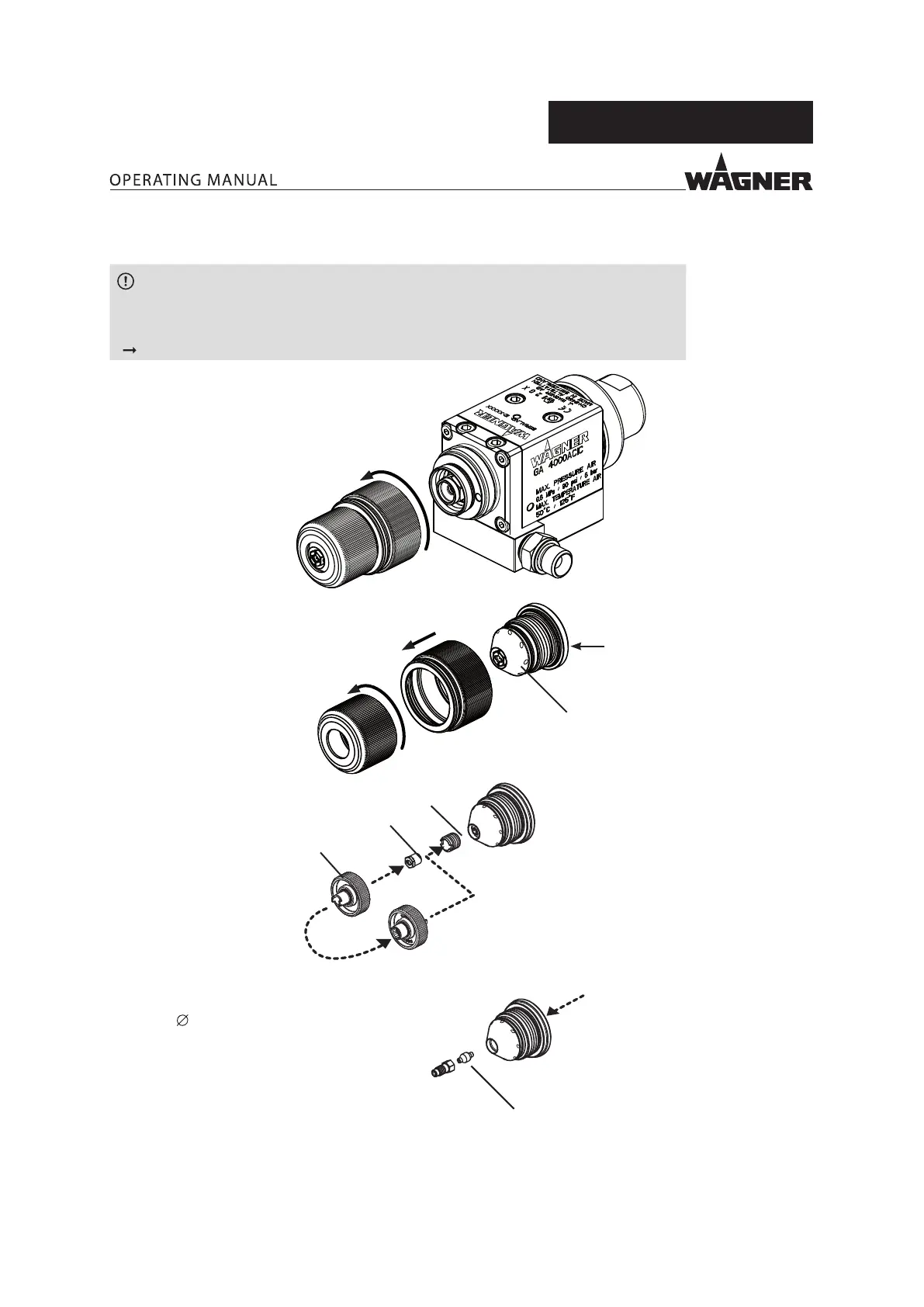

8.2.6 REPLACING THE SEALING FITTING OF THE ROUND JET NOZZLE
NOTICE
Defective nozzle body!
Poor spray pattern.
Handle the nozzle body (A) with care.
B_00542
B_00543
E
D
B
C
B_03060
A
Unscrew the nozzle by hand.
Hold in position with a size 13
mm; 0.51 inch socket wrench.
Note:
The sealing tting (E) can be pulled out of
the nozzle body using a small eye wood bolt.
Nozzle wrench (D)
Order no. 128901
Eject with
1.5 mm; 0.06 inch pin.
B_06658

WAGNER GA 4000ACIC-S Specifications

General

Type	Airless Paint Sprayer
Flow Rate	0.54 GPM
Weight	62 lbs
Power Source	Electric
Hose Length	50 ft
Technology	Airless
Voltage	120 V
Spray Pattern	Adjustable
