Large volume container
GB
Translation of the original operating instructions
General notes
Before using this accessory for the rst time read through
these Operating Instructions and also familiarise yourself
with the Operating Instructions for the paint spraying
unit. The safety instructions for the paint spraying unit
apply to this accessory.
Area of application
The large volume container makes the job of processing larg-
er volumes of coating material a convenient one without the
need to permanently change container.
The large volume container is suited to the following Wagner
models (as per March 2010):
Model designation Order no. of the accessories
needed for connection
PC430 2312 159
PS 3.25 2312 155
PS 30, PS 34, PS 3.29, PS 3.31,
PS 3.34
2312 156
PS 36, PS 3.39 2312 157
SF 27, SF 31, SF 7000 2312 158
HC 940, HC 960 2312 160
Only materials which can be processed
according to the relevant unit‘s operating
instructions may be used.
Technical Data
Maximum container volume: 100 l
Max. tyre pressure: 4.1 bar
Dimensions (L x W x H): 1100 x 640 x 1065 mm
Weight (empty): 26.8 kg

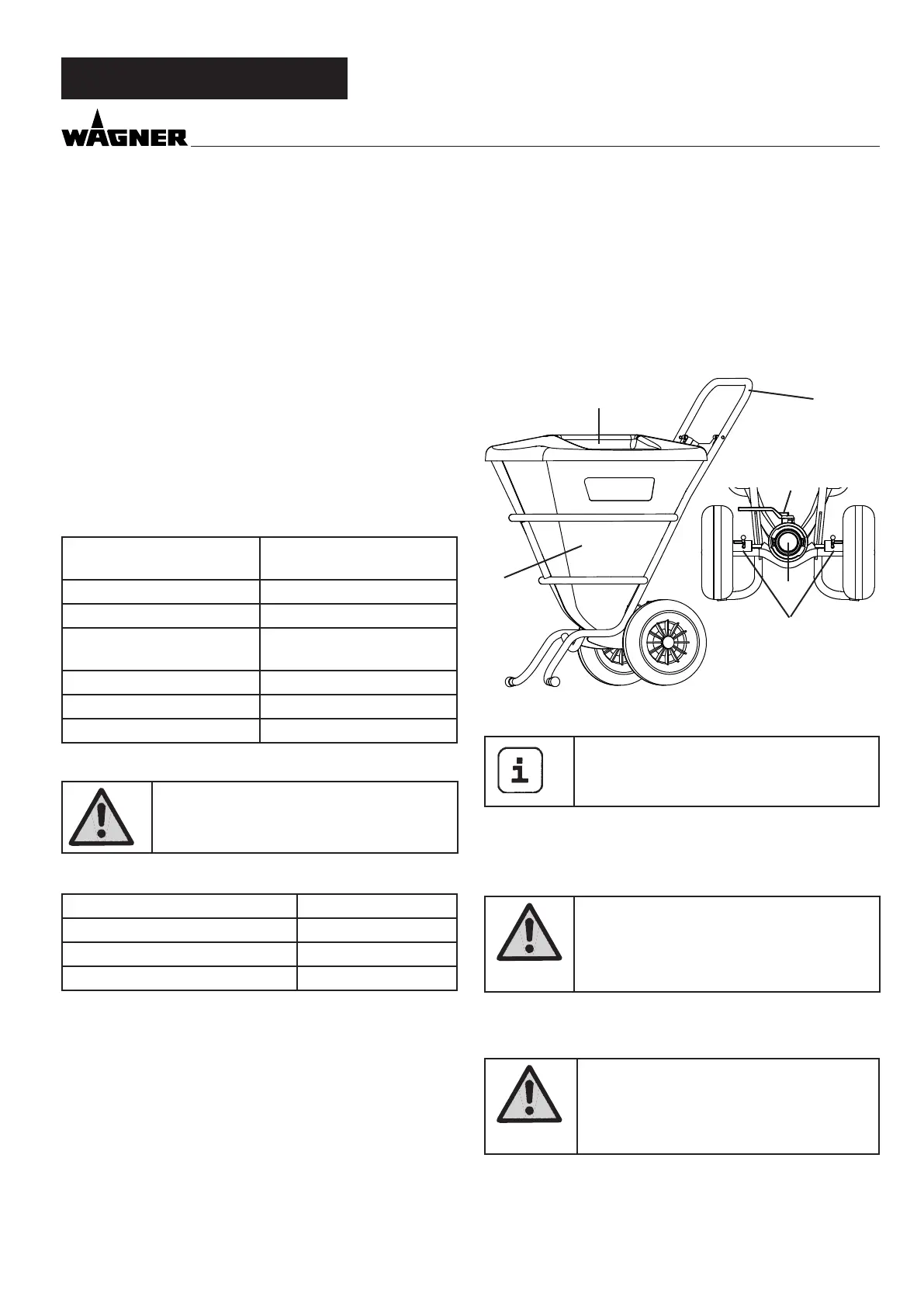

Description (Fig. 1)
Container1.
Lid2.
Grab handle 3.
B coupling 4.
Ball cock5.
Brake6.
1
2
3
5
6
4
Installation
Only install container on level ground.
Slide the brake (6) between the wheel spokes to prevent the
container from slipping away.
Transportation
Only transport empty containers up and
down stairs. If containers are lled, there
is a risk of tipping and falling due to their
weight.
Tilt empty containers backwards using the handle and move
by sliding or pulling.
The container must not be transported
with a crane.
