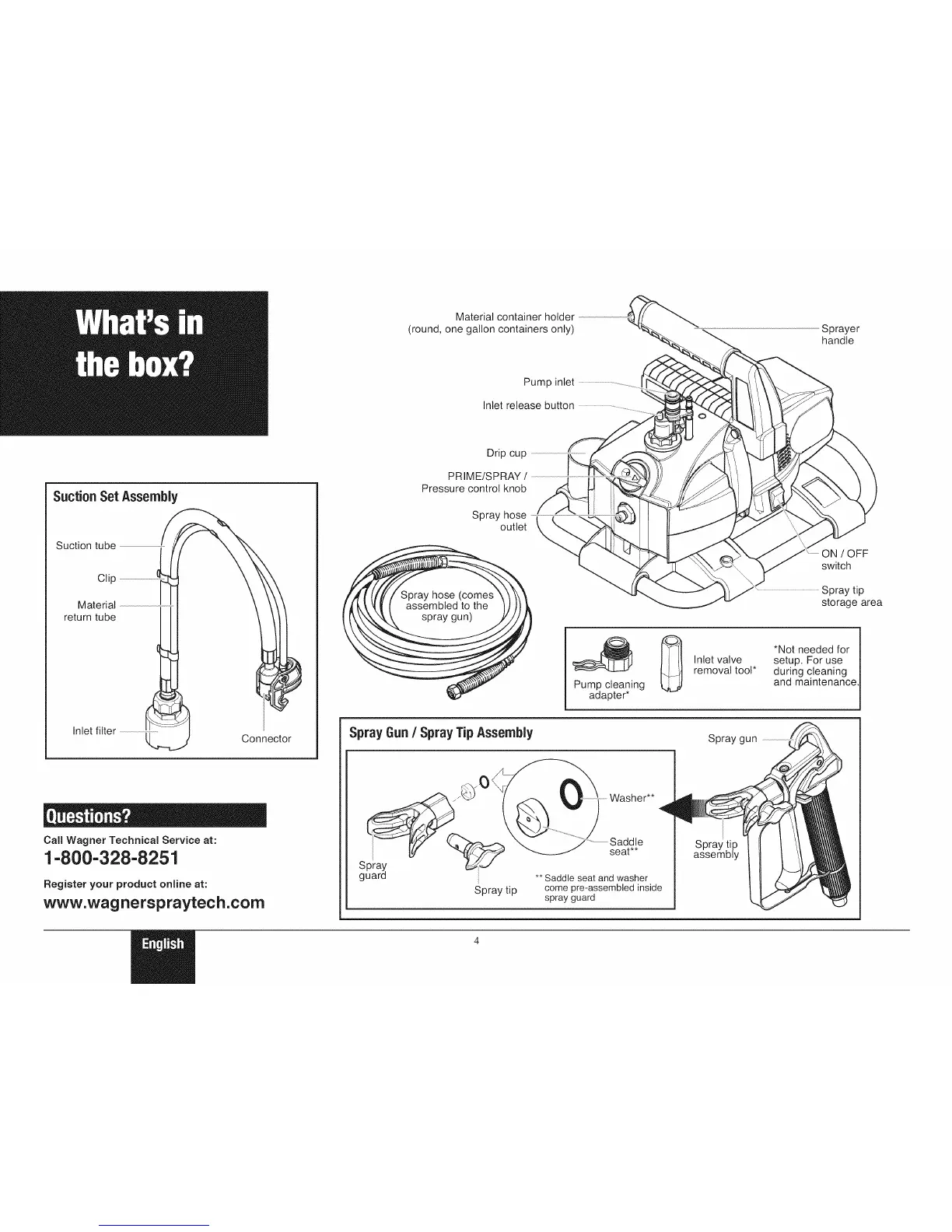

Materialcontainerholder
(round,onegalloncontainersonly)
Sprayer
handle
Pumpinlet
Inletreleasebutton
Suction Set Assembly
Suction tube
Clip
Material
return tube
Inlet filter ....................................
Connector
Catl Wagner Technical Service at:
1-800-328-8251
Register your product online at:
www.wagnerspraytech.corn
Drip cup
PRIME/SPRAY /
Pressure control knob
Spray hose ...........................................................
outlet _
assembled to the
Pump cleaning
adapter*
/ OFF
switch
Spray tip
storage area
Inlet valve
removal tool*
*Not needed for
setup. For use
during cleaning
and maintenance.
Spray Gun/ Spray Tip Assembly
Washer**
Spray
guard
Spray tip
seat**
** Saddle seat and washer
come pre-assembled inside
spray guard
Spray gun
Spray tip
assembly
To Next Page
