WAGNER ROLL'N GO User Manual

2
English
(a)
(b)
(c)
(e)
(k)
(l)
(m)
(d)
(g)
(f)
(h) (i) (j)
1
2
3
(n)

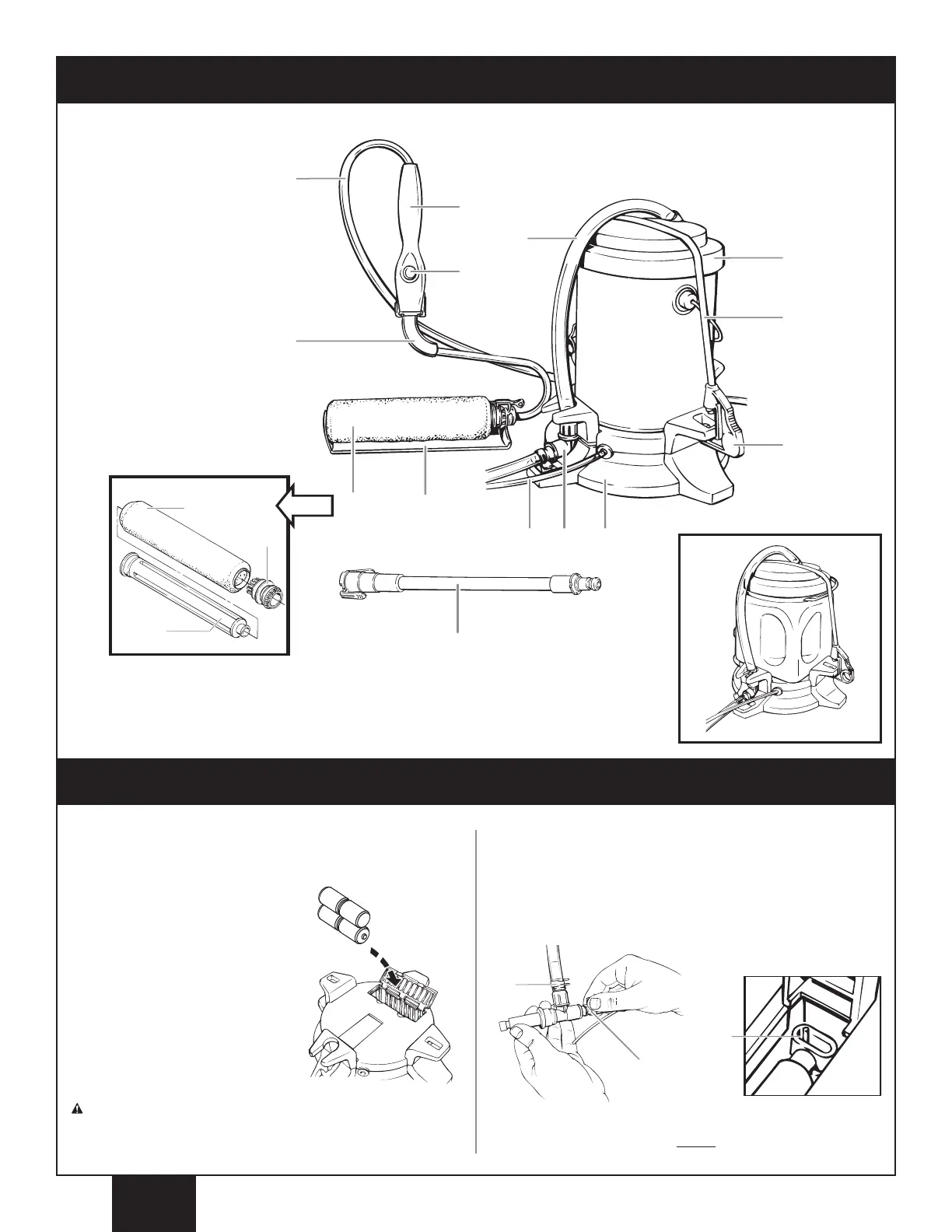

Parts and components
Setup
1. Open the battery door. Insert four new alkaline C-cell
batteries in the proper direction. Replace the door.
2. Attach outlet (a) and suction (b) hoses to the pump and
secure the clamps. Open the locking door on the drive
housing. Place the pump and suction hose assembly as
shown, making sure the oval slot
(c) in the rear of the
pump goes over the brass axle. Snap door shut.
WARNING - Improper installation of batteries may cause
batteries to overheat and leak acid. Acid may cause
severe injury and / or property damage.
Setup continued on next page.
This unit can be used with
both round and square one-
gallon material containers.
a) Paint hose
b) Roller arm
c) Roller handle
d) Suction hose
e) Handle button
f) Roller assembly
1
) Roller cover
2) Roller cap
3) Roller core
g) Spatter shield
h) Air hose
i) Pump
j) Base
k) Container lid
l) Strap
m) Strap clip
n) 14” Extension
-
+
-
+
+
-
+
-
(c)
(b)
(a)
Use high quality alkaline
batteries only. Do not mix old
and new batteries. Do not mix
alkaline, standard (carbon zinc)
or rechargeable (nickel
cadmium) batteries.

WAGNER ROLL'N GO Specifications

General

Brand	WAGNER
Model	ROLL'N GO
Category	Power Roller
Language	English
