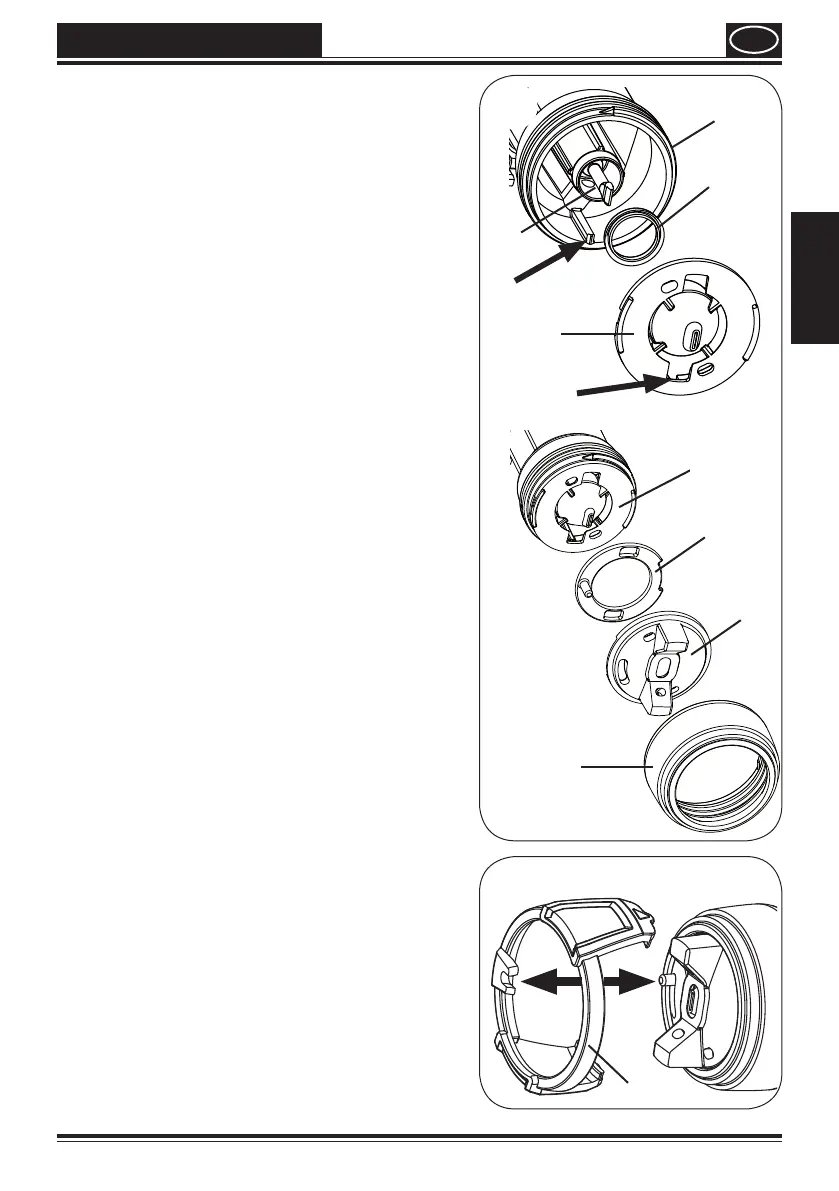

Push the nozzle seal (g. 14, 6) over the
needle (8); the groove (slot) should point
towards you.
•
Insert the nozzle (g. 14, 5), keeping an
eye on the grooves.
•
Put the air screen (4) in the air cap (3). Put
both on the nozzle (5) and secure with the
connecting nut (2).
•
Snap the adjustment ring (g. 15, 1) into
the connecting nut enabling the loop on
the peg to be positioned in the air cap.

1
5
4
3
2

6
5
7
8
