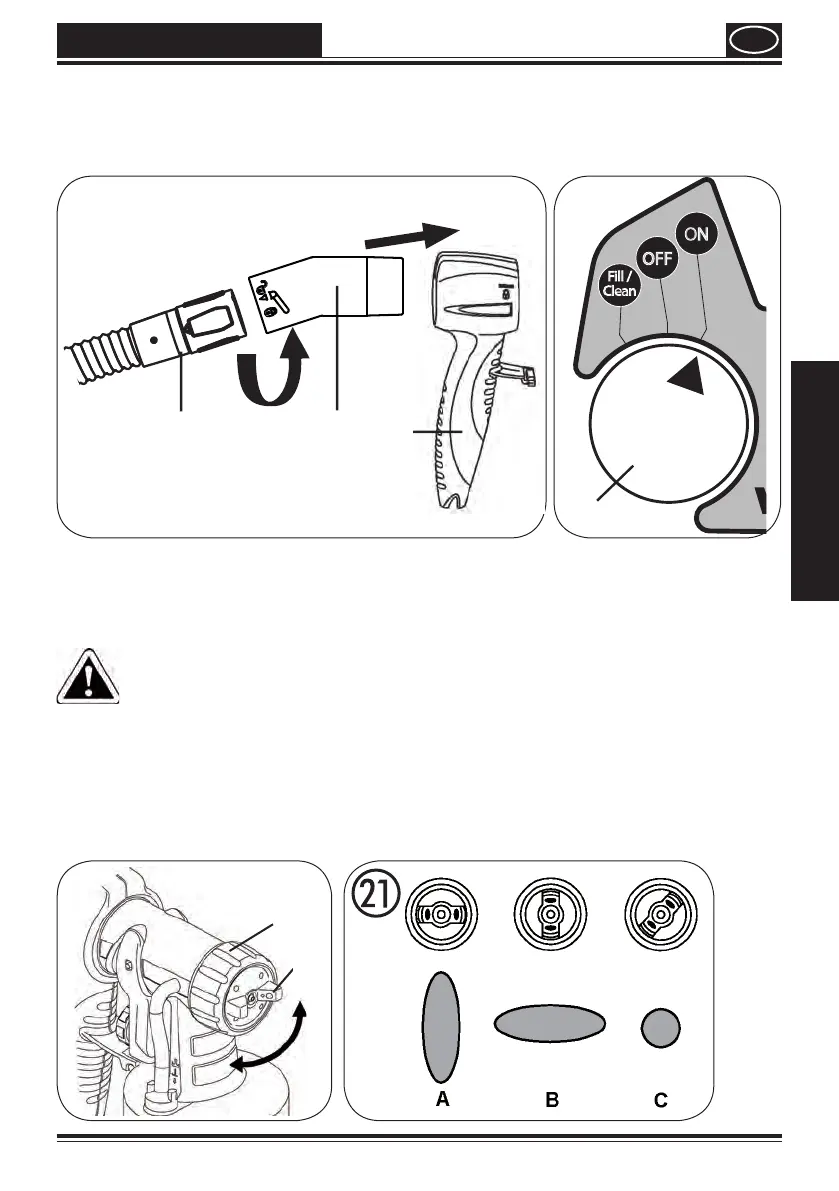

Attach the Click&Paint adapter (Fig. 18, 2) with the bayonet coupling to the thinner end
of the air hose (1).
•
Insert the other end of the adapter into the gun handle (3).
•
Set the multifunction switch (g. 19, A) to "ON".

1 2
3
Volume

A
21. Setting the spray pattern you require when working
with the spray attachment
WARNING! Danger of injury! Never pull the trigger guard while adjusting
the air cap.
With the union nut (g. 20, 1) slightly unscrewed, turn the air cap (2) to the desired
spraysetting position (arrow). Then tighten the union nut.
Fig. 21 A = vertical at jet

for horizontal surfaces
Fig. 21 B = horizontal at jet

for vertical surfaces
Fig. 21 C = circular jet

for corners, edges and hard-to-reach surfaces

