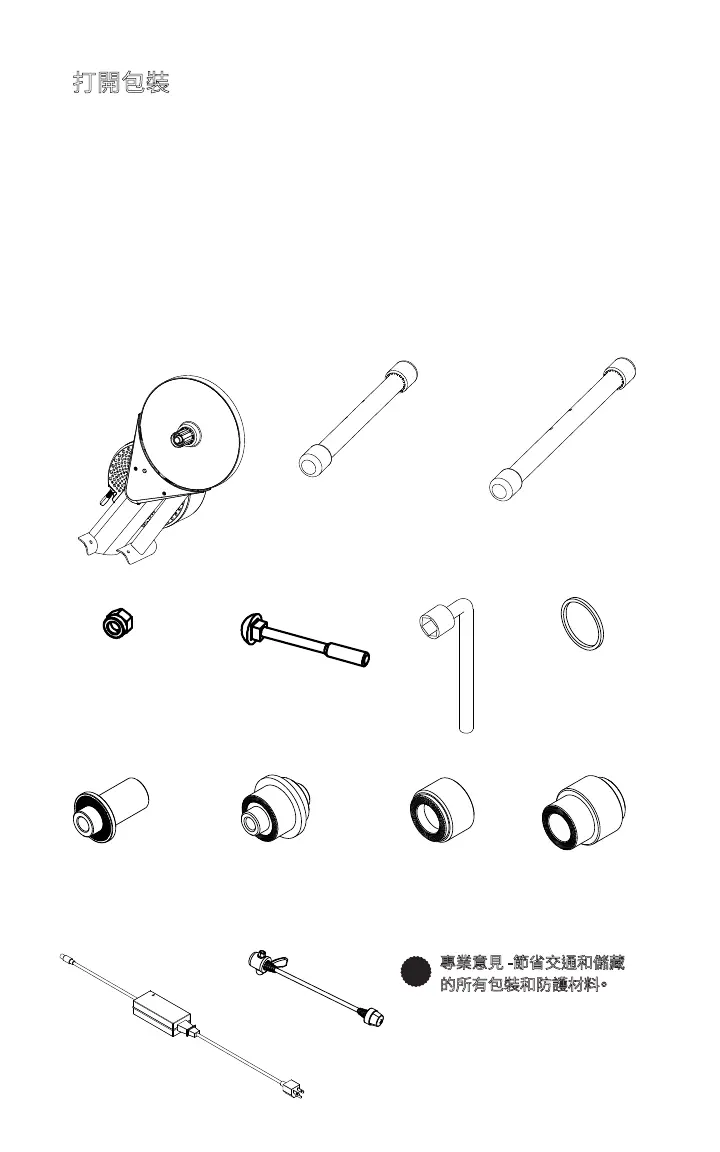

打開包裝
(1) KICKR CORE
(2) 後支腳
(3) 前支腳
(4) 螺母 (x4)
(5) 螺栓 (x4)
(6) 六邊形工具
(7) 1.8mm墊片
(8) Adapter A - 針對130mm和
135mm快裝/卸板
(9) Adapter B - 可逆輪轂墊圈（針對
130mm和135mm快裝/卸板）
(10) Adapter C - 針對12x142和
12x148貫通軸
(11) Adapter D - 可逆輪轂墊圈（針對
12x142和12x148貫通軸）
(12) 交流電源接頭
(13) 快拆杆
(4)
(8)
(12)
(5)
(9)
(13)
P
專業意見 -節省交通和儲藏
的所有包裝和防護材料。
