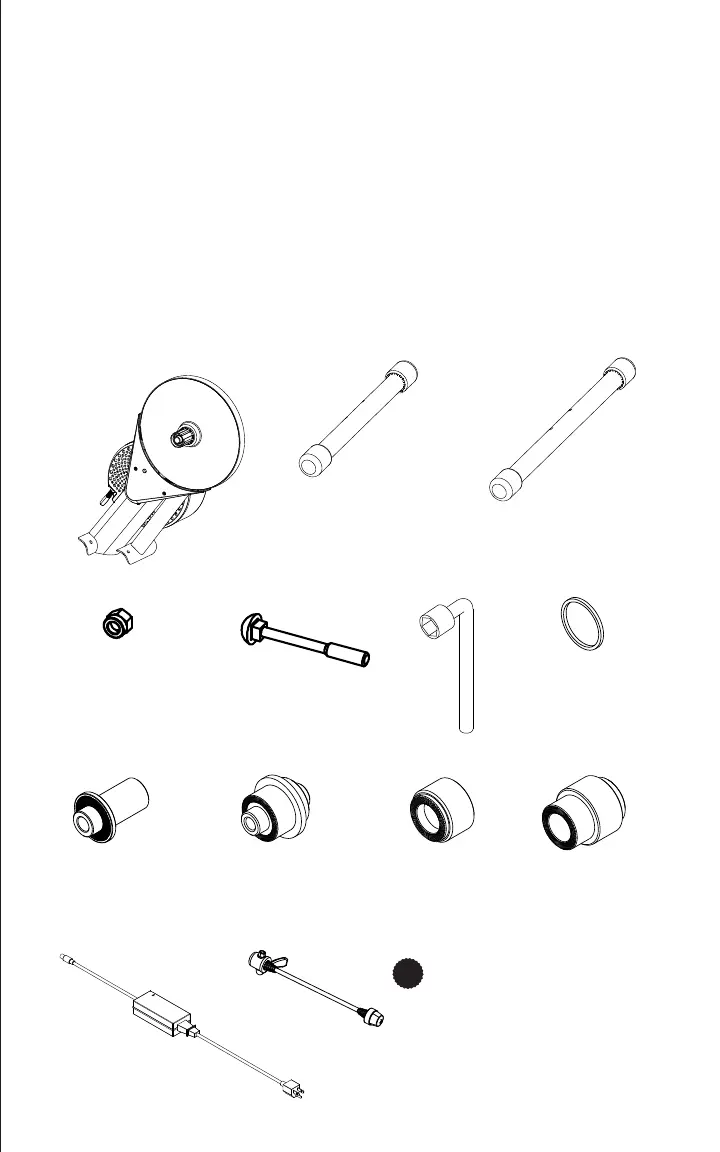

UNPACKING
(1) KICKR CORE
(2) Rear Leg
(3) Front Leg
(4) Nuts (x4)
(5) Bolts (x4)
(6) Hex Tool
(7) 1.8mm Spacer
(8) Adapter A - For 130mm
and 135mm Quick Release
(9) Adapter B - Reversible hub spacer for
130mm and 135mm Quick Release
(10) Adapter C - For 12x142 and 12x148
Thru Axle
(11) Adapter D - Reversible hub spacer
for 12x142 and 12x148 Thru Axle
(12) AC Power Adapter
(13) Quick Release Skewer
(4)
(8)
(12)
(5)
(9)
(13)
P
PROTIP: Save all packaging
and protective material for
transportation and storage
