Walker Edison BR6DSLDR - Step 11: Assemble Drawer Sides; Step 12: Assemble Drawer Fronts; Step 13: Insert Drawer Stops

Step 11
Step 12
D
D
D
D
D
D
D
D
D
Ø3,5*30mm
16
D
D
D
D
D
D
D
D
4x
4x
D
Ø3,5*30mm
32
Step 13

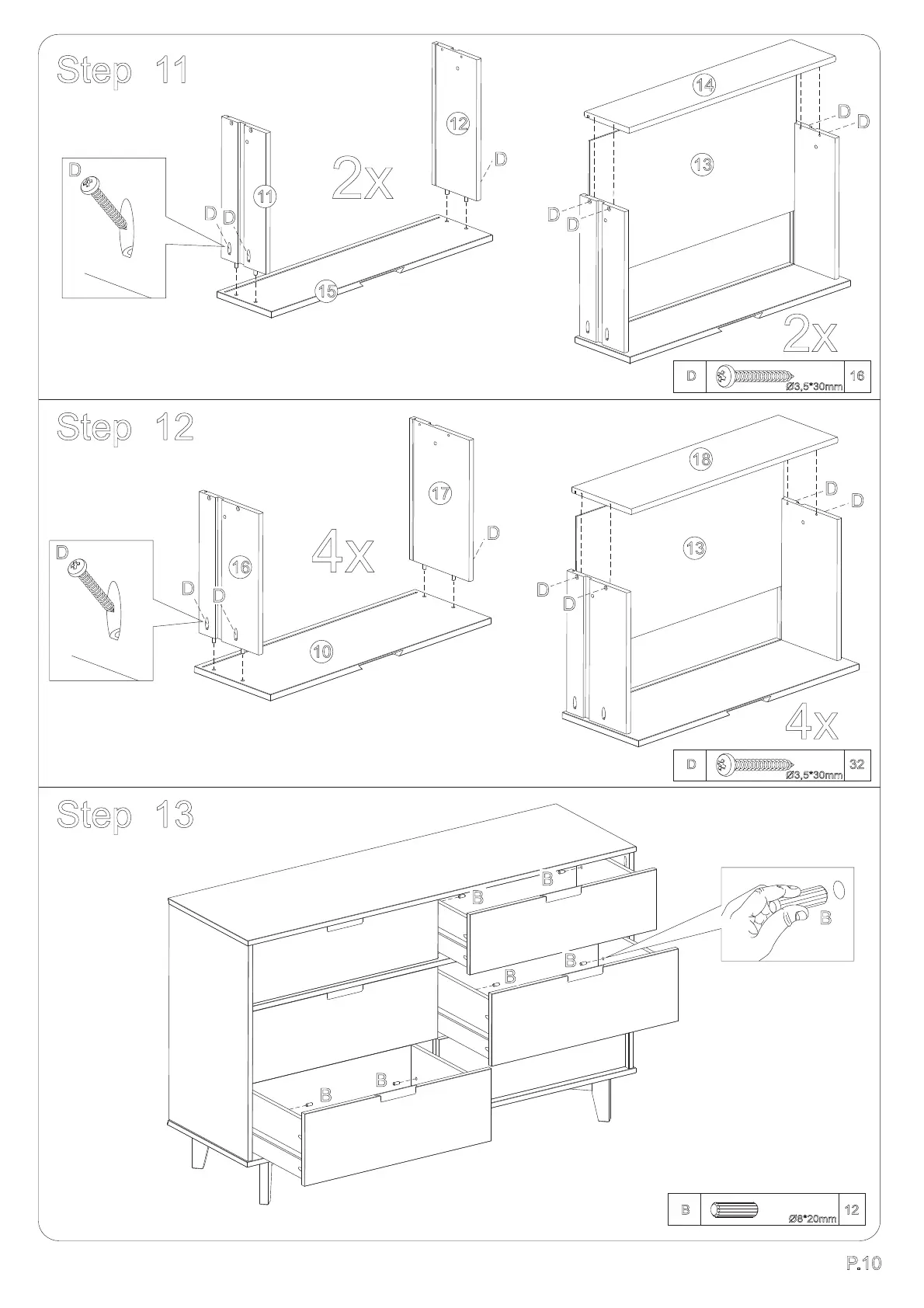

Attach parts (11,12) to part (15) ,
insert panel (13) into groves and
secure part (14) with screws(D).
Attach parts (16,17) to part (10) ,
insert panel (13) into groves and
secure part (18) with screws(D).
14
13
12
11
15
10
16
17
18
13
B
B
B
B
B
B
B
Ø8*20mm
12
B
2x
2x
P.10
Insert wood dowel (B) on the
inside of all drawers while
drawer is inside the unit.
Dowel is used as drawer stop.
Assembly Complete!
