Walker Edison BR6DSLDR - Step 7: Attach Legs and Crossbeams; Step 8: Attach Top Panel

P.8
Step 7
Step 8
H
G
Ø7*80mm
4mm
G
04
H
01
E
Ø4,0*40mm
12

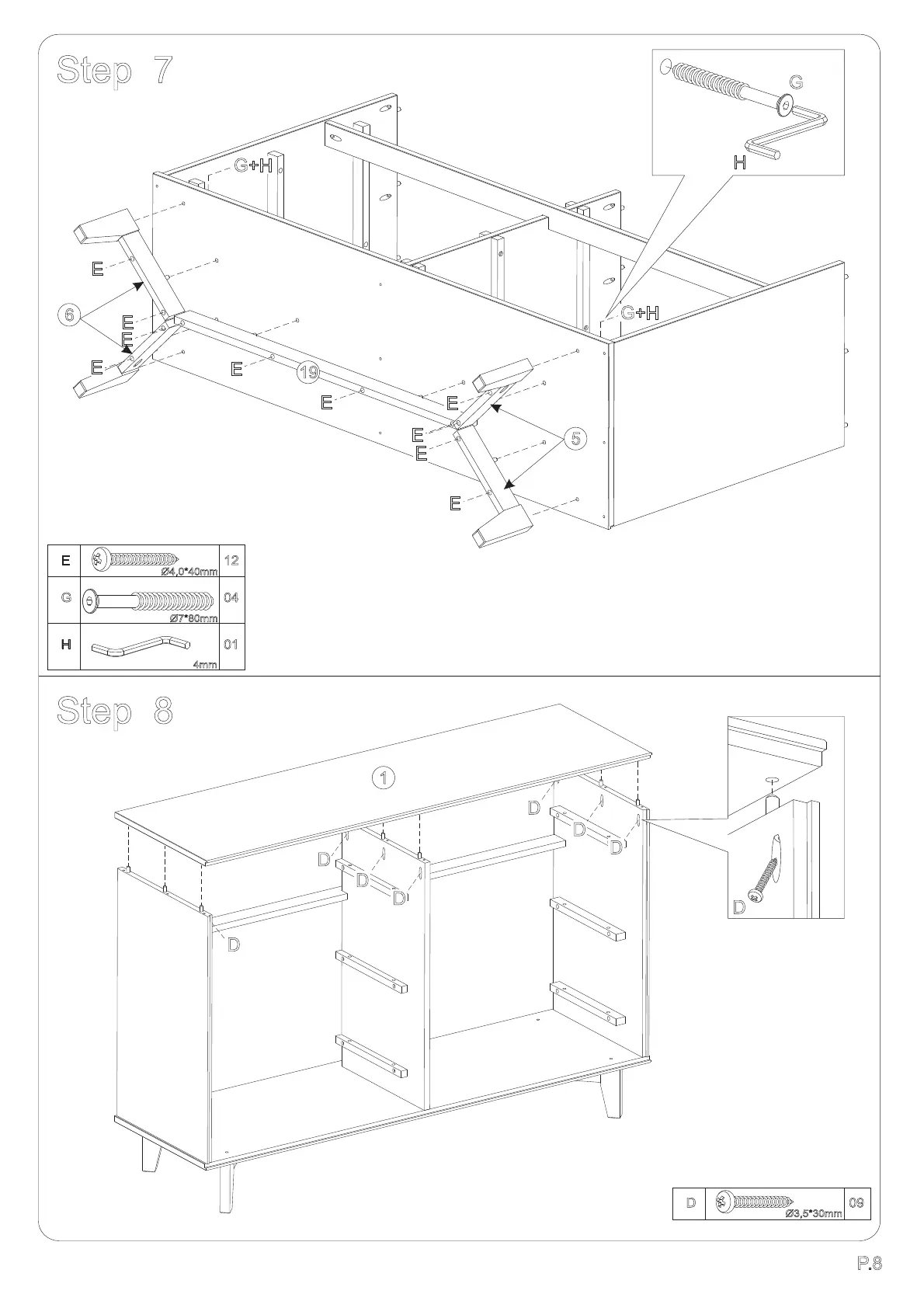

Use screw (E) to attach legs to body .
Use screw (G) and hex key (H) to attach
the feet to the body, from inside the unit.
Attach crossbeam (19) to body using screw (E)
5
G+H
G+H
E
E
E
E
E
E
E
E
E
E
6
D
D
D
Ø3,5*30mm
09
D
D
D
D
D
D
Use screw (D) to attach
part (1) to body
1
19
