Walker Edison W70ADR2D - Página 8

P.8
Step 7
Step 8
B
12
Ø4,0*30mm

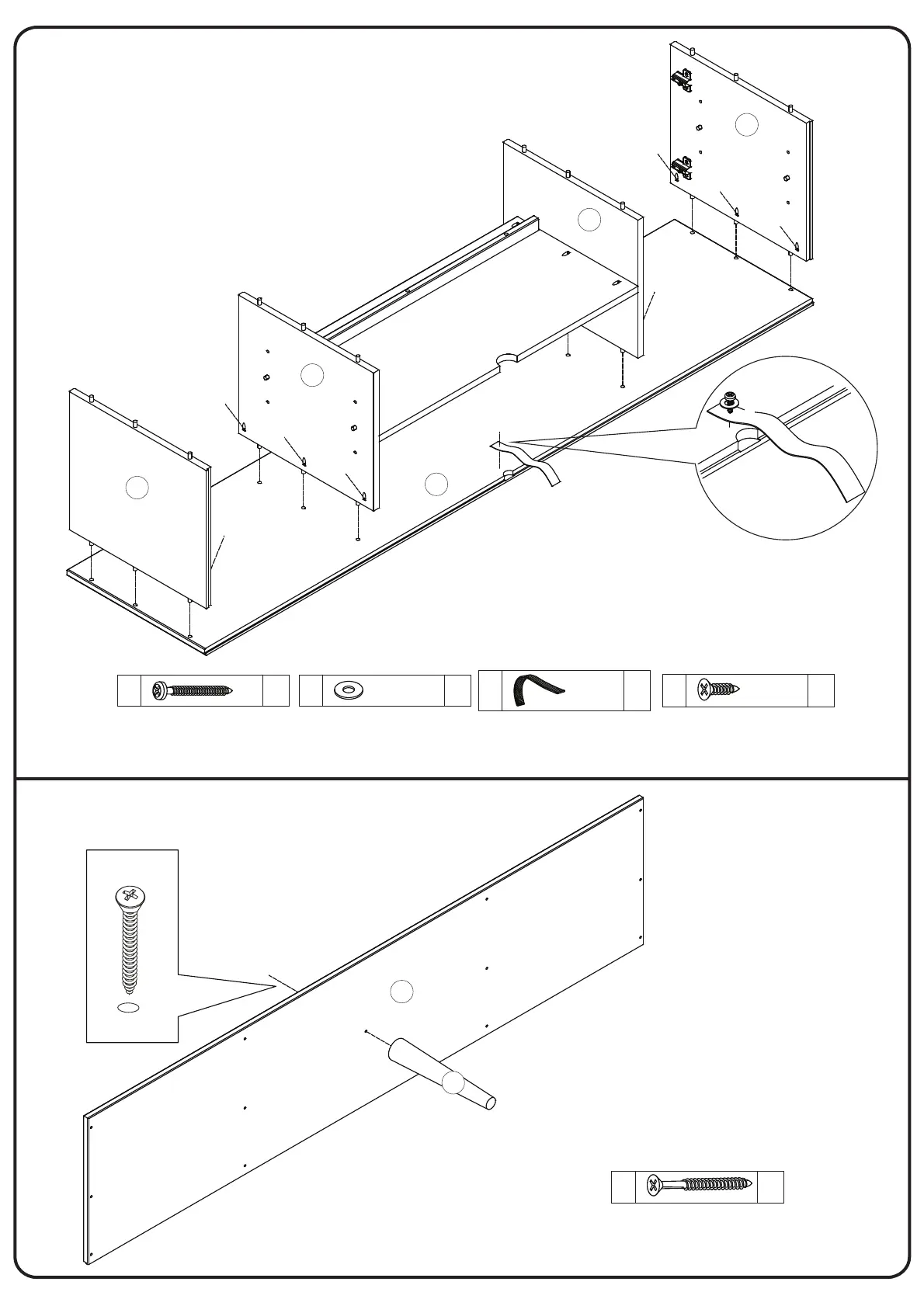

Secure part (2), (3), (4), (5) to part (1) with screw (B).
B
4
5
3
2
1
H+E
G
G
E
H
E
01
G
01
H
01
Ø4,0*16mm
Attach hardware (G) part (1), with screw (H+E).
B
B
B
B
B
B
B
C
C
C
01
Ø4,0*40mm
16
6
Secure part (16) to part (6) with screw (C).
