Component Identication B27i
8

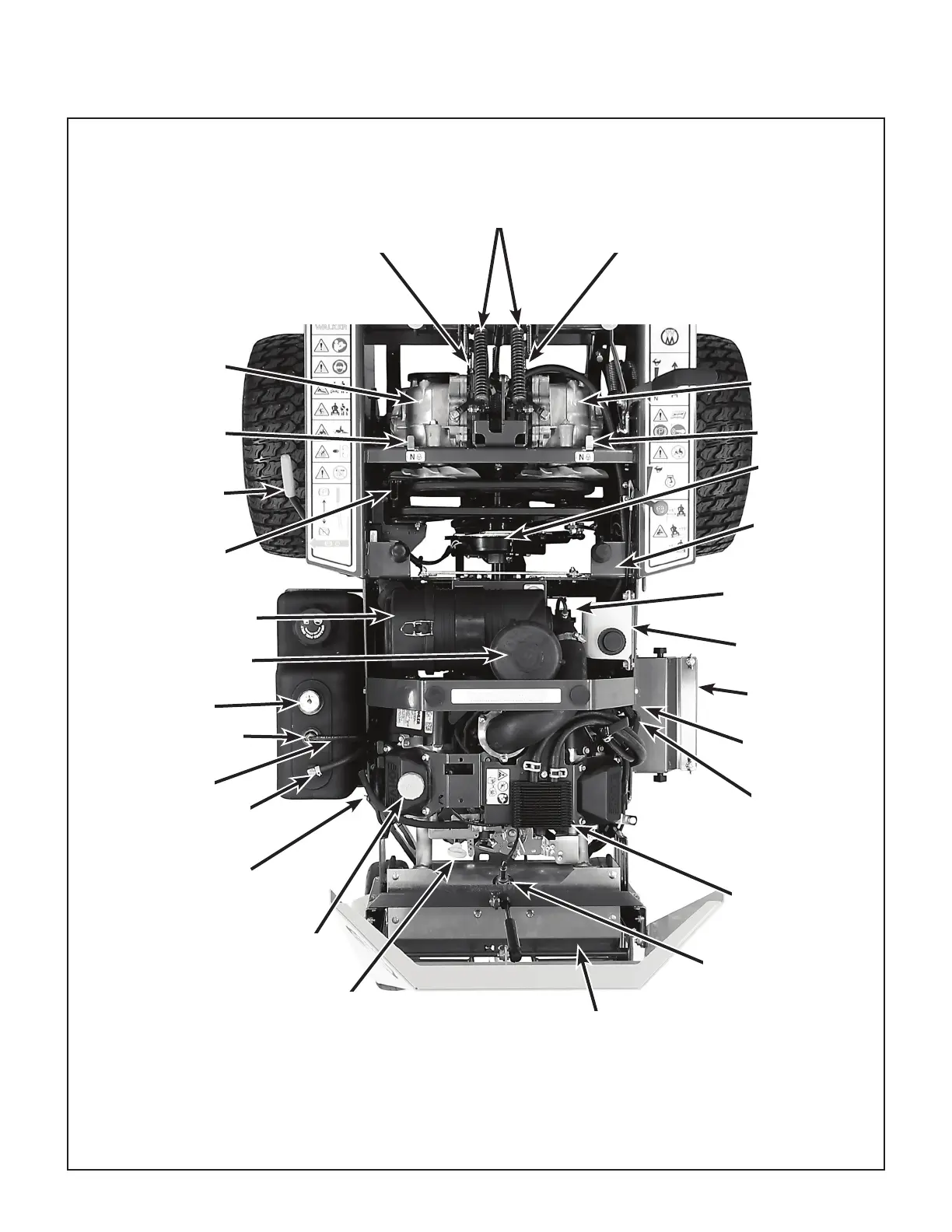

Top View (Engine Compartment)
Battery Box
and Cover
RH Transmission
Control Rod
LH Transmission
Control Rod
Fuel Pickup Line
Dipstick
Mu󰀪er Heat
Shield
Oxygen
Sensor
LH Transaxle
Lockout Arm
RH Transaxle
Lockout Arm
Transaxle Oil
Expansion
Reservoir
EVAP Line
Roll Over Valve
Fuel Gauge
Oil Fill
RH Transaxle
LH Transaxle
Steering Lever
Spring / Dampeners
Parking Brake
Lever
Parking Brake
Linkage
Oil
Cooler
30-Amp Master
Circuit Breaker
(Not Visible)
Fuel Pump
(Low Pressure)
Fuel Filter
(Not Visible)
Air Filter
Restriction Gauge
(Not Visible)
Oil Pressure
Warning Horn
(Not Visible)
Electric PTO
Clutch
Turbine Precleaner
Donaldson Air Cleaner
