Maintenance Instructions B27i
Lubrication
46
Ident Lubrication No.
No. Location Type Places
1 Deck Caster Wheel Fork Pivot Grease 2
2 Deck Caster Wheel Bearing Grease 2
3 Blade Spindle Grease**
Δ
3
4 Pivot Assembly, Tilt-Up Deck Grease 4
5 Deck Support Arm Socket Grease 2
6 Right Angle Gearbox Oil*
Δ
1
7 Universal Joint Shaft Assembly Grease** 1(2
Δ
)
8 Dolly Wheel Retract Oil
Δ
1
Lever and Linkage
9 Dolly Wheel Pivot Grease
Δ
1
10 Idler Arm Pivot Grease
Δ
1
11 Tee Gearbox, Deck Oil* 1
12 Blade Drive Gearbox Oil* 2
13 Steering Lever Pivot Grease 2
14 Deck-to-PTO Coupling Grease 1
(Grease Spline Slide Area)
15 Deck Support Arm Pivot Grease 2
16 Universal Joint Tube Assembly Grease** 1
17 Universal Joint Quick Connect Grease 1
Spline (Grease Slide Area)
18 Throttle Control Pivot Oil 1
19 Throttle Control Cable Ends Oil 2
20 Ground Drive Idler Pivot Grease 1
Ident Lubrication No.
No. Location Type Places
21 Transaxle Oil Reservoir Oil/20W-50 1
22 Tail Wheel Caster Fork Pivot Grease 2
23 Rear Axle Pivot Grease 1
24 Engine Dipstick / Oil Fill Oil*** 1
25 PTO Belt Tightener Idler Pivot Grease 1
26 Parking Brake Clevis Oil 2
27 Body Latch Pivot Oil 4
28 Parking Brake Lever Grease 1
* Gearboxes are permanently lubricated and
sealed requiring no scheduled lubrication. Oil
level should be checked only when an oil leak
is noted. Refer to Mower Deck Gearbox
Lubrication on page 44.
** Grease every twenty-ve (25) hours.
*** Refer to Engine Oil on page 42.
Δ
Belt Driven Decks Only
NOTE: DM48 and DS52 decks are shown for refer-
ence. For other deck lubrication points, refer to the
applicable Deck and Carrier Frame Illustrated Parts
Manual.

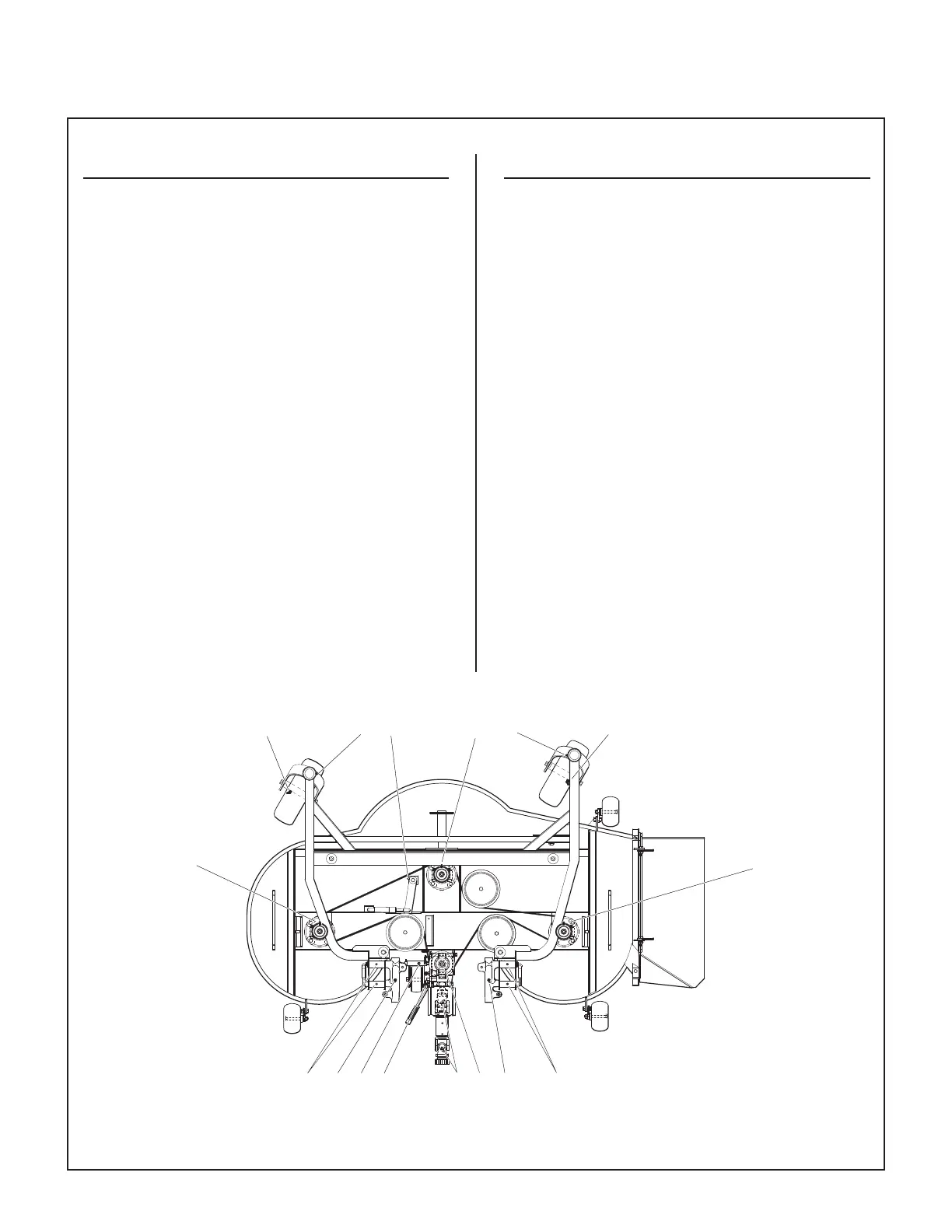

Lubrication Points for Optional Belt Driven Decks (DS52 Shown)
3
4 895 7 6 5 4
1
3
212
3
10
