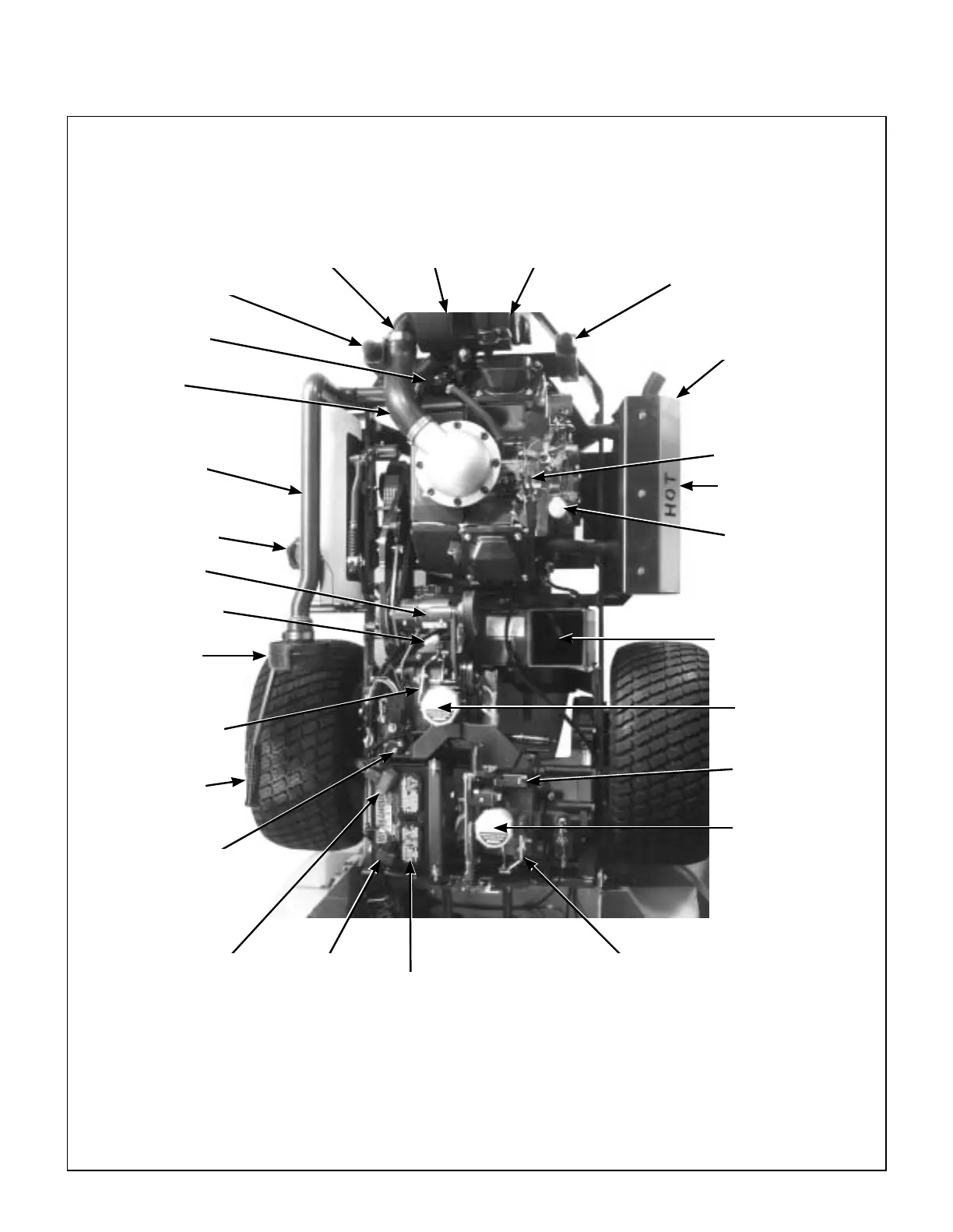

Component Identification
9
Negative (
-)
Battery
Cable
LH Hy
dr
ost
ati
c
T
ransmis
sion
RH Hydrostatic
T
ransmiss
ion
GHS Blowe
r
Muffler H
eat Shiel
d
30 Amp
Circuit Br
eaker
RH T
ransm
issi
on
Lockou
t Leve
r
PT
O Gearbox
Dipstick
Preclean
er
T
ube
Fuel Pump
Donalds
on
Air Clean
er
Air Clea
ner
Cover
Rubber B
umper
(Body Sup
port)
Air R
est
rict
ion
Indicator
(Not V
isible)
Rubber Bum
per
(Body
Suppo
rt)
Air Int
ake
Hose
Fuel T
ank Cap
Jacksh
aft
PTO
Clutch
Lever
Tu
r
b
i
n
e
Preclean
er
Posit
ive (+)
Batt
ery Cable
Muf
fl
er
Oil Fi
ll/
Dipstick
Throttle and
Choke L
inkage
Neutral S
afety
Switc
h
LH Transmissi
on
Lockout Lever
Battery
T
op View (Engine Comp
artment)
12
14
Table of Contents
Default Chapter
3
Table of Contents
3
General Information
5
Highlighted Information
5
Glossary
5
Identifying Number Locations
5
Engine Serial Number Location
6
Servicing of Engine and Drivetrain Components
6
Specifications
7
Engine
7
Electrical System
7
Transmission
7
Blade Drive
8
Tire Size
8
Tire Pressure
8
DIMENSIONS (Tractor and Mower)
8
Mower Deck
9
Curb Weight
9
Drive Belts
9
GHS SYSTEM (Optional)
10
Seat
10
Frame/Body Construction
10
Component Identification
11
Safety Instructions
14
Before Operating
14
Operating
15
Maintenance
16
Safety, Control, and Instruction Decals
18
Assembly Instructions
20
Setup Instructions
20
Tire Installation (Tractor)
20
Battery Service
20
Wet Battery Service
20
Dry Battery Service
20
Battery Charging
21
Battery Installation
21
Mower Deck Assembly
21
Deck Caster Wheels Installation
21
Deck Discharge Chute Installation
22
Deck Discharge Shield Installation
22
PTO Shaft Guard Installation
22
Tilt-Up Roller Wheel Installation
22
Mower Deck Lnstallation on Tractor
23
Deck Installation
23
Deck Leveling
25
Preoperating Checklist
26
Operating Instructions
28
Control Identification, Location, and Function
28
Ignition Switch
28
Engine Choke
29
Engine Throttle
29
Forward Speed Control (FSC)
29
Steering Levers
29
Blade Clutch (PTO)
29
Parking Brake
30
Transmission Lockout Levers
30
Hourmeter
30
Oil Pressure Warning Light
30
Circuit Breaker (5 Amp)
30
Light Switch (for Optional Lights)
30
Starting the Engine
32
Adjusting Ground Speed and Steering
32
Engaging the Mower
34
Stopping the Machine
35
Adjusting Cutting Height
35
Transmission Lockout
36
Recommendations for Mowing
37
Recommendations for Tilt-Up Deck Operation/Transport
38
Grass Handling System (Ghs)
39
General Information
40
Clogging Checklist
41
Using the Tilt-Up Deck
42
Using the GHS Catcher
42
Powerfil
42
Full" Signal Horn
42
Cleaning the GHS Exhaust Screen
42
Dumping the Catcher
43
Tailgate Dumping
43
Using the Dump Bag
43
Maintenance Instructions
45
Maintenace Schedule Chart
45
Important Tips for Care of the Kohler Engine
46
Fuel System
46
Starting/Stopping
46
Cooling System
46
Air Cleaner System
46
Oil
46
Lubrication
47
Engine Oil
47
Engine Break-In Oil
47
Checking Engine Crankcase Oil Level
47
Changing Engine Crankcase Oil/Oil Filter
47
Grease Fitting and Oil Point Lubrication
48
Mower Deck Gearbox Lubrication
48
DSD52 Mower Deck Lubrication
49
Tractor PTO Gearbox Lubrication
50
Checking Gearbox Oil Level
50
Changing Gearbox Oil
50
Gear Axle Lubrication
50
Hydrostatic Transmission Fluid
50
Checking Hydrostatic Transmission Fluid Level
50
Changing Hydrostatic Transmission Fluid
51
Cleaning
54
Engine Air Cleaner System
54
Turbine Precleaner
54
Donaldson Radialseal™ Air Cleaner
55
Engine Cooling System
56
Air Intake System
56
Cylinder Head Cooling Fins
57
Grass Buildup in Mower Housing
57
GHS Blower
58
GHS Exhaust Screen
59
Hydrostatic Transmission Cooling Fins
59
Checking/Servicing
59
Security of Air Filtration Components
59
Battery
59
Electrolyte Level
59
Cleaning the Terminals
60
Charging the Battery
60
Tire Pressure
60
Sharpen Mower Blades
60
Drive Belts
61
Mower Deck Gearbox Oil Seals
62
Spark Plugs
62
Fuel Lines and Clamps
62
Engine Starter
62
Engine Valve Clearance
62
Blade Brake Action
62
Replacing/Repairing
63
Drive Belts
63
Engine PTO Drive Belt
65
Jackshaft Drive Belt
66
GHS Blower Drive Belt
67
Hydrostatic Ground Drive Belt
68
Fuel Filter
69
Blade Overload Shear Bolts
69
PTO Shear Pin
70
Mower Blades
70
Mower Deck Gearbox Replacement
71
GHS Blower Assembly
72
GHS Blower Assembly Removal
72
Blower Wheel Removal
72
Blower Wheel Installation
73
GHS Blower Assembly Installation
73
Adjustments
74
Safety Switches
74
Steering Levers
74
Blade Clutch (PTO)
75
Clutch Engagement/Belt Tension
75
Clutch Disengagement/Brake Action
76
Stop Block Eccentric Adjustment
77
Clutch Idler Pulley Travel Adjustment
77
Blade Brake Band Adjustment
77
Transmission Control
78
Set Forward Travel Limit (Stop)
78
Steering Lever End Play Adjustment
79
Neutral Function Adjustment
79
Straight Ground Travel Adjustment
80
Forward Speed Control Friction Lock
80
Tilt-Up Deck Adjustable Stop
81
Carburetor
81
Engine Idle Adjustment
81
GHS "Full" Signal Horn with Grass-Pak® Switch
82
Troubleshooting (When Horn Fails to Operate)
82
Electrical System
83
Circuit Breakers
83
Wiring Diagram - Model MC
84
Operator's Notes
85
Warranty
87
