Walker MC (18 HP) User Manual

79
Maintenance Instructions
ADJUSTMENTS/
ELECTRICAL SYSTEM

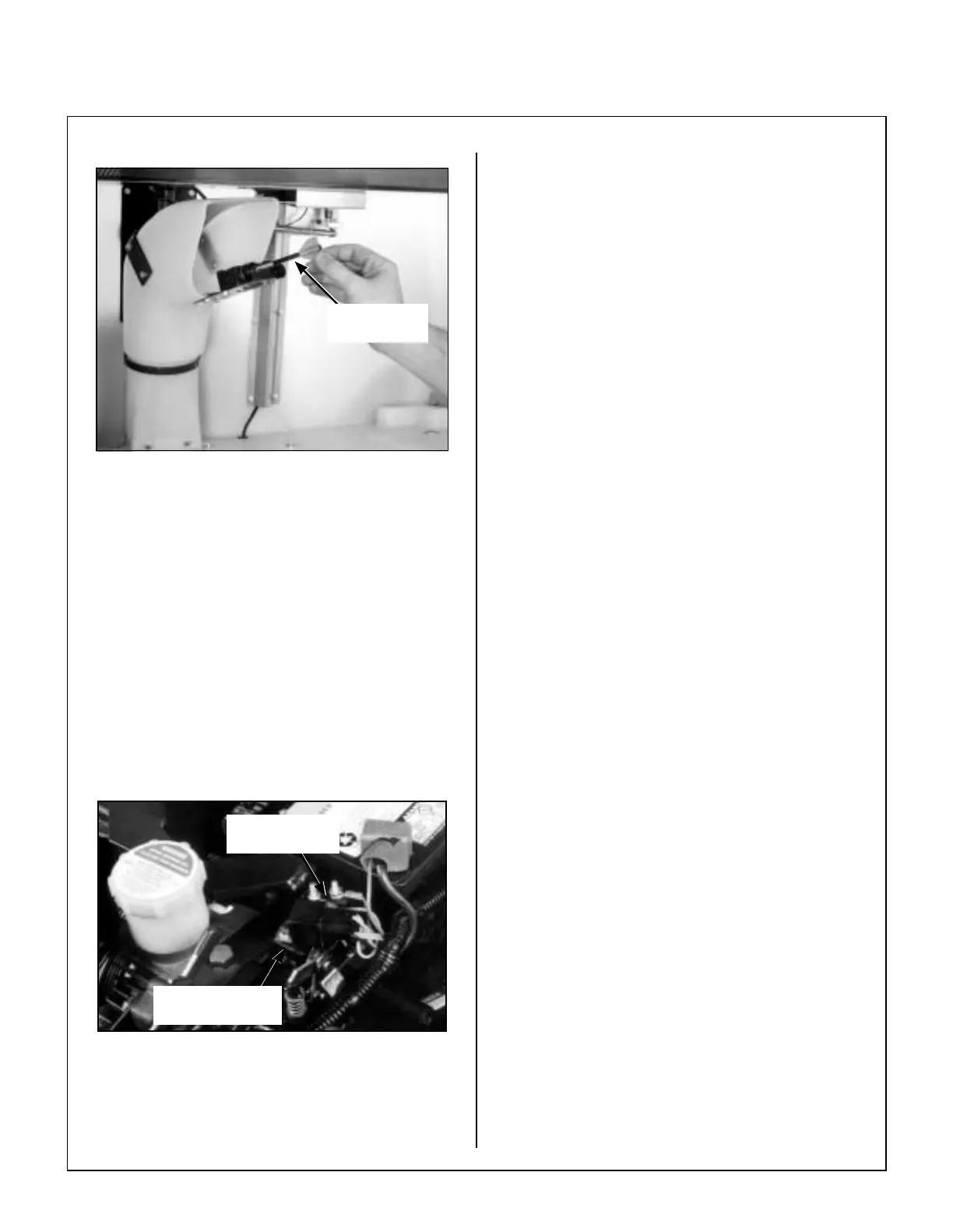

Checking the Grass-Pak
®
Switch
ELECTRICAL SYSTEM
For troubleshooting, refer to Wiring Diagram.
IMPORTANT: Disconnect both battery cables be-
fore unplugging any wiring connectors or making re-
pairs on the electrical system.
Circuit Breakers
A master circuit breaker is mounted on a bracket be-
hind the battery. The circuit breaker may have either
the manual or automatic reset function -- both types
have been used. See Circuit Breaker Location
photo.
Circuit Breaker Location
Grass-Pak
®
Vane Switch
30 Amp
Circuit Breaker
Circuit Breaker
Mounting Bracket
