Walker MTL - Component Identification; TRACTOR COMPONENTS

Component Identification
11
NOTE: Control Identification
shown in Operating
Instructions section.

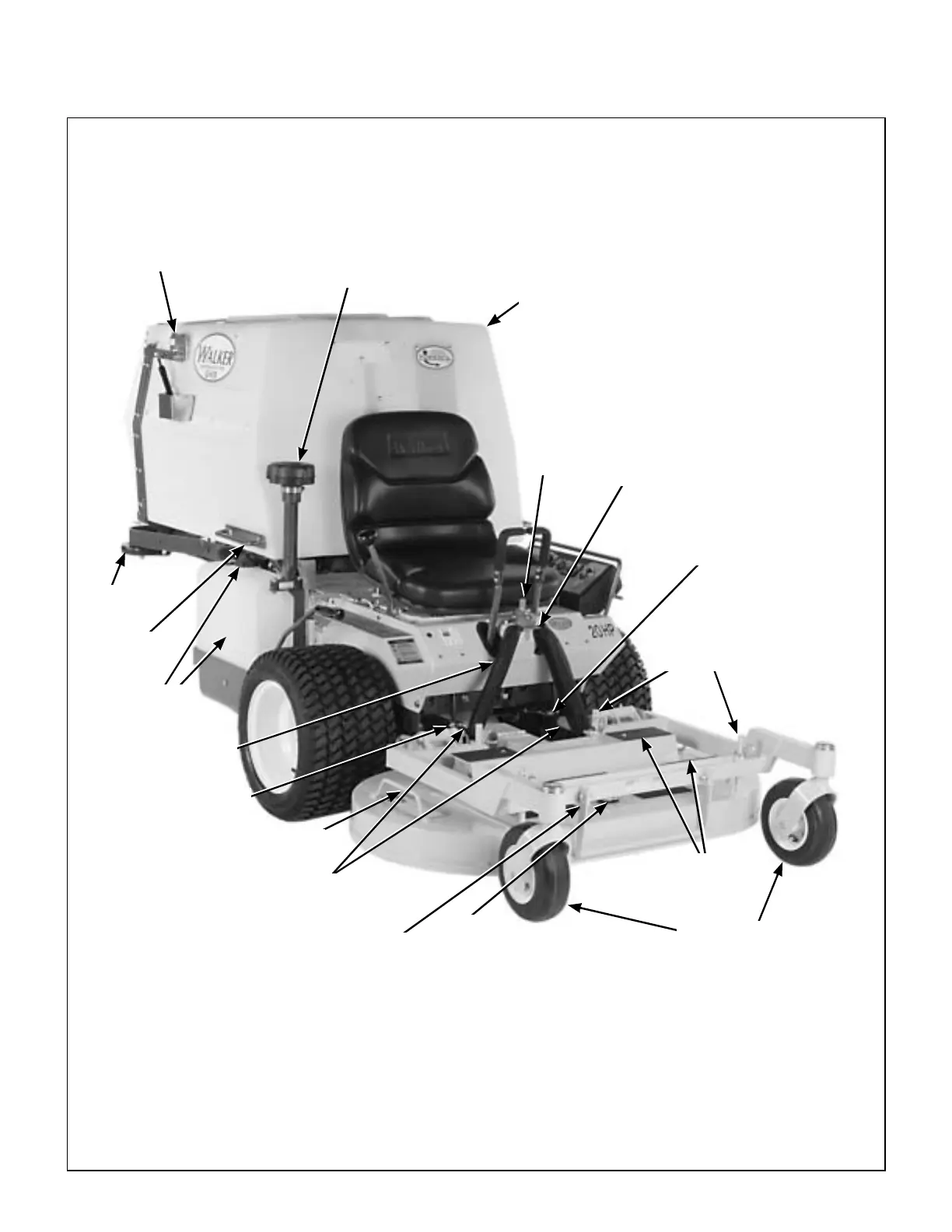

Grass Handling System
9.5 Bushel Catcher (Optional)
7.0 Bushel Catcher Standard
(Not Shown)
Anti-Scuff
Roller
Transmission Control Rod
Adjustment Nut (LH)
Deck
Caster Wheels
Tilt-Up
Deck Handle
Catcher Lift /
Dump Handle
Deck Support Pins
and Height Adjustment
Hitch Pins
Catcher Door
Safety Latch
Spring Clip
Footrests
Counterweight Spring
and Protective Cover
Fuel Tank
and Cap
Tilt-Up
Latch
Tilt-Up
Hook
Deck Lift Handle
(Cutting Height Adjustment)
Turbine
Precleaner
Transmission Control Rod
Adjustment Nut (RH)
Deck Support Arms
Front View and Right Side View
