Safety Instructions
20
Adjacent to Blower Discharge Chute
through Body (5804)
Front Body Adjacent to
RH Steering Lever (7818)
Hydrostat Oil
Reservoir (5810-2)
On Body Adjacent to Clutch
Control Lever (5806)
Right Side of Front Body, Below
Front Body Latch Release (7820)
Rear Cross Member of Front Body (8825)
Rear of Grass Catcher Exhaust Screen (5869)
Engine Shroud (5855)

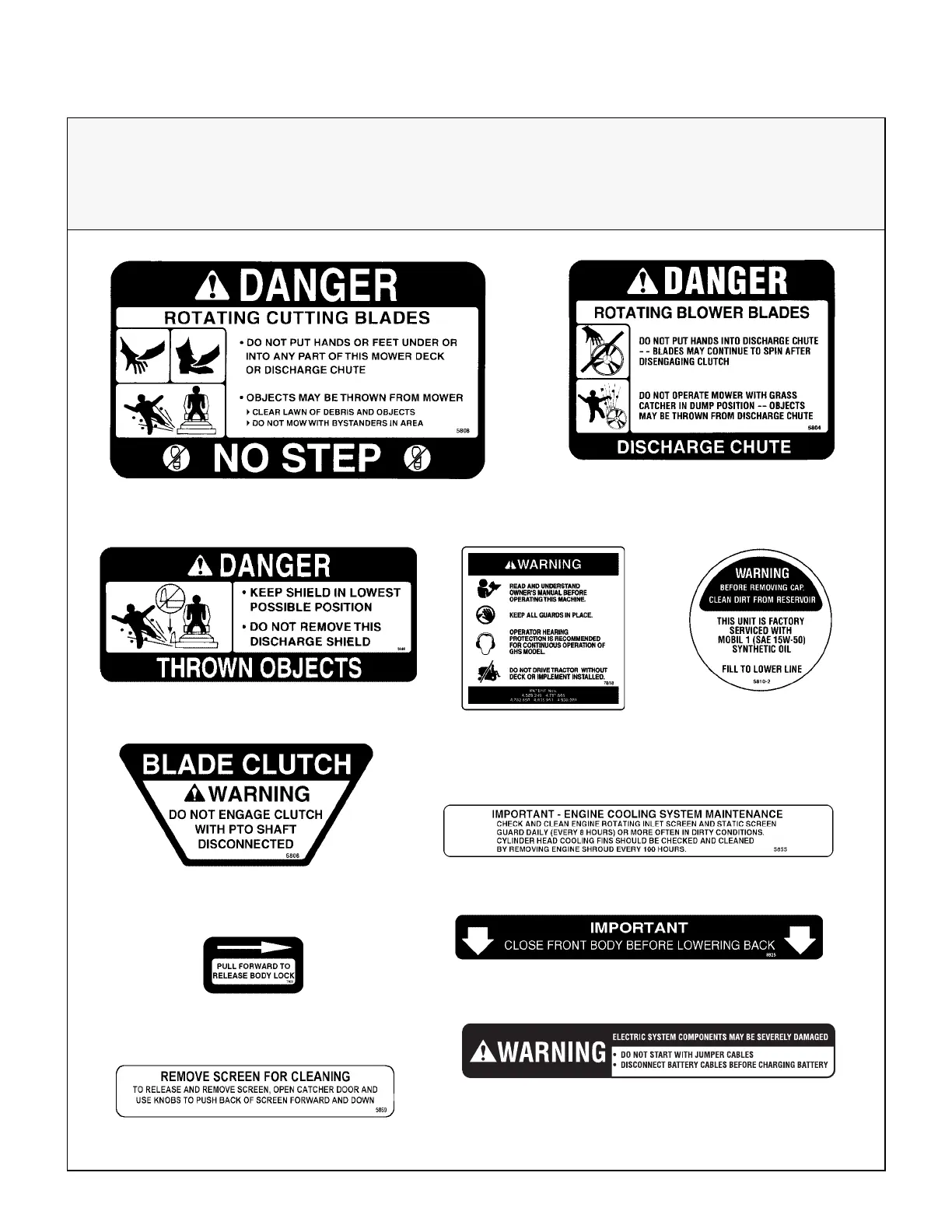

SAFETY, CONTROL, AND INSTRUCTION DECALS
Safety, Control, and Instruction Decals are installed on the machine;
if any are missing, illegible, or damaged, a replacement should be ordered and installed before
putting the machine into operation. The Decal Part Number is listed below and in the Parts Manual.
Each End of Mower Deck (5808 All Decks Except 52, 56, 74)
(5808-1 52, 56, 74 Decks)
SD Deck Discharge Shield (5848)
Battery Hold-Down Bar (MTEFI only, 5844-2)
