Safety Instructions
21
Instrument Panel MT (8823-2), MTEFI (8823-3), MTL (8823-4)
Fender, RH Side (7802)
Catcher Door Hinge Bar,
LH and RH Sides (5868)
Left Side of Operator Seat (7819)
Right Side, Below Operator Seat (7809)
Top of Blower Housing (5819)
Deck Carrier Frame (8653)
Jackshaft Support Adjacent
to Dipstick (7827)
Gear Axle (5810-1)
Deck Gearbox Cover (5807-3)
On Engine (6810)
Left Side of Operator Seat (8819)

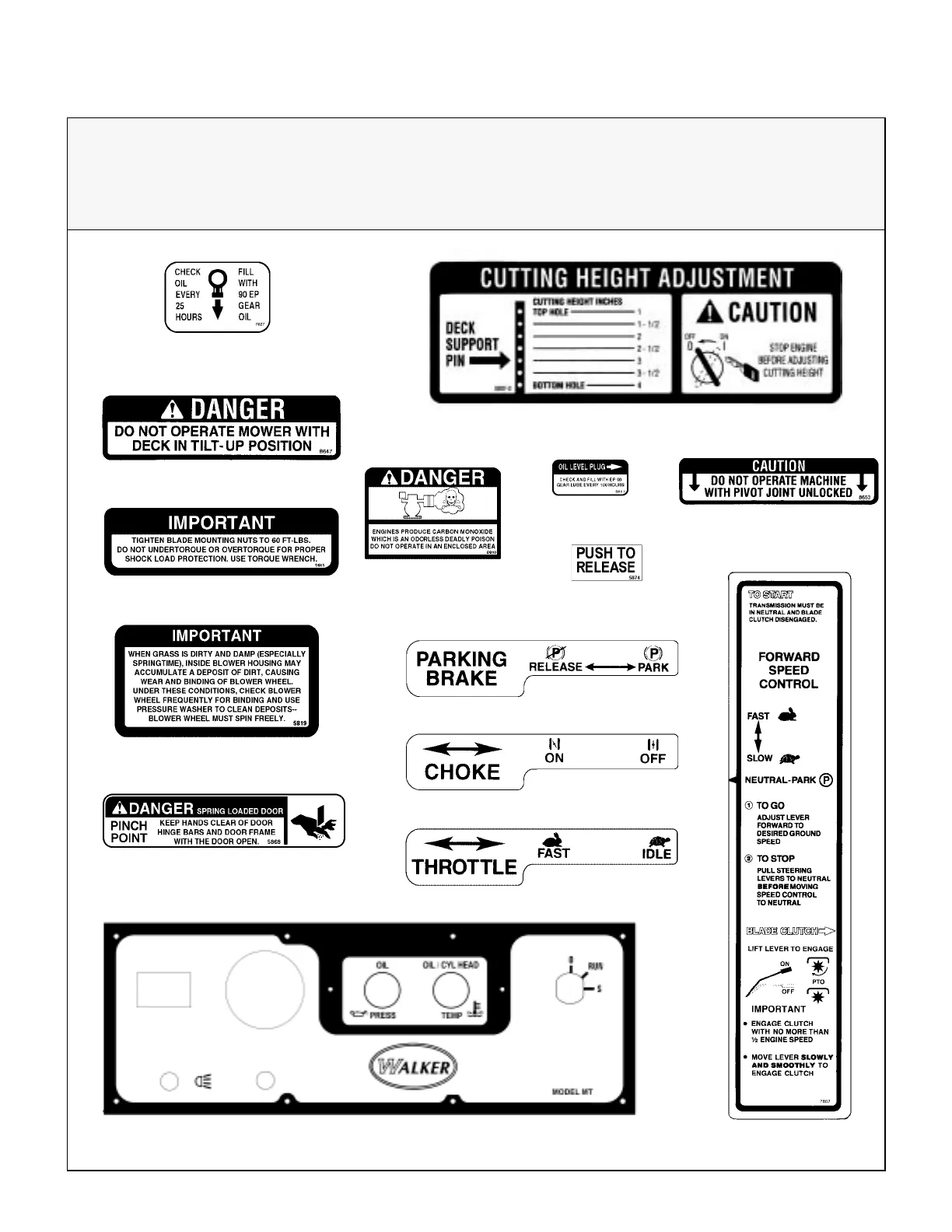

SAFETY, CONTROL, AND INSTRUCTION DECALS
Safety, Control, and Instruction Decals are installed on the machine;
if any are missing, illegible, or damaged, a replacement should be ordered and installed before
putting the machine into operation. The Decal Part Number is listed below and in the Parts Manual.
Catcher Safety Latch,
RH Side (5874)
Deck Carrier Frame (5865)
Deck Carrier Frame (8647)
