Walker MTL - ENGINE COMPARTMENT COMPONENTS

Component Identification
13
Air Restriction Indicator
Air Intake Hose
Muffler Grass
Shield
Throttle and
Choke Linkage
Oil Dipstick/Oil Fill
Rubber Bumper
(Catcher Support)
Muffler
20 Amp Fuse
(Starter Solenoid)
GHS Blower
RH Hydrostatic
Transmission
PTO
Clutch Lever
RH Transmission
Lockout Lever
PTO Gearbox
Dipstick
Jackshaft
Positive (+)
Battery Cable
Battery
Donaldson Air Cleaner
LH Transmission
Lockout Lever
LH Hydrostatic
Transmission
Precleaner
Tube
Fuel Tank
Air Cleaner
Cover
Fuel Filter
Fuel Pickup
Line
Neutral Safety
Switch
Negative (-)
Battery Cable
Model MT
30 Amp
Circuit Breaker
Turbine
Precleaner
Fuel Pump
Muffler Heat
Shield
Air Intake
Plenum

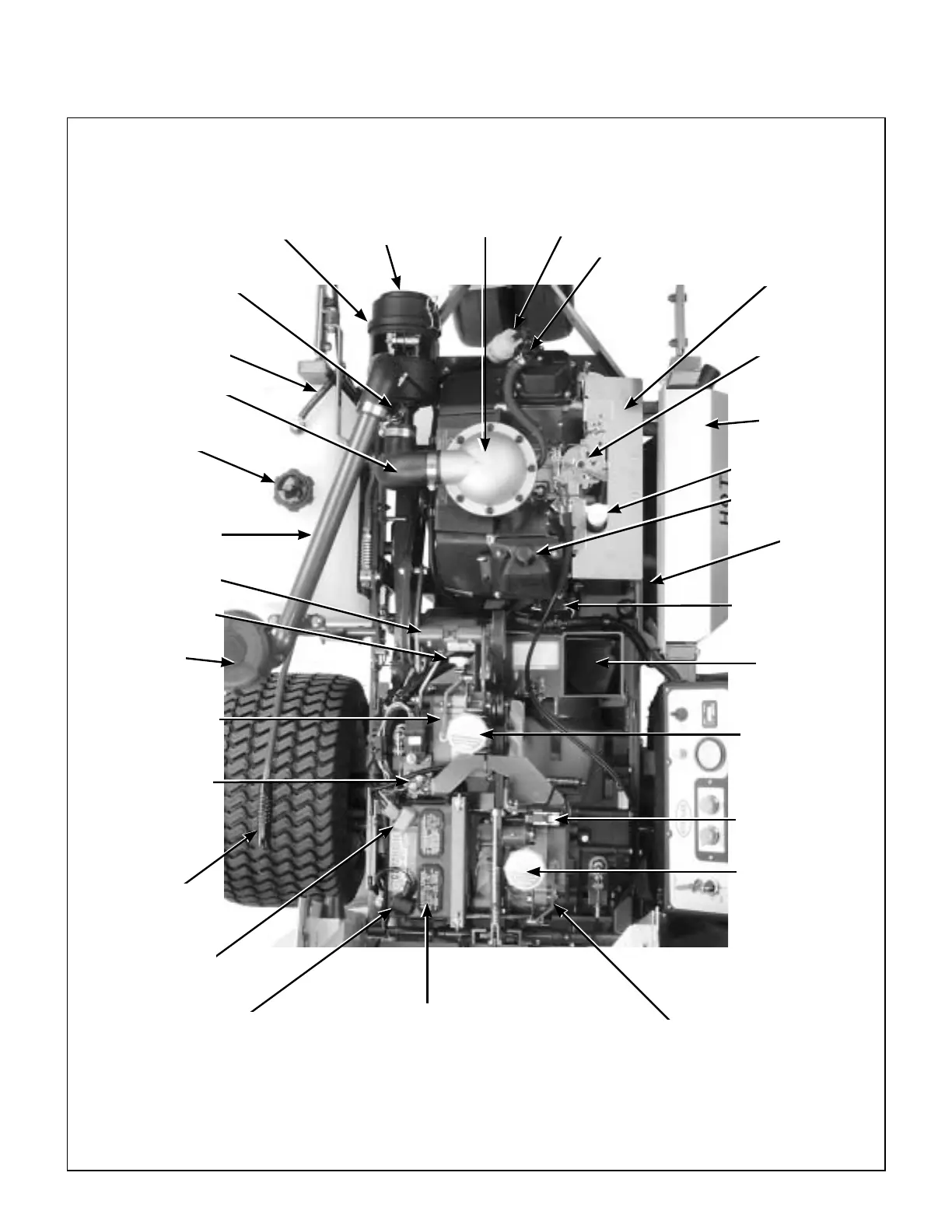

Top View (Engine Compartment) Model MT
