Operating Instructions
31

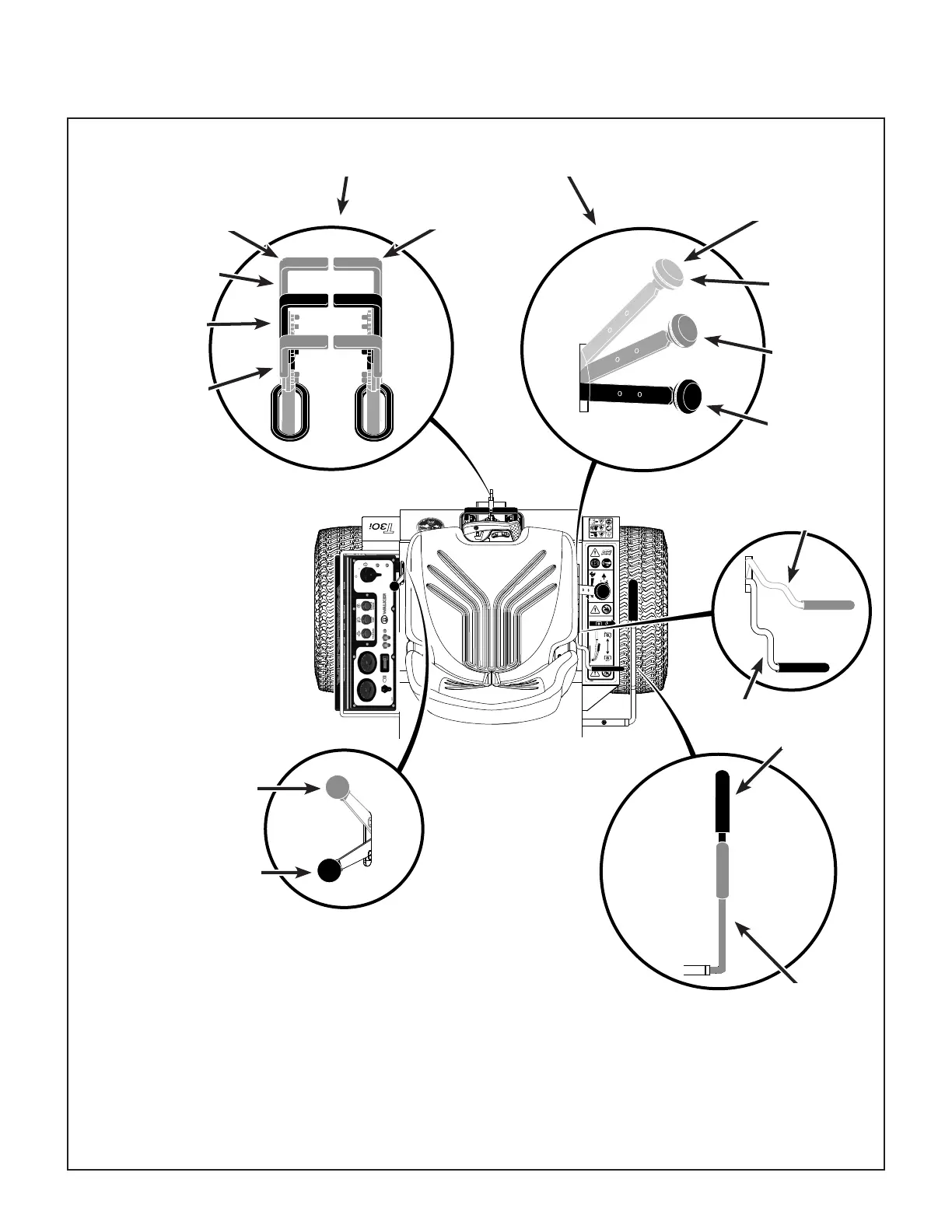

Operating Controls (T
op View from Drivers Point of V
iew)
1.
2.
P
ARKING
BRAKE
THROTTLE
The Forward Speed Control also Establishes the
Neutral-Park
Position of the Steering Levers
FORW
ARD SPEED
CONTROL
LEVER (FSC)
BLADE
CLUTCH
(PTO)
Pull Up to Engage
Neutral-Park
Position
Forward Position
(No Control Change)
Engaged
Position
LEFT WHEEL
STEERING LEVER
Full Forward
Ground Speed
Position
Intermediate
Ground Speed
Position
Reverse Drive
Wheel Motion
Position
Neutral-Park
Position
Disengaged
Position
Engaged
Position
Disengaged
Position
Fast
Throttle
Position
Idle
Position
RIGHT WHEEL
STEERING LEVER
34
36
Table of Contents
Table of Contents
3
General Information
5
Highlighted Information
5
Glossary
5
Identifying Number Locations
5
Engine Serial Number Location
6
Servicing of Engine and Drivetrain Components
6
Specifications
7
Engine
7
Electrical System
7
Transmission
8
Blade Drive
8
Tire Size
8
Tire Pressure
8
DIMENSIONS (Tractor and Mower)
9
Ghs System
9
Mower Deck
10
Drive Belts
10
Seat
10
Frame/Body Construction
10
Component Identification
11
Safety Instructions
14
Before Operating
14
Operating
16
Maintenance
18
Safety, Control, and Instruction Decals
19
Assembly Instructions
23
Setup Instructions
23
Tire Installation (Tractor)
23
Battery Service
23
Wet Battery Service
23
Dry Battery Service
24
Battery Charging
24
Battery Installation
25
Mower Deck Assembly
25
Deck Caster Wheels Installation
25
Deck Discharge Chute Installation
25
Deck Discharge Deflector Shield Installation
26
PTO Shaft Guard Installation
26
Tilt-Up Roller Wheel Installation
26
Mower Deck Installation on Tractor
27
Deck Installation
27
Deck Leveling
29
Preoperating Checklist
30
Operating Instructions
33
Control Identification, Location, and Function
33
Operating Controls
33
Engine Throttle
33
Forward Speed Control (FSC)
34
Steering Levers
34
Blade Clutch (PTO)
34
Parking Brake
34
Front Body Latch Release
36
Transmission Lockout Levers
36
Suspension Seat
37
Instrument Panel
39
Hourmeter
40
Voltmeter
40
Oil Pressure Warning Light/Horn
40
Water Temperature Warning Light/Horn
41
Water Temperature Gauge
41
Engine Service Light
41
Ignition Switch
41
Light Switch (for Optional Lights)
41
Warning Horn
41
Circuit Breakers
41
Starting the Engine
42
Adjusting Ground Speed and Steering
42
Engaging the Blade Drive
44
Stopping the Machine
45
Adjusting Cutting Height
46
Transmission Lockout
46
Recommendations for Mowing
47
Recommendations for Tilt-Up Deck Operation/Transport
50
Grass Handling System (Ghs)
51
General Information
52
Clogging Checklist
53
Using the Tilt-Up Deck
54
Using the GHS Catcher
54
Powerfil
54
Full" Signal Horn
54
Cleaning the GHS Exhaust Screen
55
Dumping the Catcher
55
Tailgate Dumping
55
Using the Dump Bag
56
Power Dump Option
57
Hi-Dump ® Option
57
Maintenance Instructions
61
Maintenance Schedule Chart
61
Important Tips for Care of the Kohler Engine
62
Fuel System
62
Starting/Stopping
62
Cooling System
62
Air Cleaner System
62
Oil
62
Lubrication
63
Engine Oil
63
Engine Break-In Oil
63
Checking Engine Crankcase Oil Level
63
Changing Engine Crankcase Oil/Oil Filter
64
Mower Deck Gearbox Lubrication
64
DS52 or DS62 Mower Deck Lubrication
65
Mower Deck Spindle Lubrication
65
Tractor PTO Gearbox Lubrication
66
Checking Gearbox Oil Level
66
Changing Gearbox Oil
66
Gear Axle Lubrication
67
Hydrostatic Transmission Fluid
67
Checking Hydrostatic Transmission Fluid Level
67
Grease Fitting and Oil Point Lubrication
67
Cleaning
70
Engine Air Cleaner System
70
Turbine Precleaner
70
Donaldson Radialseal™ Air Cleaner
71
Engine Cooling System
73
Radiator Screen and Cooling Fins
73
Flushing Radiator and Changing Coolant
73
Grass Buildup in Mower Deck Housing
73
GHS Blower
74
GHS Exhaust Screen
75
Hydrostatic Transmission Cooling Fins
75
Checking/Servicing
76
Engine Cooling System
76
Coolant Level
76
Security of Air Filtration Components
76
Battery
77
Electrolyte Level
77
Cleaning the Terminals
77
Charging the Battery
77
Tire Pressure
78
Wheel Bolt Torque
78
Sharpen Mower Blades
78
Drive Belts
79
Mower Deck Gearbox Oil Seals
79
Spark Plugs
79
Ignition Wires
79
Fuel Lines and Clamps
79
Engine Starter
79
Transmission Control Setting
80
Neutral-Park
80
Straight Ground Tracking
80
Radiator Hoses and Clamps
80
Blade Brake Action
80
PTO U-Joints
80
Safety Switch System
81
Forward Speed Control Friction Lock
81
Replacing/Repairing
82
Drive Belts
82
Engine PTO Drive Belt
83
Jackshaft Drive Belt
84
GHS Blower Drive Belt
85
Hydrostatic Ground Drive Belt
86
Fuel Filter
87
Blade Overload Shear Bolts
87
Mower Blades
88
Adjustments
89
Transmission Control
89
Set FSC Travel Limits (Stop)
89
Set Maximum Forward
90
Travel Speed (Stop)
90
Neutral Function Adjustment
90
Straight Ground Travel Adjustment
91
Blade Clutch (PTO)
92
Clutch Engagement/Belt Tension
92
Clutch Disengagement/Brake Action
93
Stop Block Eccentric Adjustment
94
Clutch Idler Pulley Travel Adjustment
94
Blade Brake Band Adjustment
95
Forward Speed Control Friction Lock
96
Steering Handles
97
Tilt-Up Deck Adjustable Stop
97
GHS "Full" Signal Horn Adjustment (When Horn Sounds at Wrong Time)
98
Warranty
99
