English - 7 -

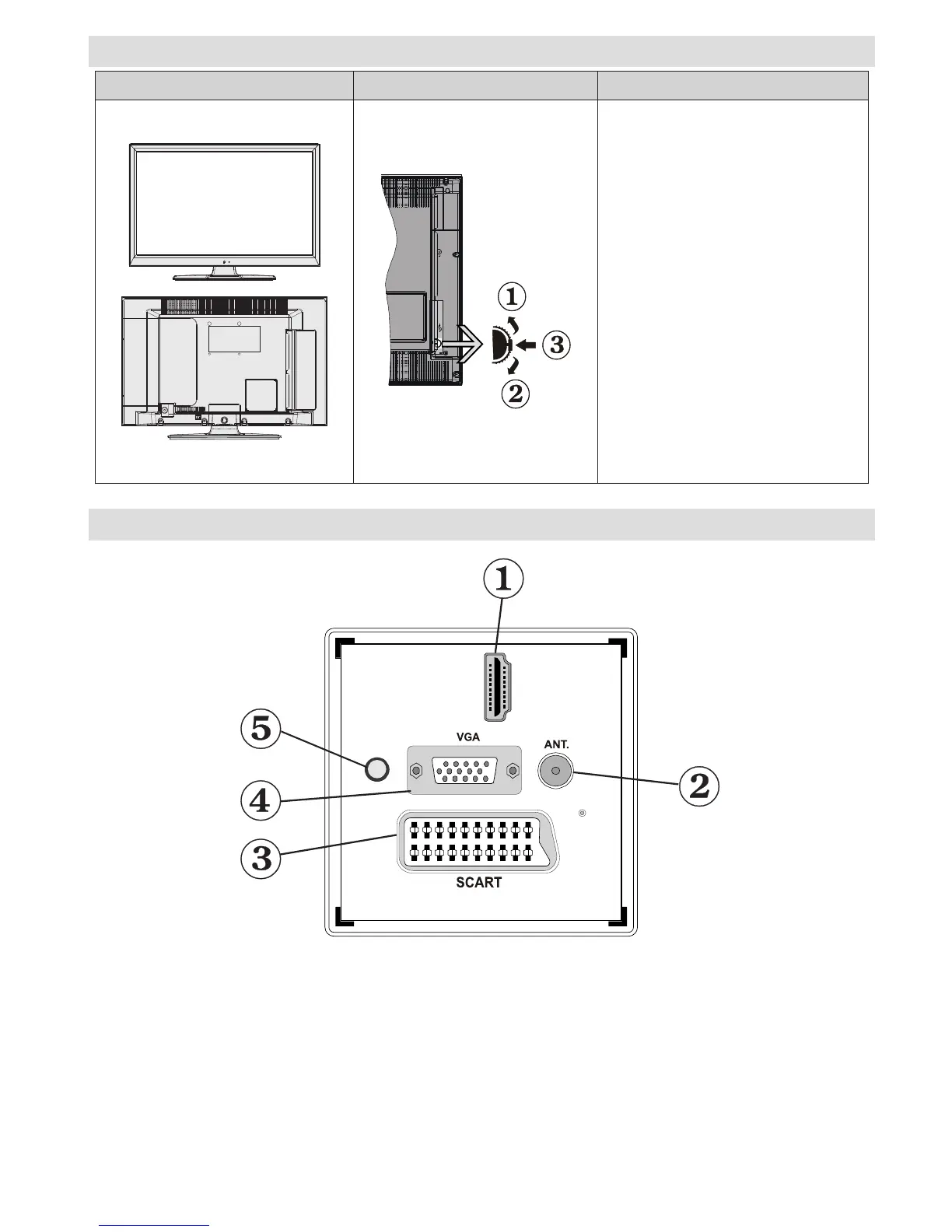

Viewing the Back side Connections
HDMI 1
SPDIF
Coax.OUT
1. HDMI 1: HDMI Input
HDMI Inputs are for connecting a device that has an HDMI socket. Your LED TV is capable of
displaying High Denition pictures from devices such as a High Denition Satellite Receiver or DVD
Player. These devices must be connected via the HDMI sockets or Component Socket. These sockets
can accept either 720p or 1080i signals. No sound connection is needed for an HDMI to HDMI
connection.
2. RF Input connects to an aerial antenna system.
Note that if you use a decoder or a media recorder, you should connect the aerial cable through the device
to the television with an appropriate antenna cable, as shown in the illustration in the following pages.
3. SCART input or output for external devices. Connect the SCART cable between SCART socket on TV and
SCART socket on your external device (such as a decoder, a VCR or a DVD player).
LED TV and Operating Buttons
FRONT and REAR VIEW Control switch VIEW Control Switch
1. Up direction
2. Down direction
3. Programme/Volume / AV
/ Standby-On selection
switch
Note:You can move the switch,
upward or downward to change
the volume. If you want to change
channels, press the middle of the
switch once (Position 3) and then
move upward or downward. If you
press the middle of the switch once
more, source OSD will be displayed.
If you press the middle of the switch
and hold about a few seconds, the
TV will switch to standby mode. Main
menu OSD cannot be displayed via
control buttons.
To Next Page
