Controls
FX66, FX85, FX110, FX140
PTO Skidding Winch
26
5.6 Choker Chains
FX85, FX110 and FX140 model winches are equipped with two
choker chains. The heavy duty 5/16" choker chains are 7-1/2 ft
(2.3 m) long with a steel probe for sliding under logs.
• Push the probe end of the choker chain under the log.
• Pull the ends together and put the hook end over the choker
chain.
• Attach the probe end of the choker chain to the keyhole
slider on the rope.
00501

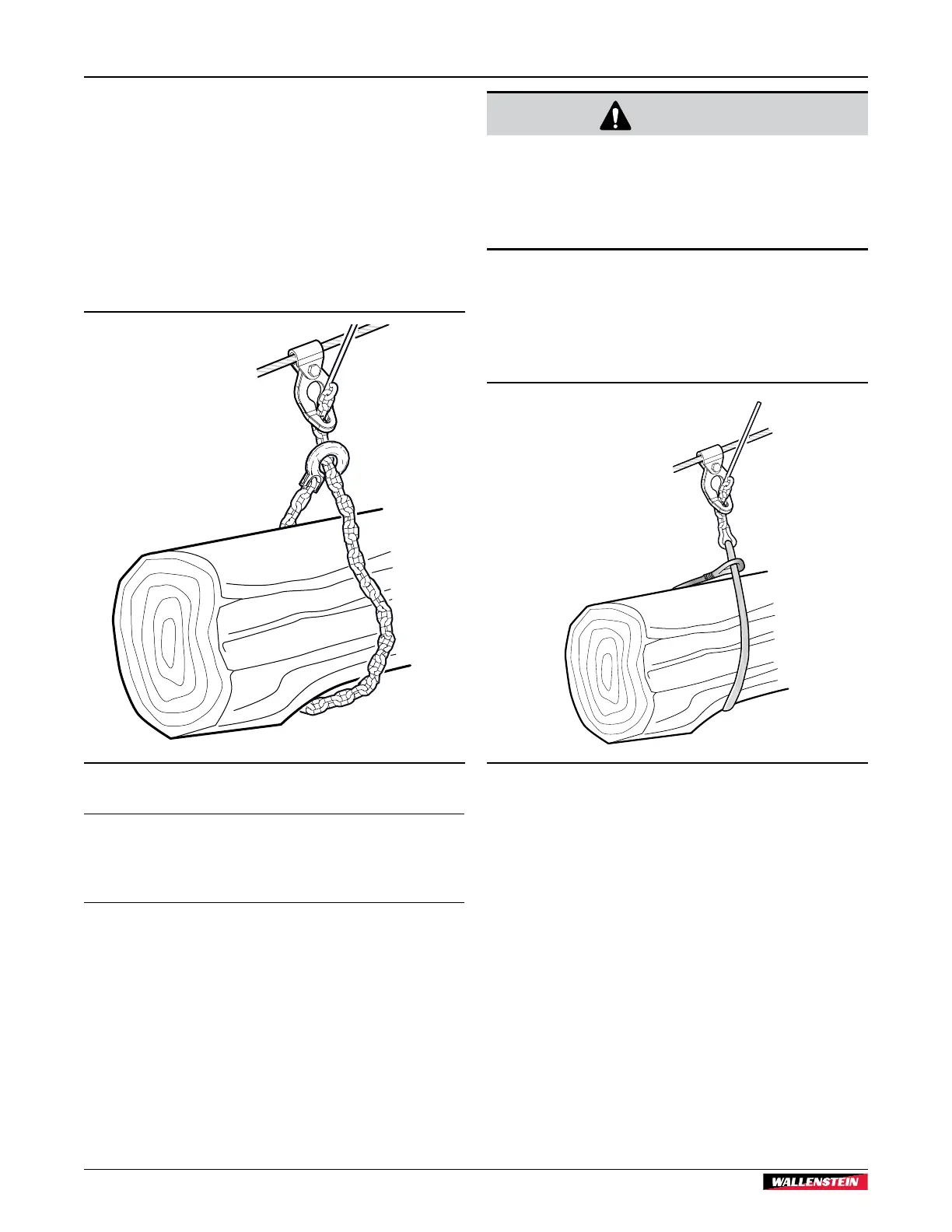

Fig. 29 – Choker Chain
IMPORTANT! If the winch is equipped with a synthetic rope,
always use a choker chain. NEVER wrap the rope around the
object or hook the forged end back onto the rope. Damage to
the rope results that is not covered by warranty.
5.7 Synthetic Chokers
Synthetic chokers are available as an accessory. These chokers
weigh less than the steel chain chokers and are easier to handle,
however are more susceptible to abrasion.
Before each use, check the condition of the choker for visible
damage. Replace if kinked, frayed, has knots, cuts, or any
broken strands. Failure to replace could result in breakage.
WARNING!
Synthetic rope that fails under tension can snap
back with great force causing injury or death.
Avoid sudden jerks, quick starts or stops. Start
slowly and smoothly. Replace if kinked, badly
frayed, has knots, cuts, or broken strands.
W095
• Push the probe end of the choker under the log.
• Pull the ends together and push the probe end through the
loop.
• Attach the chain on the probe end to the keyhole slider on
the cable.
01606
Fig. 30 – Synthetic Choker
• A synthetic choker is very susceptible to damage from
rubbing up against or sliding along rough ground or
surfaces.
• Synthetic choker strength can be reduced if subjected to
sudden jerking, or quick starts and stops. Avoid high shock
loads on the rope by starting slowly and smoothly.
5.8 Lower Snatch Block
The FX85, FX110 and FX140 models have a lower snatchblock.
The main use of the lower snatchblock is to lower the pulling
point, and make skidding more stable. This enables larger loads
to be skidded. The snatchblock has three positioning holes on
the FX110 and FX140.
