S-Cape
™
2MR Hand Control Operation Guide 99300906
The three step procedure below is required to program 2 hand controls to operate 1 bed.
Before beginning, make certain the bed is plugged into a working grounded electrical outlet.
If programming fails, initiate the programming procedure a second time.
S-CAPE
™
2MR PROGRAMMING 2 hand controls - 1 bed
POS 1
BUTTON
TRANSMISSION
INDICATOR
LIGHT
FIGURE 3
HEAD MASSAGE
ON/OFF
BUTTON
STEP 1
The bed will be equipped with either a
power down box or J box receiver unit
(FIGURE 2). Locate the receiver unit for the
bed and press the learn button for 1 second
and release. Note: If you experience
difficulty locating or reaching the learn
button on a J box equipped adjustable bed,
refer to J Box Programming on page 5.
STEP 2
On hand control 1, simultaneously press
and hold the POS 1 and the head massage
on/off buttons (FIGURE 3). The
transmission indicator light will flash
slowly and then flash rapidly to indicate
programming mode. Continue to hold for 5
seconds and then release the buttons.
HAND
CONTROL 1
HAND
CONTROL 2
STEP 3
Repeat Step 1 and Step 2 with hand control
2.
Two hand controls are now programmed to
operate one bed.

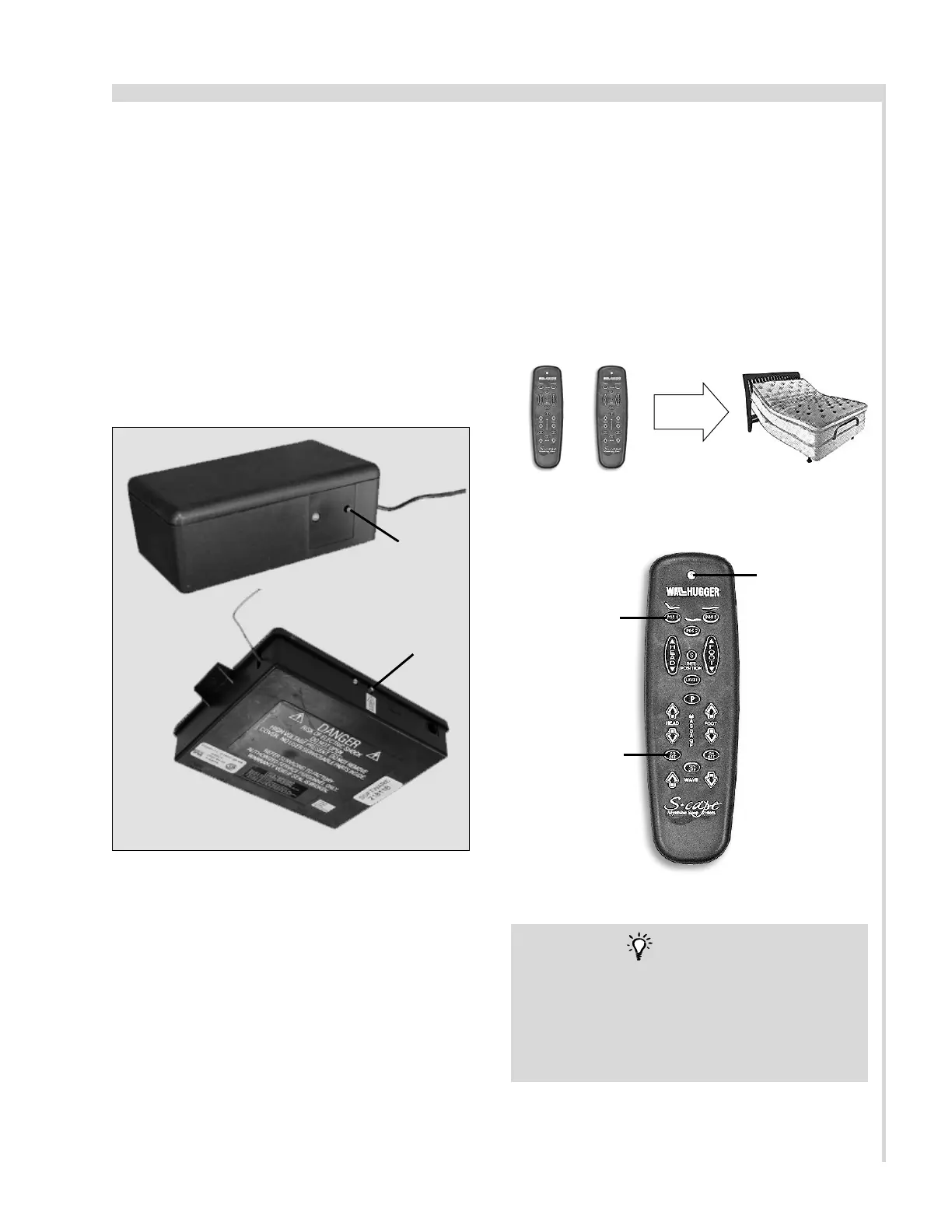

J BOX
FIGURE 2: Power down box and J box receiver units.
LEARN
BUTTON
LEARN
BUTTON
POWER
DOWN BOX
POWER DOWN
BOX RECEIVER
UNIT IS NOT
MOUNTED TO
BED FRAME.
J BOX RECEIVER
UNIT IS MOUNTED
TO THE BOTTOM
SIDE OF THE
BED FRAME.
7
NOTE
OPERATE ONLY ONE (1) HAND CONTROL AT A
TIME. OPERATING TWO (2) HAND CONTROLS
AT THE SAME TIME WILL MOMENTARILY
BLOCK BOTH RF SIGNALS AND PREVENT BOTH
CONTROLS FROM FUNCTIONING.
