3.0 TECHNICAL INFORMATION
2
TOR.VM.--.M.A.0518.EN Issue: A
05.18
9
3.1 General description of the valve
The VM valve opens or closes the passage of material through rubber sleeve that closes due to the action of
the control pressure. The connection to the process occurs through the two anges.

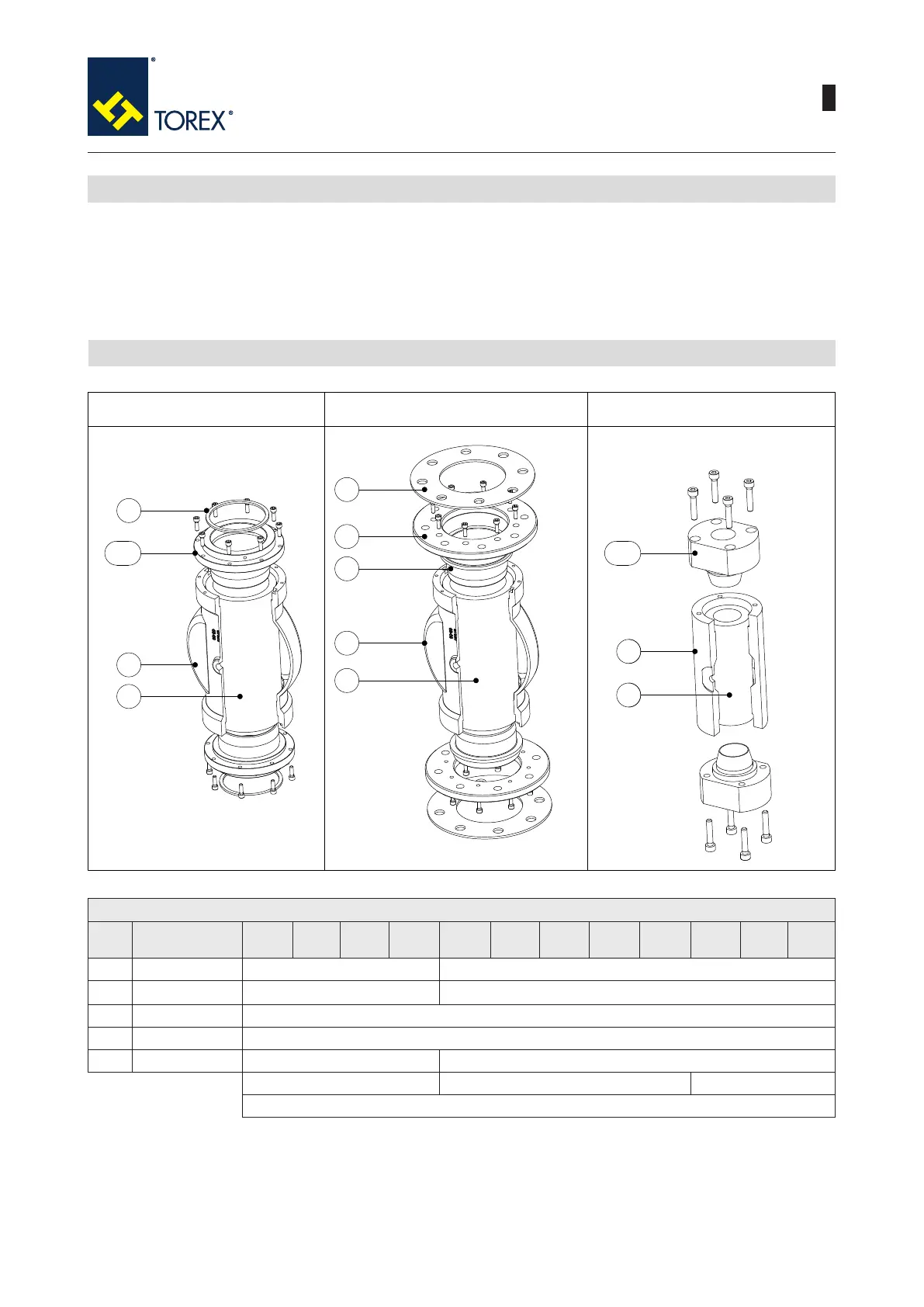

3.2 Main components
Sizes and material
Item Component 13 20 25 32 40 50 65 80 100 125 150 200
1 Flange Polyamide Aluminium
2 Seal NBR (black) / SBR (white)
3 Casing Aluminium
4 Sleeve NR (Standard) / NR (Food Grade)
5 Bushing Polyamide Aluminium / SS 304 / 316 / Hardened
C A,B A
Conguration
1+5
2
3
4
2
1
3
4
5
1+5
3
4
A B C
