Wangen KL Series User Manual

Instruction Handbook KL
Chapter 2
BA KL V11 en 10/2014 page 2-2

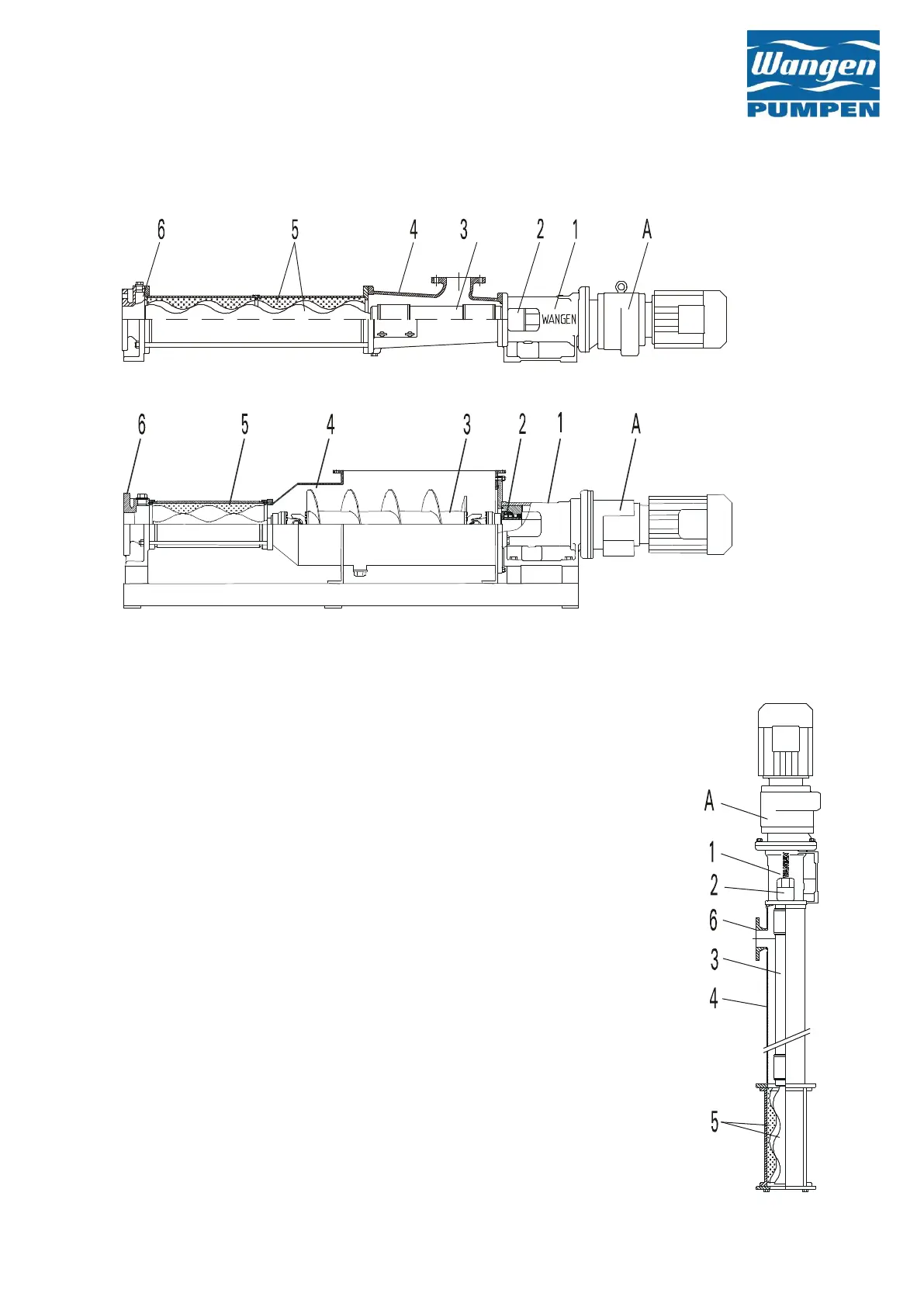

2.2 Pump set-up KL 30 – KL 100
Suction pump
Hopper pump
A Drive Unit
1 Bearing Chair
2 Sealing Unit
3 Joint (by Hopper Pump with Feed Screw)
4 Suction Housing / Hopper Housing / Immersion Tube
5 Pump Set (Rotor/Stator)
6 Discharge Nozzle / Outlet Nozzle
Vertical pump

Wangen KL Series Specifications

General

Brand	Wangen
Model	KL Series
Category	Water Pump
Language	English
