3.2.2 Transport of vertical pumps
Possible damage
 Never use the eyebolts of the drive unit to lift the entire assembly. These attachment
points are to be used only for the engine and/or transmission!
 Basically, the pump is to be transported via the hanging bracket.
 In cases in which the pump has no hanging bracket, it must be transported properly using
suitable load handling attachments (ropes, chains) as shown in Figures 3-4 and 3-5.

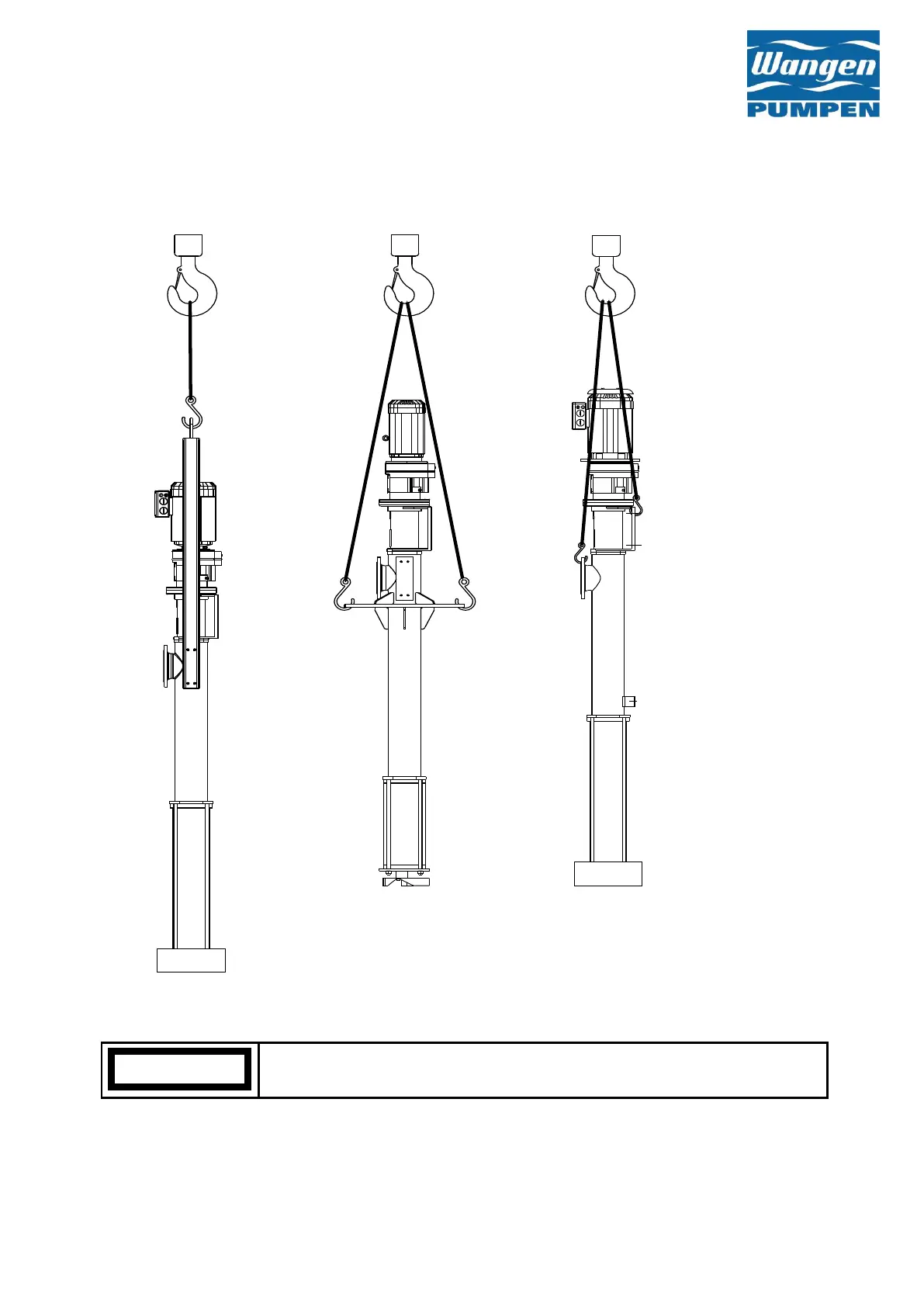

Fig. 3-3 KLT with hanging bracket Fig. 3-4 KLT with mounting flange Fig.3-5 KLT with console on immersion tube
